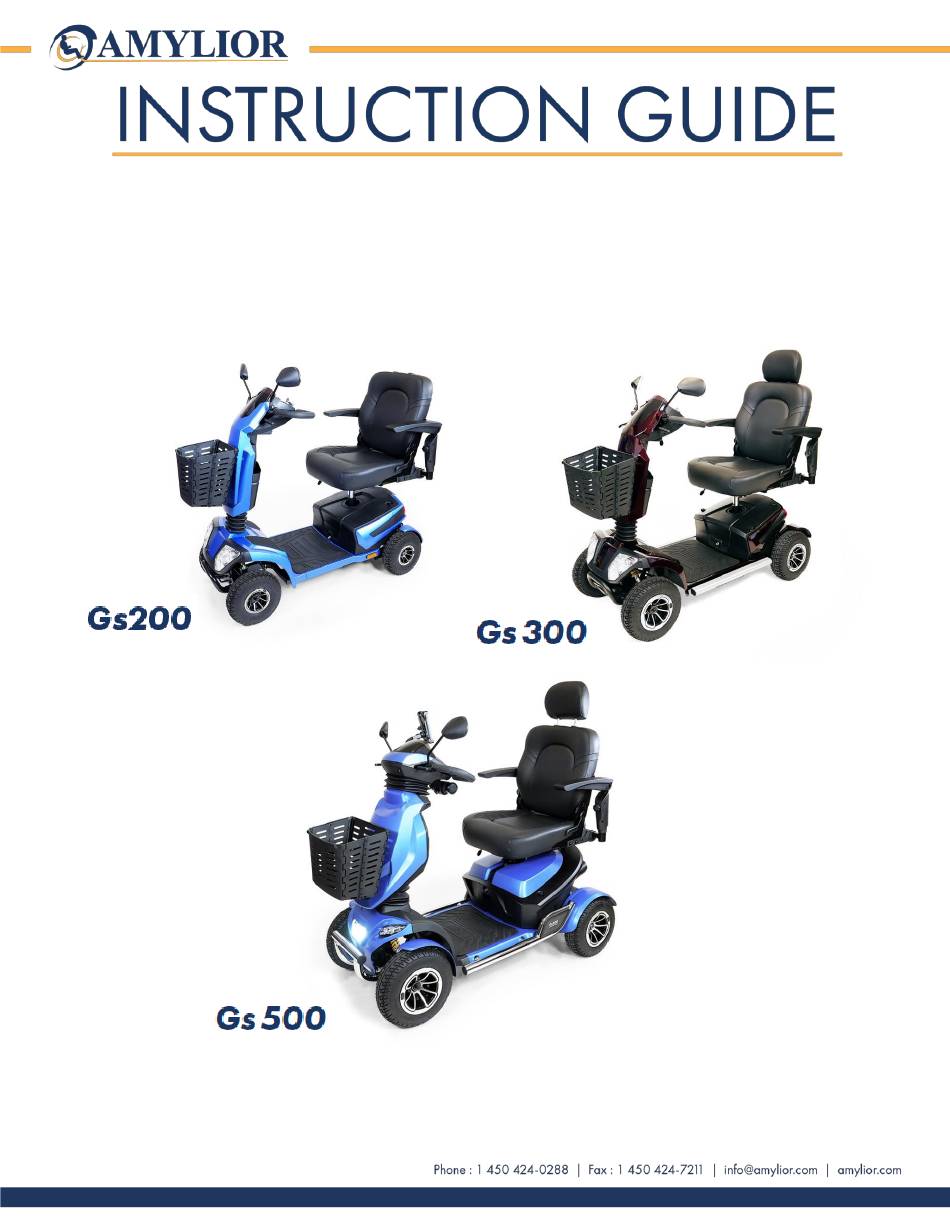

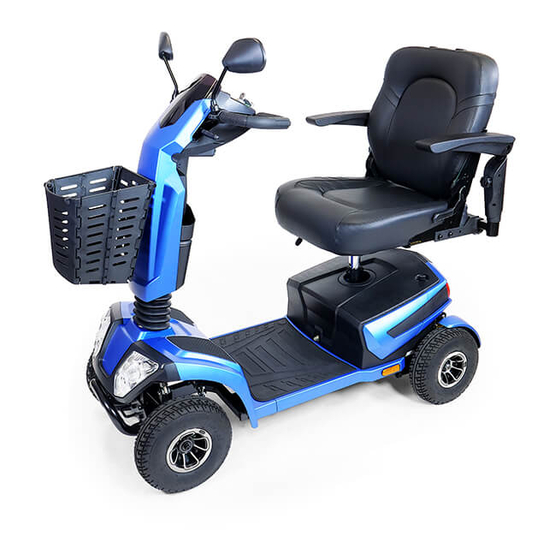

- Page 1 Gs200 / Gs300 / Gs500 ASSEMBLY FOR AUTHORISED DEALER Use the following instructions to assemble Gs200, Gs300 or Gs500 scooters for a customer. IG - PD-A20607 - Gs200/300/500 - March 2021 - R01...
- Page 2 Slide armrest into the rear square tube on the seat frame. b) Place armrest as close as possible to the backrest without touching it. c) Tighten securely using the nobs and turning clockwise. IG - PD-A20607 - Gs200/300/500 - March 2021 - R01...
- Page 3 Using a 5 mm Allen key remove the two top screws on the backrest supports. b) Center the storage compartment bracket on the backrest using the oblong holes. Put the original screws back in their location and tighten securely. IG - PD-A20607 - Gs200/300/500 - March 2021 - R01...
- Page 4 Slightly bend the metal ring that connects to the clamp. • Place the ring in between the clamp and the rod’s locknut. • Install on the right-hand side unless otherwise specified. IG - PD-A20607 - Gs200/300/500 - March 2021 - R01...
- Page 5 Stick both foam strips on the sound bar mount (1002640) as shown. c) To install mount, use 2 screws (E00110) and 2 spacers (for Gs200/300 only) 1002716. d) Remove both original screws from handlebar. IG - PD-A20607 - Gs200/300/500 - March 2021 - R01...
- Page 6 To install mount, both spacers (1002716) are only used for Gs200 and Gs300 scooters, but both screws (E00110) are use for all 3 scooters, as shown below. Gs200 et Gs300 Gs500 f) Place sound bar on mount g) Insert the tightening screw in the mount’s oblong slot, screw into sound bar and tighten in desired position.
- Page 7 Using a 5 mm Allen key, remove original screw from the seat frame as shown below. Place the belt’s ring onto the screw and securely tighten screw onto the frame. 9. TIRES Inflate 4 tires at 40 PSI IG - PD-A20607 - Gs200/300/500 - March 2021 - R01...
- Page 8 Align headrest posts with the holes on the top of the backrest and push down. Note : The scooters’ Owner’s Manual are all on Amylior’s website under Products / Gs Series Scooters. IG - PD-A20607 - Gs200/300/500 - March 2021 - R01...
