Gs100
ASSEMBLY FOR AUTHORISED DEALER
Use the following instructions to assemble the Gs100 scooters for a customer.
1. VERIFYING THE TILLER'S MOVEMENT
Verify that the grooves on the hinge fit into each other and make sure that the tightening handle is tight.
1
IG - PD-A20607 - Gs100 - March 2021 - R01
Advertisement
Table of Contents
Related Manuals for Amylior Gs100
Summary of Contents for Amylior Gs100

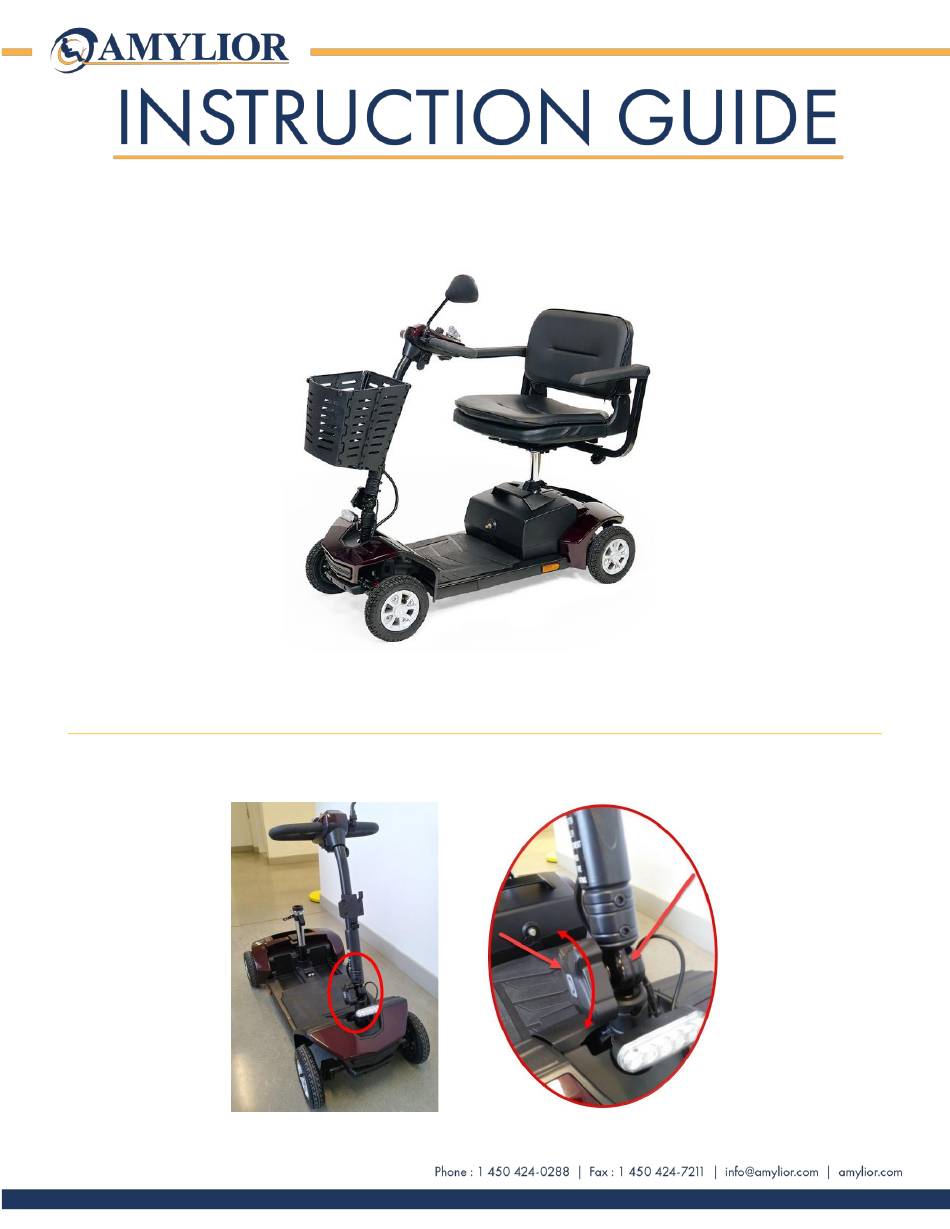

- Page 1 Gs100 ASSEMBLY FOR AUTHORISED DEALER Use the following instructions to assemble the Gs100 scooters for a customer. 1. VERIFYING THE TILLER’S MOVEMENT Verify that the grooves on the hinge fit into each other and make sure that the tightening handle is tight.
- Page 2 2. UNLOCKING THE TILLER a) Open the cover located at the base of the tiller. b) Press the button. c) Turn the button counterclockwise. Close the cover. IG - PD-A20607 - Gs100 - March 2021 - R01...
- Page 3 Allow the front part to lower itself onto the rear train. e) Gravity should allow the lever to latch itself (ideally), but in case it does not, press down lightly. IG - PD-A20607 - Gs100 - March 2021 - R01...
- Page 4 4. INSTALLING THE BATTERY PACK a) Raise the tightening handle. b) Slide the battery pack into position. c) Lower the tightening handle. d) Tighten the handle to hold the battery pack in position. IG - PD-A20607 - Gs100 - March 2021 - R01...
- Page 5 Slide armrest into the square tube on the seat frame. b) Place armrest as close as possible to the backrest without touching it. c) Tighten securely using the tightening nobs, turning clockwise. IG - PD-A20607 - Gs100 - March 2021 - R01...
- Page 6 INSTALLING THE SAFETY BELT ( OPTIONAL ACCESSORY a) Remove the tightening nobs holding the armrests. b) Slide the belt ring onto the nob’s thread. c) Securely screw nob back onto the seat frame. IG - PD-A20607 - Gs100 - March 2021 - R01...
- Page 7 Tighten the mirror by turning clockwise. e) Once the mirror is in the desired position, tighten locknut using a 14 mm hex wrench. f) Slide the protective cover back onto the locknut. IG - PD-A20607 - Gs100 - March 2021 - R01...
- Page 8 9. INSTALLING THE FRONT BASKET Slide the basket down onto the metal bracket located on the front of the tiller until tabs are latched. 10. TIRES Inflate 4 tires at 40 PSI IG - PD-A20607 - Gs100 - March 2021 - R01...
