Maxim Integrated Munich USB2PMB2 Manual

Evaluates: Munich (USB2PMB2#)
General Description
This document explains how the Munich (USB2PMB2#)
adapter board receives commands from a laptop through
the USB to create an I
design files as well
USB2PMB2# with MAX11300PMB1,
(MAXREFDES5#), Campbell
(MAXREFDES11#), and
provided.
Portability has become another word for convenience.
These days, almost all of us carry laptops, and this advan-
tage can be used to showcase parts to the customers
offering solutions that can cater to their needs. To have
that convenience, we need to have a board that interfaces
with our laptops to the signal chain electronics that are
present on many of the industrial, medical, and consumer
applications. This adapter board serves this purpose of
being a bridge between your laptop and your I
enabled devices.
The Maxim USB2PMB2# board requires custom soft-
ware and can be ordered together as an evaluation
system (EV system). The Munich design integrates a
low-power, 1.2A, PWM step-down DC-DC converter
(MAX1556); a dual, high-speed, USB-to-multipurpose
UART/FIFO IC (FT2232HL), high-speed USB switches,
and a 4K MICROWIRE
This Munich adapter board is used to enable USB-
2
to-I C/SPI interface for any Pmod™-compatible plug-
in peripheral modules such as the Maxim Campbell,
Santa Fe, Fresno, and Corona reference designs.
Figure 1

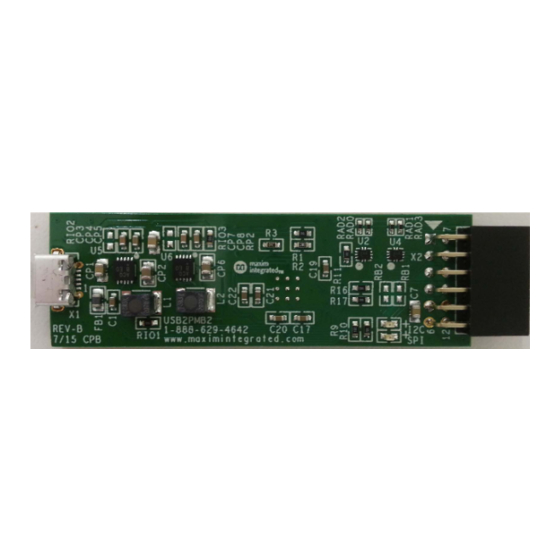

Figure 1. Munich USB2PMB2# Board
MICROWIRE is a registered trademark of National Semiconductor
Corp.
Pmod is a trademark of Digilent Inc.
Windows is a registered trademark and registered service mark and
Windows XP is a registered trademark of Microsoft Corporation.
19-7743; Rev 0; 9/15
2
C/SPI interface. Hardware
as results on interfacing
Santa
(MAXREFDES4#),
Corona (MAXREFDES12#)
®
-compatible serial EEPROM.
Ordering information for EV systems is included in the EV
kits' corresponding data sheet. An EV system is an EV kit
combined with an interface board such as a USB2PMB2#
and custom software. Refer to the appropriate EV kit data
sheet for quick start and detailed operating instructions.
The USB2PMB2# has been tested on Windows
Fe
Windows 8, and Windows XP
Fresno
are
Adapter Board Contents
● USB2PMB2# Board
● Mini-USB Cable
Features
● USB-to-I
● Small PCB Area
● Pmod™-Compatible Form Factor
2
C/SPI-
Applications
● Industrial Sensors
● Process Control
● Industrial Automation
● PLCs
● Medical
Ordering Information
USB2PMB2# Adapter Board
®
.
2
C/SPI Interface
appears at end of data sheet.
®
