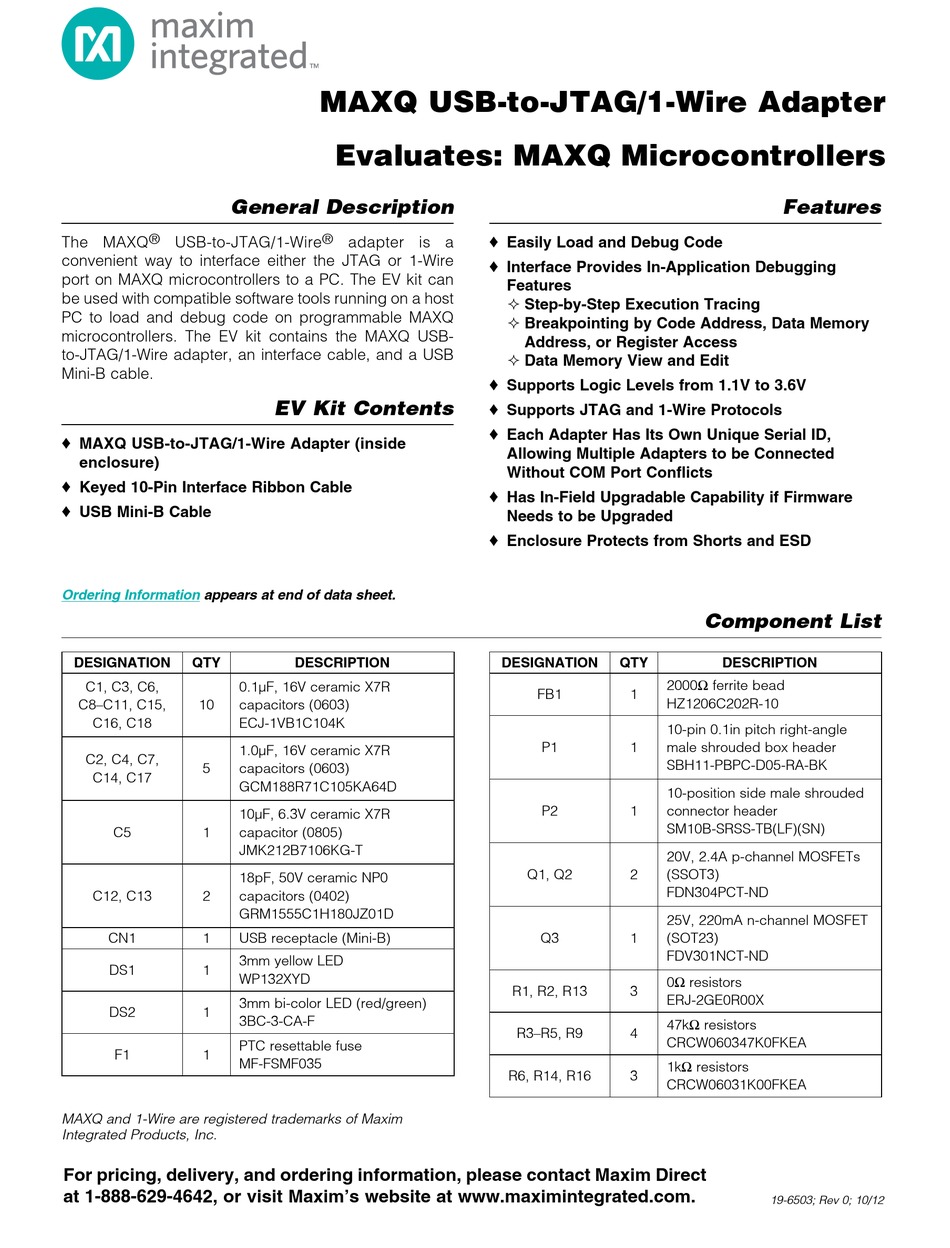

General Description

The MAXQ USB-to-JTAG/1-Wire
M
convenient way to interface either the JTAG or 1-Wire
port on MAXQ microcontrollers to a PC. The EV kit can
be used with compatible software tools running on a host
PC to load and debug code on programmable MAXQ
microcontrollers. The EV kit contains the MAXQ USB-
to-JTAG/1-Wire adapter, an interface cable, and a USB
Mini-B cable.
S MAXQ USB-to-JTAG/1-Wire Adapter (inside
enclosure)
S Keyed 10-Pin Interface Ribbon Cable
S USB Mini-B Cable
Ordering Information appears at end of data sheet.
DESIGNATION QTY
C1, C3, C6, 0.1µF, 16V ceramic X7R
C8–C11, C15, 10 capacitors (0603)
C16, C18 ECJ-1VB1C104K
1.0µF, 16V ceramic X7R
C2, C4, C7,
5 capacitors (0603)
C14, C17
GCM188R71C105KA64D
10µF, 6.3V ceramic X7R
C5 1 capacitor (0805)
JMK212B7106KG-T
18pF, 50V ceramic NP0
C12, C13 2 capacitors (0402)
GRM1555C1H180JZ01D
CN1 1 USB receptacle (Mini-B)
3mm yellow LED
DS1 1
WP132XYD
3mm bi-color LED (red/green)
DS2 1
3BC-3-CA-F
PTC resettable fuse
F1 1
MF-FSMF035
MAXQ and 1-Wire are registered trademarks of Maxim
Integrated Products, Inc.
For pricing, delivery, and ordering information, please contact Maxim Direct
at 1-888-629-4642, or visit Maxim's website at www.maximintegrated.com.
MAXQ USB-to-JTAG/1-Wire Adapter
Evaluates: MAXQ Microcontrollers
adapter is a
M
EV Kit Contents
DESCRIPTION
S Easily Load and Debug Code
S Interface Provides In-Application Debugging
Features
 Step-by-Step Execution Tracing
 Breakpointing by Code Address, Data Memory
Address, or Register Access
 Data Memory View and Edit
S Supports Logic Levels from 1.1V to 3.6V
S Supports JTAG and 1-Wire Protocols
S Each Adapter Has Its Own Unique Serial ID,
Allowing Multiple Adapters to be Connected
Without COM Port Conflicts
S Has In-Field Upgradable Capability if Firmware
Needs to be Upgraded
S Enclosure Protects from Shorts and ESD
DESIGNATION QTY
2000I ferrite bead
FB1 1
HZ1206C202R-10
10-pin 0.1in pitch right-angle
P1 1 male shrouded box header
SBH11-PBPC-D05-RA-BK
10-position side male shrouded
P2 1 connector header
SM10B-SRSS-TB(LF)(SN)
20V, 2.4A p-channel MOSFETs
Q1, Q2 2 (SSOT3)
FDN304PCT-ND
25V, 220mA n-channel MOSFET
Q3 1 (SOT23)
FDV301NCT-ND
0I resistors
R1, R2, R13 3
ERJ-2GE0R00X
47kI resistors
R3–R5, R9 4
CRCW060347K0FKEA
1kI resistors
R6, R14, R16 3
CRCW06031K00FKEA
Features
Component List
DESCRIPTION
19-6503; Rev 0; 10/12
