Maxim Integrated Munich USB2PMB1 Manual

Evaluates: Munich (USB2PMB1#)
General Description
This document explains how the Munich (USB2PMB1#)
adapter board receives commands from a laptop
through the USB to create an SPI interface. Hardware
design files as well
USB2PMB1# with MAX11300PMB1,
(MAXREFDES5#), Campbell
(MAXREFDES11#), and
provided.
Portability has become another word for convenience.
These days, almost all of us carry laptops, and this advan-
tage can be used to showcase parts to the customers
offering solutions that can cater to their needs. To have
that convenience, we need to have a board that interfaces
with our laptops to the signal chain electronics that are
present on many of the industrial, medical, and consumer
applications. This adapter board serves this purpose of
being a bridge between your laptop and your SPI-enabled
devices.
The Maxim USB2PMB1# board requires custom software
and can be ordered together as an evaluation system
(EV system). The Munich design integrates a low-power,
1.2A, PWM step-down DC-DC converter (MAX1556); a
dual, high-speed, USB-to-multipurpose UART/FIFO IC
(FT2232HL); and a 4K MICROWIRE
EEPROM. This Munich adapter board is used to enable
USB-to-SPI interface for any Pmod™-compatible plug-
in peripheral modules such as the Maxim Campbell,
Santa Fe, Fresno, and Corona reference designs.

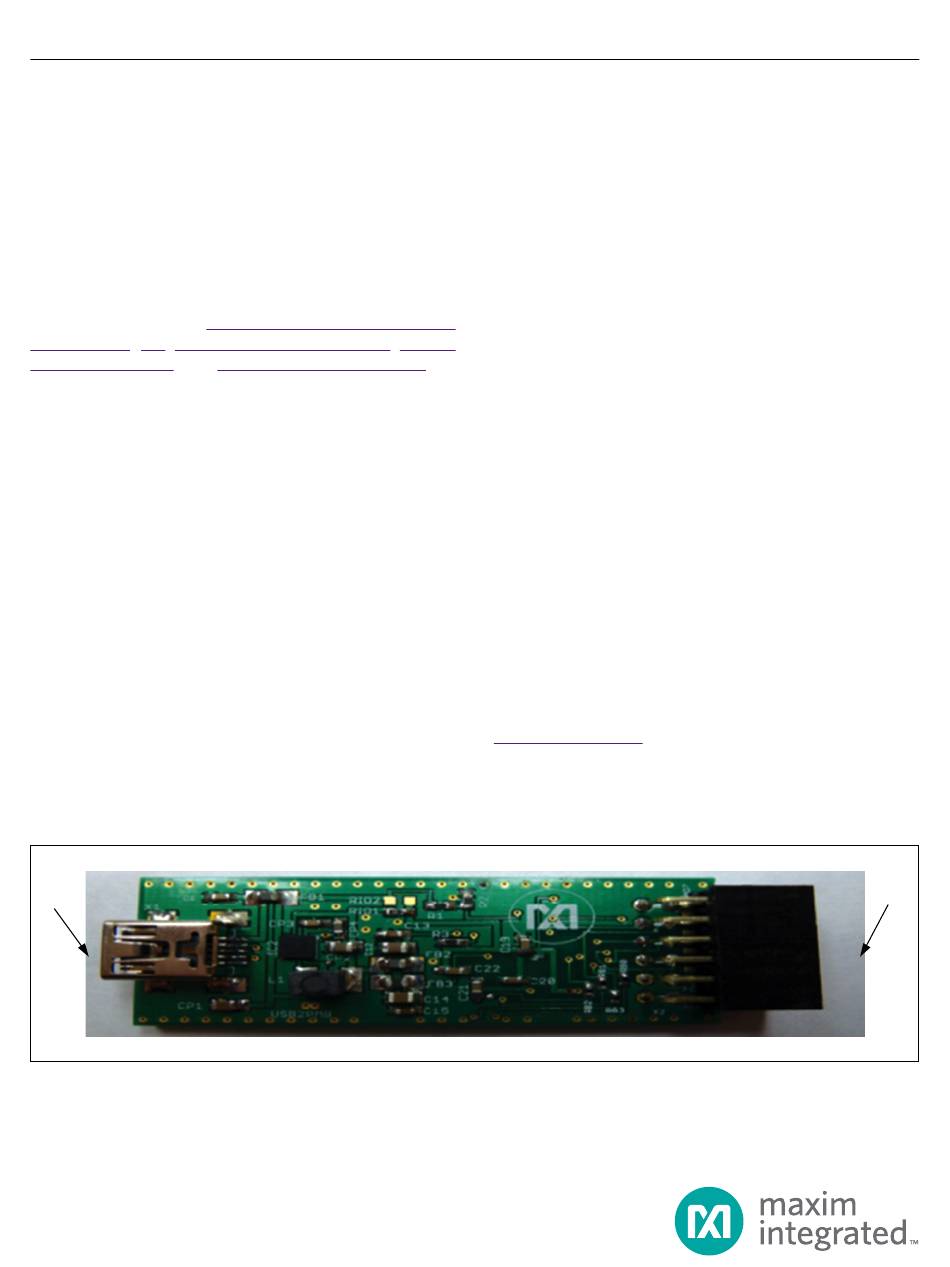

Figure 1
X1
Figure 1. Munich USB2PMB1# Board
MICROWIRE is a registered trademark of National Semiconductor
Corp.
Pmod is a trademark of Digilent Inc.
Windows is a registered trademark and registered service mark and
Windows XP is a registered trademark of Microsoft Corporation.
19-6822; Rev 1; 6/15
as results on interfacing
Santa
(MAXREFDES4#),
Corona (MAXREFDES12#)
®
-compatible serial
Ordering information for EV systems is included in the EV
kits' corresponding data sheet. An EV system is an EV kit
combined with an interface board such as a USB2PMB1#
and custom software. Refer to the appropriate EV kit data
sheet for quick start and detailed operating instructions.
The USB2PMB1# has been tested on Windows
Fe
Windows 8, and Windows XP
Fresno
are
Adapter Board Contents
● USB2PMB1# Board
● Mini-USB Cable
Features
● USB-to-SPI Interface
● Small PCB Area
TM
● Pmod
Applications
● Industrial Sensors
● Process Control
● Industrial Automation
● PLCs
● Medical
Ordering Information
USB2PMB1# Adapter Board
®
.
-Compatible Form Factor
appears at end of data sheet.
®
7,
X2
