Sterling Power Pro Power SB Pure Sine Wave Manual

Pro
Power SB (R)
Optional
remote control
with 10 meter
cable
(Part No SWR)
Basic Installation
Fuse
_
+
Battery
DO NOT OPEN UNIT | HIGH INTERNAL VOLTAGE | PLEASE READ AND UNDERSTAND THE INSTRUCTIONS PRIOR
TO INSTALLING OR OPERATING THIS PRODUCT | SHOULD ONLY BE INSTALLED BY A QUALIFIED PERSON
Copyright © 2018
Sterling Power
V2.0 MAY 2018
Pure Sine Wave Inverters

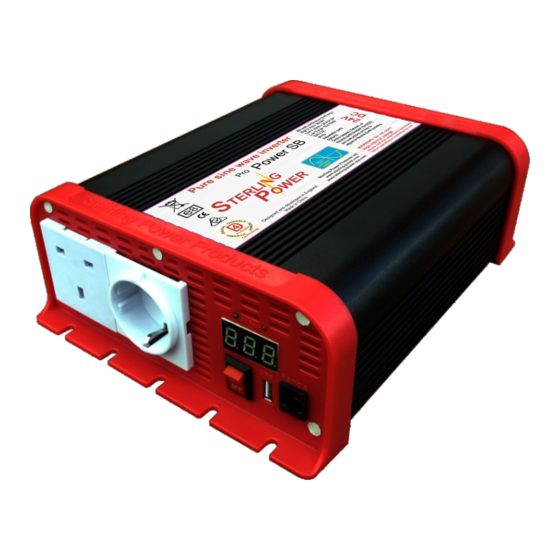

Pure sine wave inverter
Pro Power SB
D
4
Sterling Power Products Ltd.
ProDigital
www.sterling-power.com
Designed and developed in England:
www.sterling-power-usa.com
Technology
Made in China
Simply connect the positive and negative terminal of the inverter to the 12V
or 24V battery terminals (If you have a 200W model, there is a cigarette
style plug). Use an appropriate fuse in the positive line. Connect the AC
appliance to the AC socket or wire the cable up to the AC distribution panel.
Then flick the on/off switch to turn on the inverter. Must have the appropriate
DC voltage in order for the inverter to operate.
www.sterling-power-usa.com
RoHS
compliant
e
8
Pure
sine wave
output
200W - 2200W
110V- 230VAC
Option 1
Twin socket
UK and Euro Schuko
Part No:
SIB12(24)200
SIB12(24)300
SIB12(24)600
SIB12(24)1000
SIB12(24)1600
SIB12(24)2200
ASIB121600
ASIB241600
WARNING: Do not open
High internal voltage
please read and understand instructions
before operating or installing this unit
WARNING:
www.sterling-power.com
Warranty (2 years return to factory)
EN60950-1
EN55022: A2:2003 CLASS B
EN55024:2003
EN61000-3-2:2000
EN61000-3-3:1995/A1:2001
IEC61000-4-2:A2:2003
IEC61000-4-3:20002/A1:2002
IEC61000-4-4:2004
IEC61000-4-6:A1:2004
IEC61000-4-8:A1:2000
Option 2
1m AC cable pre-wired
with RCD
Part No:
SIBR12(24)300
SIBR12(24)600
SIBR12(24)1000
SIBR12(24)1600
SIBR12(24)2200
Live
To AC distribution
Earth
Neutral
To AC appliances
