A S
BOUT THE YSTEM

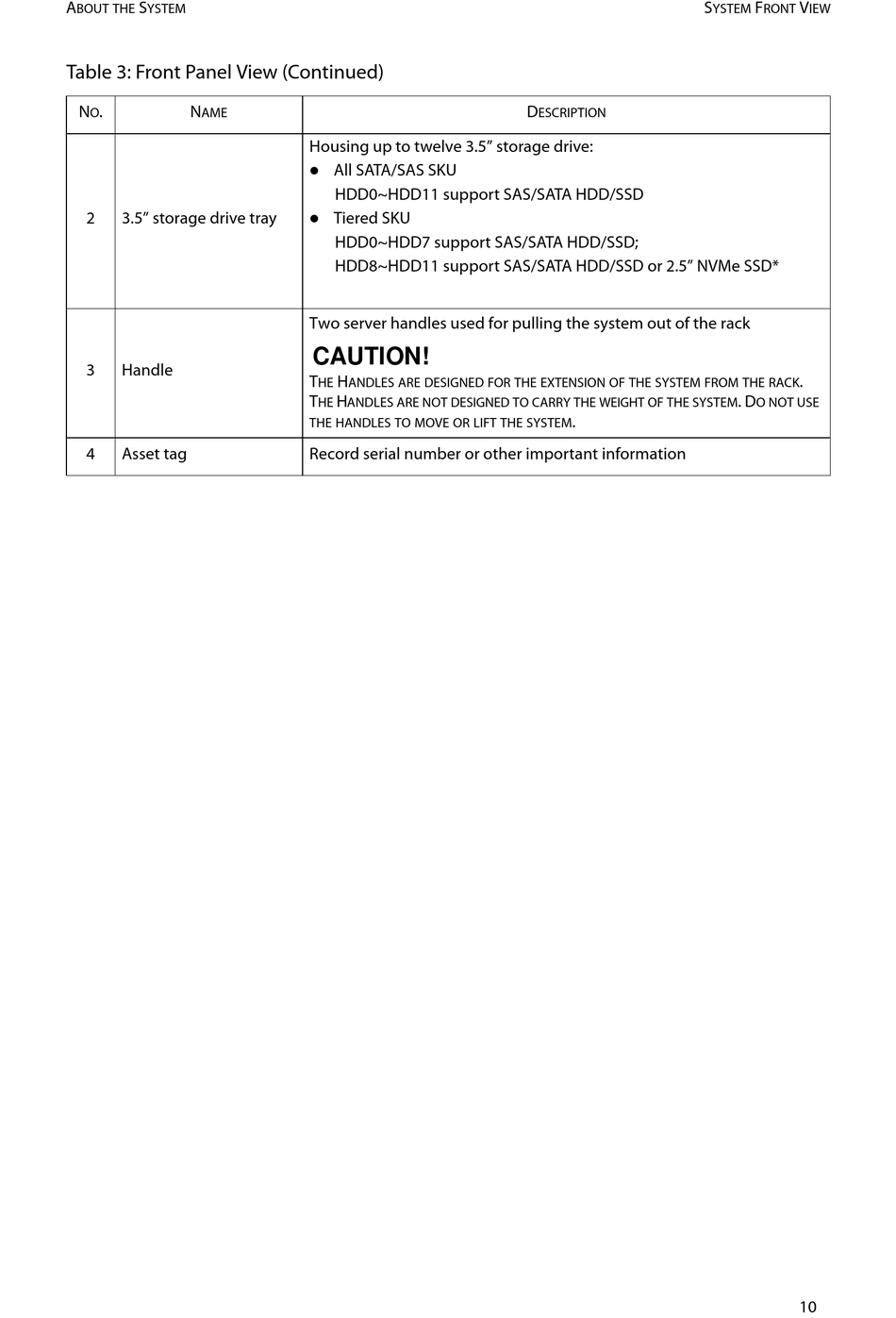

Table 3: Front Panel View (Continued)
N . N
O AME
2 3.5" storage drive tray
3 Handle
4 Asset tag
Housing up to twelve 3.5" storage drive:
 All SATA/SAS SKU
HDD0~HDD11 support SAS/SATA HDD/SSD
 Tiered SKU
HDD0~HDD7 support SAS/SATA HDD/SSD;
HDD8~HDD11 support SAS/SATA HDD/SSD or 2.5" NVMe SSD*
Two server handles used for pulling the system out of the rack
CAUTION!
T H
HE ANDLES ARE DESIGNED FOR THE EXTENSION OF THE SYSTEM FROM THE RACK
T H
HE ANDLES ARE NOT DESIGNED TO CARRY THE WEIGHT OF THE SYSTEM
THE HANDLES TO MOVE OR LIFT THE SYSTEM
Record serial number or other important information
D
ESCRIPTION
.
S F V
YSTEM RONT IEW
.
. D
O NOT USE
10
