Trapeze Mobility Point Series Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

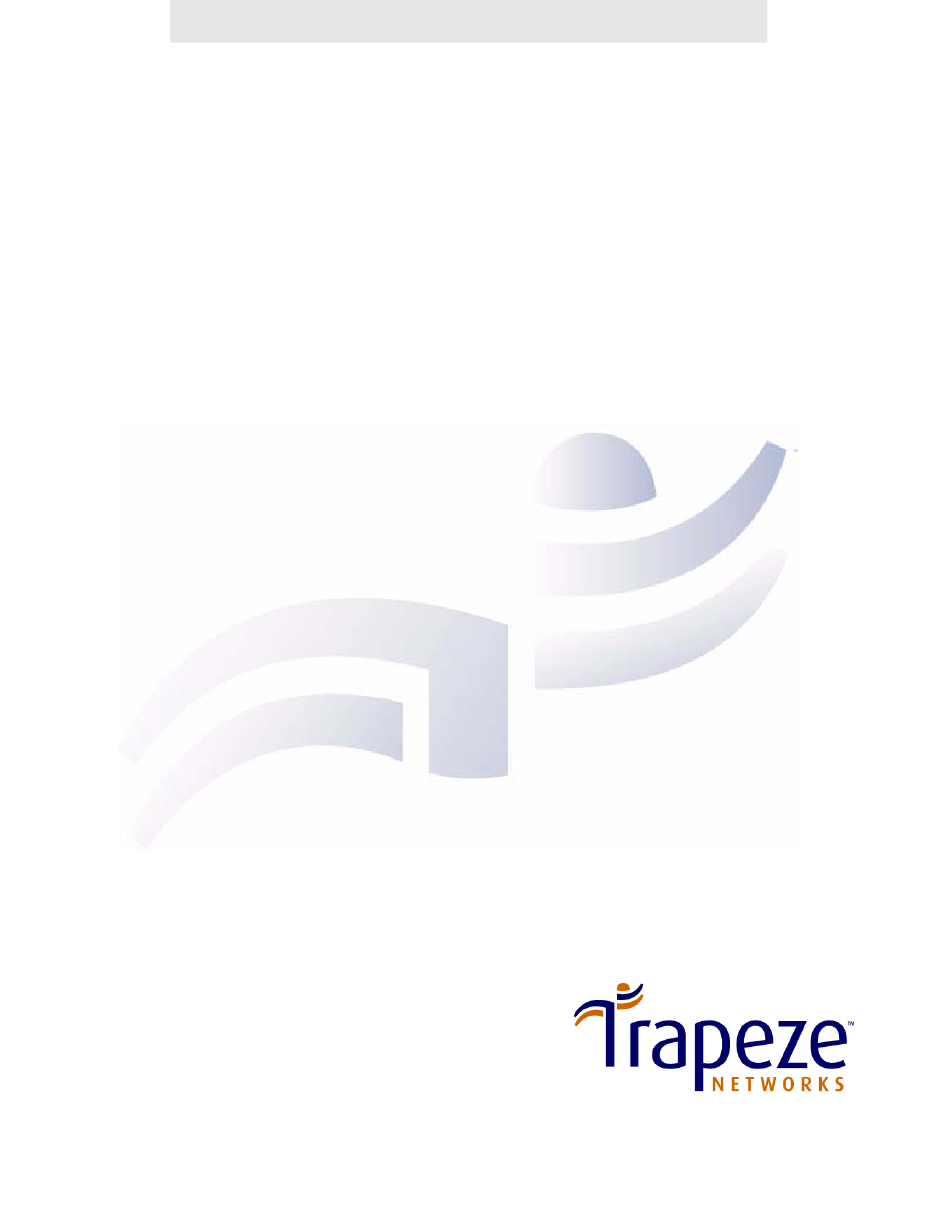

Confidential—Beta1 Draft—20 Sep 04
Trapeze
Mobility Point
™
Installation Guide
Version 3.0—Beta1 Draft
Part Number 730-9502-0042, Revision A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobility Point Series and is the answer not in the manual?

Questions and answers

Related Manuals for Trapeze Mobility Point Series

Summary of Contents for Trapeze Mobility Point Series

  • Page 1 Confidential—Beta1 Draft—20 Sep 04 Trapeze Mobility Point ™ Installation Guide Version 3.0—Beta1 Draft Part Number 730-9502-0042, Revision A...
  • Page 2 Groups, VPGs and Virtual Site Survey are trademarks of Trapeze Networks, Inc. Trapeze Networks SafetyNet is a service mark of Trapeze Networks, Inc. All other products and services are trademarks, registered trademarks, service marks or registered service marks of their respective owners.
  • Page 3 Contacting the Technical Assistance Center Contact the Trapeze Networks Technical Assistance Center (TAC) by telephone, email, or fax. If you have a service contract or are a Trapeze Authorized Partner, log in to www.trapezenetworks.com/services/sup_programs.asp for more help.
  • Page 4 Software version and release number Output of the show tech-support command Wireless client information License levels for RingMaster™ and Mobility Exchange™ (MX™) products Description of the problem and status of the troubleshooting effort Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 5: Table Of Contents

    ....1 Trapeze Networks Mobility System ....... . 1 Documentation .
  • Page 6 ..............83 Trapeze Mobility Point Installation Guide...

  • Page 7: Introducing The Trapeze Networks Mobility System

    Networks Mobility System Trapeze Networks Mobility System ....... . . 1 Documentation .

  • Page 8: Documentation

    MX switches and MP access points in a WLAN, and is accessible through a command-line interface (CLI), the Web View interface, or the RingMaster Documentation Consult the following documents to plan, install, configure, and manage a Trapeze Networks Mobility System. Planning, Configuration, and Deployment Trapeze RingMaster User’s...

  • Page 9: Safety And Advisory Notices

    Chapter 1 Installation Trapeze Mobility Exchange Installation and Basic Configuration Guide. Instructions and specifications for installing an MX switch in a Trapeze Mobility System WLAN, and basic instructions for deploying a secure IEEE 802.11 wireless service Trapeze Mobility Point Installation Guide.

  • Page 10: Text And Syntax Conventions

    Radiation. This situation or condition can cause injury due to improper handling of fiber-optic equipment. Note. This information is of special interest. Text and Syntax Conventions Trapeze manuals use the following text and syntax conventions: Convention Monospace text Sets off command syntax or sample commands and system responses.
  • Page 11 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Documentation Chapter 1 Convention { } (curly brackets) Enclose mandatory parameters in command syntax. | (vertical bar) Separates mutually exclusive options in command syntax. Introducing the Trapeze Networks Mobility System...
  • Page 12 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Documentation Chapter 1 Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 13: Mp Overview

    Connection Options ..........17 A Trapeze Networks Mobility Point (MP) access point provides IEEE 802.11 wireless access to the network.

  • Page 14: Mp Model Numbers

    One 802.11a radio and one 802.11b radio. Both radios have internal omnidirectional antennas. (discontinued— order MP-352) MP-101 One radio that can be configured through software for 802.11a or 802.11b. The radio has an internal omnidirectional antenna. (discontinued— order MP-341) Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 15: External Hardware Features

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— External Hardware Features Chapter 2 The model number is listed on the product label, located to the right of the cable ports on the bottom of the device. Note. The MP access point radios are disabled by default and can be enabled only by a system administrator using the MX switch.
  • Page 16 Port 1 Figure 3 and Figure 4 show the external hardware features of MP access point model MP-52. Figure 3. MP Access Point Model MP-52—Front View WLAN POWER 5.0 GHz 2.4 GHz LINK Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 17: Cable Ports

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— External Hardware Features Chapter 2 Figure 4. MP Access Point Model MP-52—Rear View Cable Ports All MP access point models except the MP-52 have two RJ-45 ports. (See Figure 2.) Each port provides a 10/100BASE-TX Ethernet connection to an MX switch.

  • Page 18: External Antenna Connector

    802.11b/g radio in an MP-262.) Table 2. MP-262 External Antennas Beamwidth Model Horizontal Vertical ANT-1060 60° 65° ANT-1120 120° 60° ANT-1180 180° 40° Figure 5 shows the antennas. Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 19: Mp Mounting Options

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— External Hardware Features Chapter 2 Figure 5. External Antennas Model ANT-1060 Model ANT-1120 Model ANT-1180 The antennas come with a connector cable, mounting hardware, and installation instructions. Note. The MP-341, MP-352, and MP-262 802.11b/g radios are certified for use only with these external antennas.

  • Page 20: Status Leds

    On model MP-341, radio LED 1 indicates activity for the single radio. On model MP-352, radio LED 1 indicates activity for the 802.11b/g or 802.11b radio, and radio LED 2 indicates activity for the 802.11a radio. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 21 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— External Hardware Features Chapter 2 Table 3. MP Access Point LEDs—MP-341 and MP-352 Appearance Meaning Health Solid green All the following are true: • Management link with an MX switch is operational. • MP access point has booted. •...

  • Page 22: Leds On Model Mp-52

    Rapidly blinking The radio is unable to transmit. green Unlit Either of the following is true: • Radio is disabled. • No clients are associated with the radio and there is no traffic activity. Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 23: Connection Options

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Connection Options Chapter 2 Connection Options You can connect an MP access port directly to an MX switch port or indirectly to MX switches through an intermediate Layer 2 or Layer 3 network. In either case, use Category 5 (CAT 5) cable with straight-through signaling for each MP connection.
  • Page 24 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Connection Options Chapter 2 Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 25: Installing And Connecting An Mp

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing and Connecting an MP Unpacking an MP ..........20 Installation Requirements and Recommendations .

  • Page 26: Unpacking An Mp

    One single-piece 23.9-mm (15/16-inch) T-bar clamp Four 10-24 x 1/2-inch pan-head screws and four matching hexagonal nuts One mounting template (MP-341 and MP-352). One documentation pack that includes quick mounting instructions and a registration card (not shown). Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 27 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Unpacking an MP Chapter 3 Figure 7 shows the contents of the shipping carton for model MP-341 and MP-352. Figure 7. MP-341 and MP-352 Shipping Carton Contents Mounting template Mobility point Universal Rubber feet mounting bracket T-bar clamps Mounting hardware...
  • Page 28 Place the packing materials back in the carton and save the carton. Verify that you received each item in the previous list. If any item is missing or damaged, contact Trapeze Networks. Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 29: Installation Requirements And Recommendations

    MP access point. RingMaster Network Plan and Work Orders If you are using RingMaster to plan your Trapeze Networks Mobility System installation, you might want to create and verify a network plan for the entire Trapeze network installation and generate an MP work order, before installing MP access points.

  • Page 30: Wall Installation Recommendations

    Transmitters specifies a safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC-certified equipment. When used with the proper antennas (shipped in the product), Trapeze Networks MP access point products meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1-1991.

  • Page 31: Additional Radio Safety Advisories

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installation Requirements and Recommendations Chapter 3 Additional Radio Safety Advisories (For translations of these warnings, see “Radio Safety Warnings” on page 78.) Warning! In the U.S., locate the MP access point a minimum of 20 cm (7.9 inches) away from people.
  • Page 32 Table 5 lists the pin signals for 10/100 Ethernet straight-through wiring. Pins 4, 5, 7, and 8 are used when Trapeze Power over Ethernet (PoE) is enabled on the port. RD means Receive Data and TD means Transmit Data.

  • Page 33: Installing An Mp-Models Mp-341 And Mp-352

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Installing an MP—Models MP-341 and MP-352 To install an MP access point, use one of the procedures in this section. Installation Hardware and Tools Table 6 lists the mounting hardware and tools required for each type of installation.
  • Page 34 Universal mounting bracket Hammer Small screwdriver (3-mm or 1/8-inch) #2 Phillips-head screwdriver Tabletop Universal mounting bracket Three adhesive rubber feet Small screwdriver (3-mm or 1/8-inch) Figure 9 shows the universal mounting bracket. Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 35: Suspended Ceiling Installation-Flush Ceiling Tiles

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Figure 9. Universal Mounting Bracket Port connector opening Screw holes T-bar flanges Suspended Ceiling Installation—Flush Ceiling Tiles (For required mounting hardware and tools, see Table 6 on page 27.) Select an installation location that is centered over a T-bar in the ceiling.
  • Page 36 Figure 11. Caution! To avoid damage to the MP access point’s lock mechanism or electronic components, do not use excessive force when inserting a tool into the Unlock or Lock hole. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 37 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Figure 11. Step 5—Unlocking the Bracket Remove the bracket as shown in Figure 12. Figure 12. Step 6—Removing the Bracket Install the universal mounting bracket as follows onto the T-bar or T-bar clamp: As shown in Figure 13, place the universal mounting bracket against the T-bar or clamp so that the two screw holes face downward and the two...
  • Page 38 Pull the Cat 5 cable(s) about 15 cm (about 6 inches) out of the hole in the ceiling tile and through the port connector opening to create enough slack to insert the cable(s). Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 39 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Insert the Cat 5 cable(s) into the connector(s): For a single connection, use the connector for port 1. For a dual-homed connection, insert one cable into each connector. Lift the MP access point into place on the universal mounting bracket as shown in Figure 15.
  • Page 40 If the other ends of the Cat 5 cable(s) are not already connected and the link activated, go to “Connecting an MP to an MX Switch” on page 59. Otherwise, go to “Verifying MP Health” on page 61. Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 41: Suspended Ceiling Installation-Drop Ceiling Tiles

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Suspended Ceiling Installation—Drop Ceiling Tiles (For required mounting hardware and tools, see Table 6 on page 27.) Select an installation location that is centered over a T-bar in the ceiling. Cut a hole as follows in the ceiling tile for the Cat 5 cable(s): Place the mounting template over the area where you plan to install the MP access point.
  • Page 42 To avoid damage to the MP access point’s lock mechanism or electronic components, do not use excessive force when inserting a tool into the Unlock or Lock hole. Figure 19. Step 4—Unlocking the Bracket Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 43 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Remove the bracket as shown in Figure 20. Figure 20. Step 5—Removing the Bracket Install the universal mounting bracket as follows onto the T-bar clamp: As shown in Figure 21, place the universal mounting bracket against the T-bar clamp so that the two screw holes face downward and the two T-bar flanges face upward and are adjacent to the T-bar edges.
  • Page 44 For a single connection, use the connector for port 1. For a dual-homed connection, insert one cable into each connector. Lift the MP access point into place on the universal mounting bracket as shown in Figure 23. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 45 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Make sure the cable feeds properly into the ceiling as you lift the device, and does not become trapped between the access point and the bracket. Figure 23.
  • Page 46 If the other ends of the Cat 5 cable(s) are not already connected and the link activated, go to “Connecting an MP to an MX Switch” on page 59. Otherwise, go to “Verifying MP Health” on page 61. Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 47: Junction Box Installation

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Junction Box Installation (For required mounting hardware and tools, see Table 6 on page 27.) Unlock the universal mounting bracket from the MP access point by inserting the 3-mm or 1/8-inch screwdriver into the Unlock hole on the MP access point as shown in Figure 25.
  • Page 48 Insert the #6-32 x 1-inch machine screws in the universal mounting bracket’s screw holes, and use a #2 Phillips-head screwdriver to tighten them. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 49 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Figure 27. Step 3—Placing the Bracket on the Junction Box Junction box Port connector opening Pull the Cat 5 cable(s) about 15 cm (about 6 inches) out of the junction box and through the port connector opening to create enough slack to insert the cable(s) into the port connectors.
  • Page 50 If the other ends of the Cat 5 cable(s) are not already connected and the link activated, go to “Connecting an MP to an MX Switch” on page 59. Otherwise, go to “Verifying MP Health” on page 61. Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 51: Solid Wall Or Ceiling Installation

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Solid Wall or Ceiling Installation Note. The solid surface mounting option requires Cat 5 cable that does not have strain relief, unless you plan to route the cable through a hole in the wall or ceiling.
  • Page 52 Unlock or Lock hole. Figure 29. Step 3—Unlocking the Bracket Remove the bracket as shown in Figure 30. Figure 30. Step 4—Removing the Bracket Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 53 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 As shown in Figure 31, feed the Cat 5 cable(s) through the port connector opening and align the universal mounting bracket over the drywall anchors so that the two screw holes in the bracket face the drywall anchors.
  • Page 54 Lock hole on the access point as shown in Figure 33. Caution! To prevent possible damage to the MP access point, make sure the device is fully locked onto the bracket before letting go of it. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 55 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Figure 33. Step 9—Locking the Bracket Lock To ensure that the MP access point is fully locked onto the bracket, gently pull on the access point and attempt to rotate it from side to side. If the access point comes off the bracket, relock the device onto the bracket as described in step 9 on page 48.

  • Page 56: Tabletop Installation

    To avoid damage to the MP access point’s lock mechanism or electronic components, do not use excessive force when inserting a tool into the Unlock or Lock hole. Figure 34. Step 1a—Unlocking the Bracket Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 57 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Models MP-341 and MP-352 Chapter 3 Remove the bracket as shown in Figure 35. Figure 35. Step 1b—Removing the Bracket Turn over the universal mounting bracket, then align the bracket over the cable ports and the four mounting posts as shown in Figure 36.
  • Page 58 Insert the Cat 5 cable(s) into the connector(s): For a single connection, use the connector for port 1. For a dual-homed connection, insert one cable into each connector. Place the MP access point in the desired location on the table. Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 59: Connecting An Mp To An External Antenna

    “Verifying MP Health” on page 61. Connecting an MP to an External Antenna The 802.11b/g radio in models MP-341 and MP-352 can use an optional Trapeze external antenna. To install the antenna, see the instructions that come with the antenna.

  • Page 60: Installing An Mp-Model Mp-52

    Select an installation location that is centered under a T-bar in the ceiling. Cut a hole for the Cat 5 cable and pull about 15 cm (about 6 inches) of the cable through the hole. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 61 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Model MP-52 Chapter 3 Prepare the 14.2-mm (9/16-inch) or 23.9-mm (15/16-inch) mounting bracket: Place a 10-24 hexagonal nut on each 10-24 x 1/2-inch panhead screw to act as a locking device for the screws. Turn the nut until two or three threads are visible on the end of the screw.
  • Page 62 Lift the MP against the T-bar and twist the MP until the bracket fits completely onto the T-bar, as shown in Figure 41. Caution! To prevent possible damage to the MP, make sure the device is fully locked onto the bracket before letting go of it. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 63 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Installing an MP—Model MP-52 Chapter 3 Figure 41. Step 6—Attaching the MP to the T-bar T-bar Mounting bracket (Viewed from above ceiling tiles, looking down.) Plug the Cat 5 cable into the LAN connector on the back. If the other end of the Cat 5 cable is not already connected and the link activated, go to “Connecting an MP to an MX Switch”...

  • Page 64: Solid Wall Or Ceiling Installation

    To prevent possible damage to the MP, make sure the device is fully locked onto the screws before letting go of it. Figure 42. Step 3—Attaching the MP to the Wall or Ceiling Screws attached to wall Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 65: Tabletop Installation

    To connect the MP indirectly to an MX switch though the network, configure a Distributed MP connection on the MX switch. You can use the CLI or RingMaster to configure an MP access port or Distributed MP connection. (See the Trapeze Mobility System Software Configuration Guide or the Trapeze RingMaster Reference Manual.)
  • Page 66 • Management link with an MP access point is operational. • At least one radio is enabled or is in sentry mode. For an MP access point’s secondary link, the link is present. Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 67: Verifying Mp Health

    An MX switch’s 10/100 Ethernet ports are configured as wired network ports by default. You or the system administrator must change the port type for an MX port directly connected to an MP to activate the link. (See the Trapeze Mobility Exchange Installation and Basic Configuration Guide.)
  • Page 68 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Verifying MP Health Chapter 3 Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 69: A Mp Troubleshooting

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— MP Troubleshooting After you insert a Cat 5 cable into an MP access point’s port connector and enable PoE on the cable, observe the device’s health or LINK LED to determine the status of the connection with the MX switch. If the LED is green and is glowing steadily, the MP has been booted successfully by the MX switch and is ready for operation.
  • Page 70 MP access point. For an indirect connection through the network: • Configure a Distributed MP connection on an MX switch. • Verify that a Trapeze-approved power injector is supplying power to the MP. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 71 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Appendix A Table 8. Health LED States (continued) Health or LINK Diagnosis Remedy LED Appearance Slowly alternating MP access point is booting Wait a few seconds for the boot green and amber with an image received from process to complete.
  • Page 72 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Appendix A Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 73: B Mp Technical Specifications

    Confidential—Internal Draft—20 Sep 04 Confidential—Internal Draft— MP Technical Specifications This appendix lists the technical specifications for the Trapeze Networks MP access point. Table 9 lists the mechanical and compliance specifications. Unless otherwise noted, the values apply to all currently shipping MP models. (For...
  • Page 74 MP-341 and MP-352 (also applies to MP-101, MP-122, MP-241, MP-252, and MP-262): • Two RJ-45 ports for 10/100BASE-T Ethernet and Power over Ethernet (PoE) MP-52: • One RJ-45 port for 10/100BASE-T Ethernet and Power over Ethernet (PoE) Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 75 Confidential—Internal Draft—20 Sep 04 Confidential—Internal Draft— Appendix B Table 9. MP Mechanical and Compliance Specifications (continued) Specification Description Standards compliance IEEE 802.11 IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11af (MP-341, MP-352, and MP-52 only) Safety and MP-341 and MP-352 (also applies to MP-101, MP-122, electromagnetic MP-241, MP-252, and MP-262): compliance...
  • Page 76 Based on the country of operation specified by the system administrator Association rates 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, and 6 Mbps, with automatic fallback Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 77 Confidential—Internal Draft—20 Sep 04 Confidential—Internal Draft— Appendix B Table 10. 802.11a Radio Specifications (continued) Specification Description Modulation Orthogonal frequency division multiplexing (OFDM) Transmit power Based on the country of operation specified by the system administrator Table 11. 802.11b Radio Specifications Specification Description Antenna type...
  • Page 78 Models MP-101 and MP-122 are assigned blocks of four MAC addresses each. Each radio on models MP-101 and MP-122 is assigned one MAC address, which is shared by both the clear SSID and the encrypted SSID. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 79 Confidential—Internal Draft—20 Sep 04 Confidential—Internal Draft— Appendix B An MP access point's MAC address block is listed on a label on the back of the access point. If the MP is already deployed and running on the network, you can display the MAC address assignments by using the show {ap | dap} status command.
  • Page 80 • The 802.11a radio equals the base address + 3, for both the clear and encrypted SSIDs. • The radio equals the base MAC address + 2, for MP-101 both the clear and encrypted SSIDs. Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 81: C Translated Warning Conventions And Warnings

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Translated Warning Conventions and Warnings The following warning conventions and warnings apply to this manual. Warning Conventions Warning! This situation or condition can cause injury. Waarschuwing! Deze situatie of omstandigheid kan letsel veroorzaken. Warnung! Diese Situation oder dieser Zustand kann zu Verletzungen führen.
  • Page 82 Radiation. Cette situation ou cette condition peuvent provoquer des blessures dues à une manipulation inappropriée d’appareils équipés de fibres optiques. Aviso Radiación. Esta situación o condición puede causar lesiones debido a un manejo inadecuado del equipamiento de fibra óptica. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 83 Het is essentieel dat u kennis neemt van alle waarschuwingen en instructies aangebracht op het product zelf en/of opgenomen in de documentatie. Voordat u het product installeert, dient u Trapeze Regulatory Information in zijn geheel te hebben gelezen. Warnung! Die Installation darf nur von einem qualifizierten Kundendienstmitarbeiter vorgenommen werden.
  • Page 84 Aviso No utilice el punto de acceso de MP cerca de detonadores no blindados ni en un entorno explosivo, a menos que haya sido modificado el dispositivo con ese fin por personal cualificado. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 85 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Appendix C Warning! Do not touch or move the MP access point when the antennas are transmitting or receiving. Waarschuwing! Het MP-toegangspunt mag niet worden aangeraakt of verplaatst terwijl de antennes uitzenden of ontvangen. Warnung! Berühren oder bewegen Sie den MP-Zugriffspunkt nicht, während die Antennen senden oder empfangen.
  • Page 86 Aviso Antes de utilizar un dispositivo inalámbrico en una ubicación peligrosa, consulte los códigos locales y nacionales y a los responsables de seguridad de la ubicación para conocer las restricciones de uso. Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 87 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Appendix C Lightning Warning Warning! Do not connect or disconnect cables or otherwise work with the MP access point hardware during periods of lightning activity. Waarschuwing! Tijdens onweer met bliksem mogen kabels nooit worden aangekoppeld aan of losgekoppeld van het MP-toegangspunt of andere werkzaamheden aan het MP-toegangspunt worden verricht.
  • Page 88 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Appendix C Trapeze Mobility Point Installation Guide Version 3.0...

  • Page 89: Index

    Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— Index access point. See MP (Mobility Point) documentation conventions 4 activating an MP 59 documentation, product 2 advisory notices, explanations of 3 drop ceiling installation, MP-341 and MP-352 ANT-1060 12 ANT-1120 12 dual-homed connections 11 ANT-1180 12 antennas, external 12 Ethernet...
  • Page 90 MX (Mobility Exchange) connections 17, 59 MP LEDs 60 LEDs 14 recommendation 23 health 15, 61, 63 LINK (MP-52) 16 MP (on MX) 60 network plan, RingMaster 23 power (MP-52) 16 radio 15, 16 Trapeze Mobility Point Installation Guide Version 3.0...
  • Page 91 MP-341 and MP-352 35 pin signals 26 flush tiles, MP-341 and MP-352 29 specifications 68 flush tiles, MP-52 54 use with Trapeze devices only 23 switch. See MX (Mobility Exchange) ports 11 syntax conventions 4 power LED (MP-52)
  • Page 92 Confidential—Beta1 Draft—20 Sep 04 Confidential—Beta1 Draft— work order, RingMaster 23 Trapeze Mobility Point Installation Guide Version 3.0...

This manual is also suitable for:

Mp-352Mp-341Mp-52Mp-262Mp-252Mp-241 ... Show all
