SLX 27841HSG User Manual

27841HSG
Introduction
This SLx plug-in aerial amplifier is designed to improve picture and sound quality by amplifying
weak UHF and VHF signals.
4G Ready - built-in filter removes interference and channel loss caused by 4G mobile phone signals.
These instructions cover the most common installation options. However, if you need further
advice, please contact our Customer Careline (see overleaf ).
Please Note: If used to boost signals from the RF2 output on a satellite receiver you will need a TV
with an analogue tuner to view the satellite signal.
Boosting the signal to your TV / Freeview ™ Box / PVR
Standard installation for weak signal areas

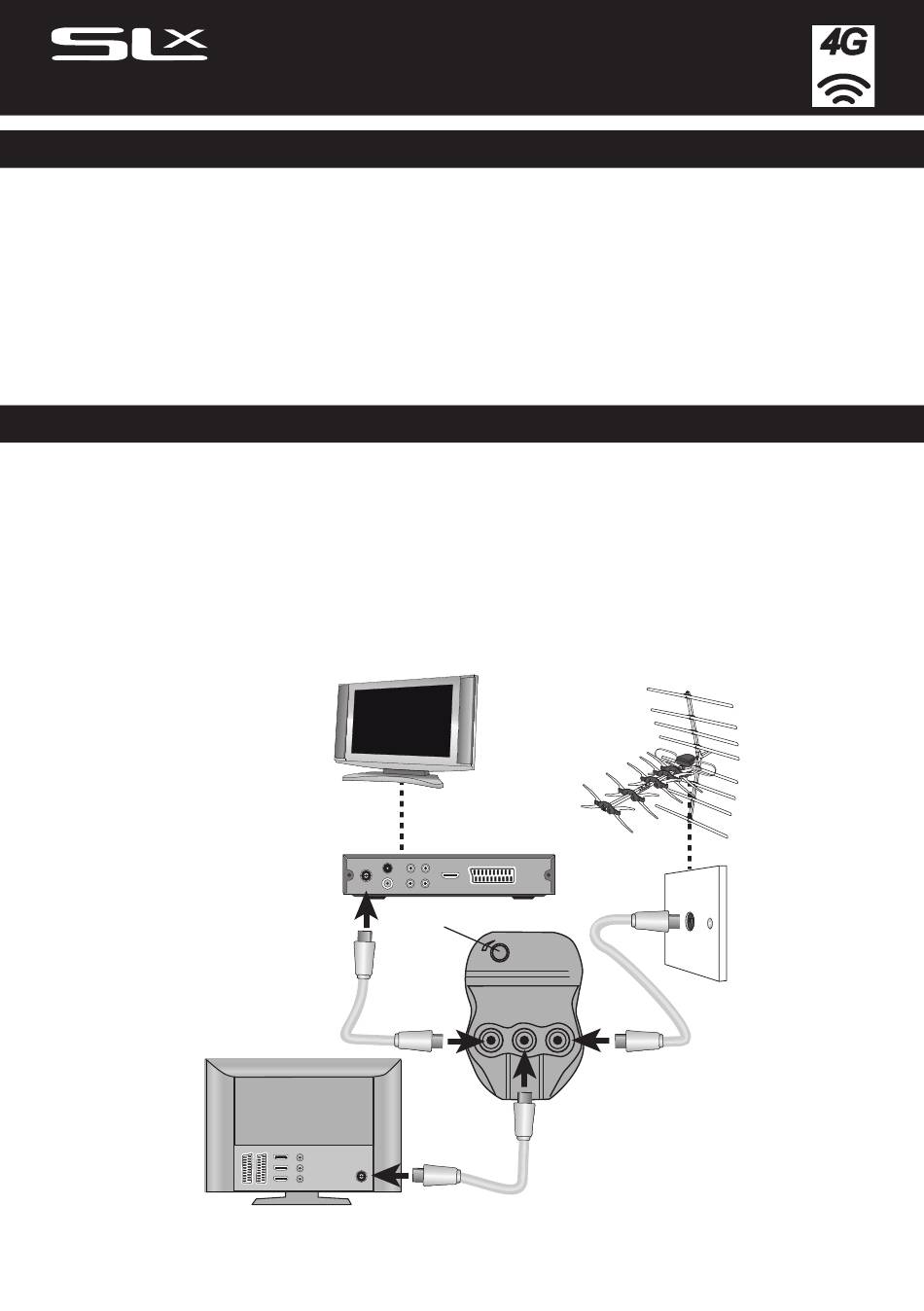

1. Connect the UHF aerial downlead (typically via an aerial
wall socket) to the INPUT socket of the SLx amplifier.
2. Connect an aerial flylead from the OUTPUT socket of the SLx
amplifier to the aerial input (usually marked "ANT IN") on the
back of your TV Freeview™ receiver or PVR (digital recorder).
Coax Aerial Lead
(Not Supplied)
Freeview™ Receiver
2 Way Plug-In Aerial Amplifier
USER GUIDE
TV
ANT IN
Gain Control
TV
ANT IN
TV with built-in
Outdoor
Aerial
Freeview™
Receiver or PVR
Output Output Input
Coax Aerial Lead
(Not Supplied)
Aerial
Outlet
Coax Aerial Lead
(Not Supplied)
Ready
