SLX 27840HSG User Manual

27840HSG
Introduction
This SLx plug-in aerial amplifier is designed to improve picture and sound quality by amplifying
weak UHF and VHF signals.
4G Ready - built-in filter removes interference and channel loss caused by 4G mobile phone signals.
These instructions cover the most common installation options. However, if you need further
advice, please contact our Customer Careline (see overleaf ).
Please Note: If used to boost signals from the RF2 output on a satellite receiver you will need to fit a
digital bypass you will also need a TV with an analogue tuner to view the satellite signal.
Boosting the signal to your TV

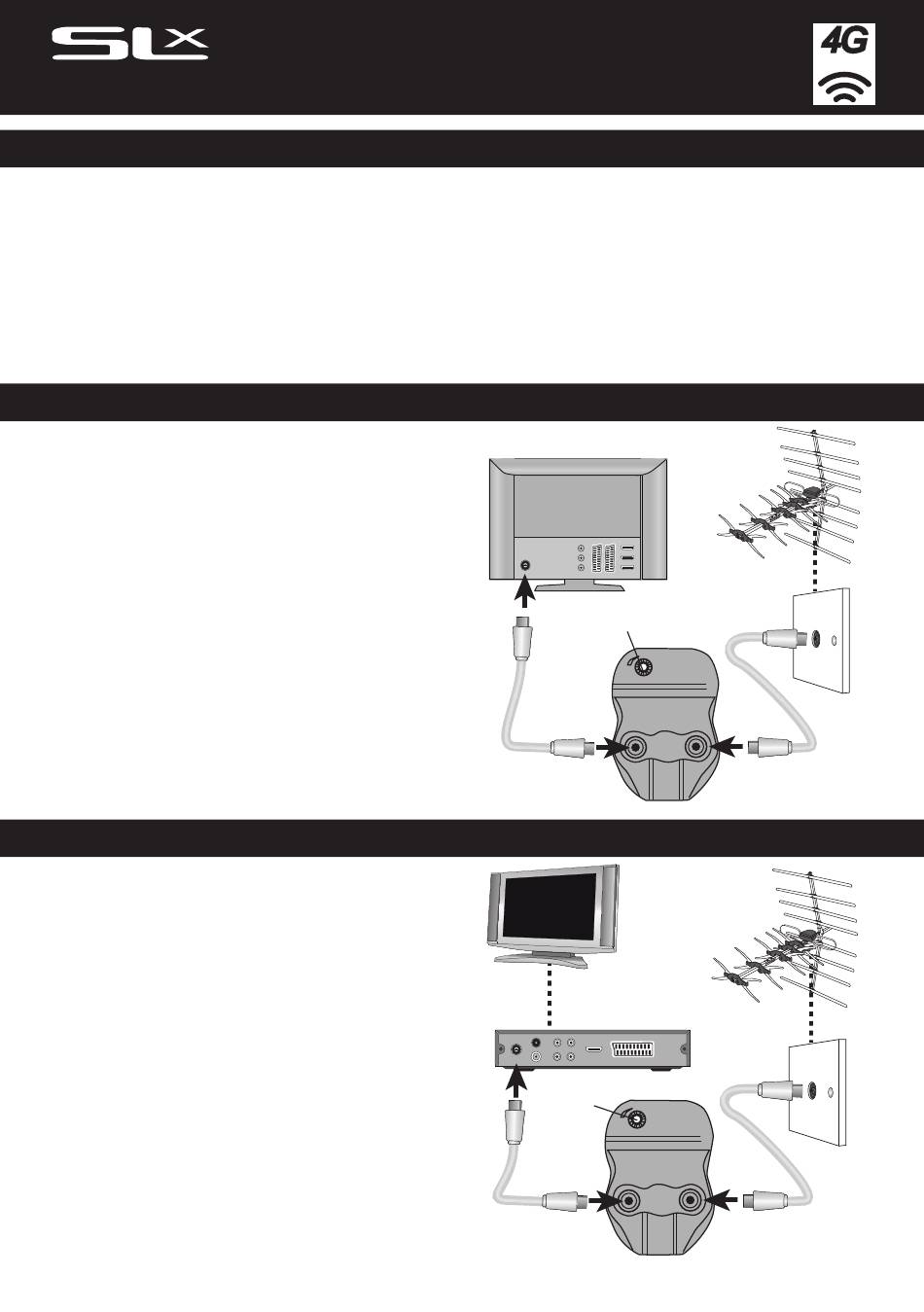

Standard installation for weak
signal areas
1. Connect the UHF aerial downlead
(typically via an aerial wall socket) to the
INPUT socket of the SLx amplifier.
2. Connect an aerial flylead from the
OUTPUT socket of the SLx amplifier to
the aerial input (usually marked "ANT IN")
on the back of your TV.
Boosting the signal to your Freeview ™ Box or PVR
Standard installation for weak
signal areas
1. Connect the UHF aerial downlead
(typically via an aerial wall socket) to the
INPUT socket of the SLx amplifier.
2. Connect an aerial flylead from the
OUTPUT socket of the SLx amplifier to
the aerial input (usually marked "ANT IN")
on the back of your Freeview™ receiver
or PVR (digital recorder).
1 Way Plug-In Aerial Amplifier

USER GUIDE

TV
ANT IN
Gain Control
Output
Coax Aerial Lead
(Not Supplied)
TV
Freeview™
Receiver or PVR
ANT IN
Gain
Control
Output
Coax Aerial Lead
(Not Supplied)
Ready
Outdoor
Aerial
Input
Coax Aerial Lead
(Not Supplied)
Outdoor
Aerial
Input
Coax Aerial Lead
(Not Supplied)
