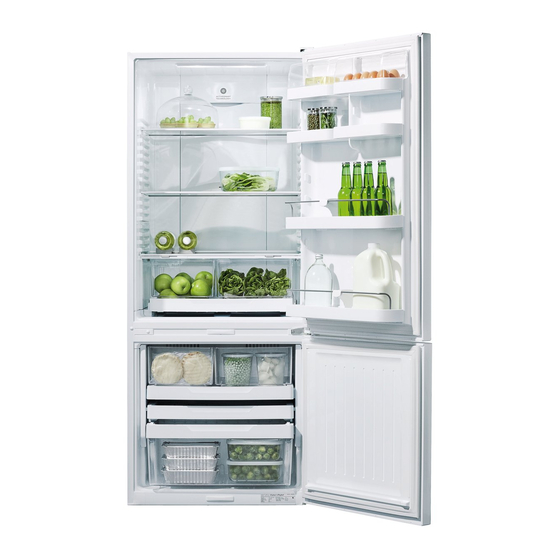

ActiveSmart operating instructions
Models:
635 mm wide
680 mm wide
790 mm wide
900 mm wide
The control panel enables you to view and modify all the features and options on your refrigerator.
Temperature control (all models)
• When the refrigerator is first turned on, the powerful cooling system will automatically cool both refrigerator and
freezer compartments to their set temperatures. This will take between 2 – 3 hours.
• The two compartment temperatures are accurately and independently controlled and do not change with the
temperature or humidity of the surroundings; whether summer or winter.
• If you wish to alter the temperature of either the fresh food compartment or freezer compartment, this can be
easily done by using the internal control panel located at the front right of the refrigerator compartment.
https://producthelp.fisherpaykel.com/au/Cool/French_Door/With_Ice_and_Water/900mm/RF610ADUSX5/User_Guide_RF610...
E372B, E402B, RF372B, RF402B
E442B, RF442B
E522B, RF522A, RF522W, RF522B
RF610/RF540A
Updated: Sun, 03 Apr 2022 10:02:55 GMT
Powered by
1
Advertisement
Table of Contents
Related Manuals for Fisher & Paykel ActiveSmart E372B
Summary of Contents for Fisher & Paykel ActiveSmart E372B
- Page 1 ActiveSmart operating instructions Models: 635 mm wide E372B, E402B, RF372B, RF402B 680 mm wide E442B, RF442B 790 mm wide E522B, RF522A, RF522W, RF522B 900 mm wide RF610/RF540A The control panel enables you to view and modify all the features and options on your refrigerator. Temperature control (all models) •...
-
Page 2: Internal Control Panel To Adjust Temperatures
Internal control panel to adjust temperatures Internal control panel for Ice & Internal control panel for Tasman Internal control panel for non-Ice & Water models models Water models Fresh food compartment (all models) • The fresh food compartment light will automatically be illuminated. The temperature for this compartment will show as a series of lights. -
Page 3: Freezer Food Compartment (All Models)
Freezer food compartment (all models) • To adjust the freezer temperature press the button once so the freezer compartment light is illuminated. • The freezer temperature can be altered by pressing the buttons. • One press on either of these buttons will reduce or increase the number of lights illuminated which indicates a small change in temperature. -
Page 4: Door Alarms (All Models)
When the fresh food or freezer compartment door is left open for long periods of time food quality and / or safety may be compromised. Door alarms (all models) • If the fresh food compartment door is left open the alarm will beep after 90 seconds and if the freezer door is left open the alarm will beep after 60 seconds. -
Page 5: Key Lock (All Models)
icon will no longer be illuminated. Key Lock (all models) Key Lock (all models) KEY LOCK allows you to disable the buttons on the internal control panel. This is useful when cleaning your refrigerator. • To activate KEY LOCK press and hold the buttons for 4 seconds. -
Page 6: Special Functions
buttons on the internal control panel for 4 seconds. • The candle icon will illuminate when SABBATH MODE has been activated. When the product is in Sabbath mode: • The icon on the internal control panel will be illuminated. • All lights on the internal control panel except for the candle icon will be off. •... -
Page 7: Fast Freeze (Selected Models Only)
button on the internal control panel. The BOTTLE CHILL light will be illuminated when the function is activated. icon will be illuminated on the external display (Ice & Water models only). • An alarm will sound after the 15 minute time has elapsed. For non-Ice &... - Page 8 Ice boost function (Ice & Water models only) This function is designed to be used for times when you require more ice eg when you are having a party. The ICE BOOST function will increase ice production up to 30%* from standard ice making and deactivate automatically after 24 hours.
