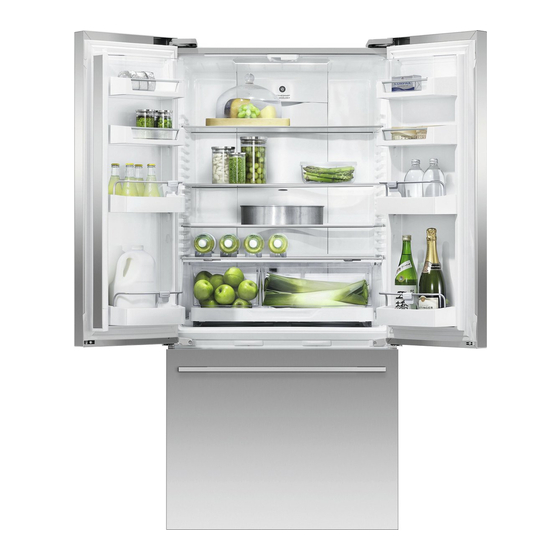

ACTIVESMART™ REFRIGERATOR
CONTEMPORARY
FRENCH DOOR REFRIGERATOR FREEZER
RF522A, RF540A & RF610A
BOTTOM MOUNT REFRIGERATOR FREEZER
E372B, E402B, E442B, E522B, RF372B,
RF402B, RF442B, RF522B & RF522W
INSTALLATION GUIDE
NZ AU BI EU AE HK SG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTIVESMART RF522A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fisher & Paykel ACTIVESMART RF522A

  • Page 1 ACTIVESMART™ REFRIGERATOR CONTEMPORARY FRENCH DOOR REFRIGERATOR FREEZER RF522A, RF540A & RF610A BOTTOM MOUNT REFRIGERATOR FREEZER E372B, E402B, E442B, E522B, RF372B, RF402B, RF442B, RF522B & RF522W INSTALLATION GUIDE NZ AU BI EU AE HK SG...
  • Page 3: Table Of Contents

    CONTENTS Safety and warnings ActiveSmart™ Refrigerators Supplied parts Product dimensions Cabinetry dimensions Unpacking and moving your appliance Before installation Water connection Flushing the water filter Positioning your refrigerator Complete installation Final checklist...
  • Page 4: Safety And Warnings

    SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! Use this appliance only for the intended purpose as described in the user guide. Electric Shock Hazard When using this appliance always exercise basic safety precautions including the following: Failure to follow these may result in death, The manufacturer’s installation instructions for product and cabinetry ventilation must be electric shock, fire or injury to persons.
  • Page 5: Activesmartâ„¢ Refrigerators

    SAFETY AND WARNINGS ACTIVESMART™ REFRIGERATORS to your home. Filter replacement is the consumer’s responsibility and will not be covered by the warranty except in the case of faulty parts or materials within the filter cartridge. If the water filtration system has been allowed to freeze, replace filter cartridge. Failure to replace the disposable filter at recommended intervals may lead to reduced filter performance and failure of the filter, causing property damage from water leakage or flooding.
  • Page 6: Supplied Parts

    FP Pro Hood Fasteners SUPPLIED PARTS MISCELLANEOUS ITEMS PACK WATER FILTER KIT ¾” OD x 3/16” ID #10-32 #10x 3” #8 x 3/4” ¼-20 x ½” M4 x8 Flat Washer Pan Head Countersunk Truss Head Pan Head Pan Head Pozi Drive Pozidrive Philips Drive Philips Drive...
  • Page 7: Product Dimensions

    PRODUCT DIMENSIONS E372B, RF372B, E402B, RF402B, E442B, RF442B, E522B & RF522B models E402B, RF402B, E372B & RF372B E442B, RF442B, PRODUCT DIMENSIONS E522B & RF522B A Overall height of product 1620 1720 B Overall width of product C Overall depth of product (excludes handle & includes rear compartment cover) Actual product dimensions may vary by ±...
  • Page 8 PRODUCT DIMENSIONS RF522W model RF522W PRODUCT DIMENSIONS A Overall height of product 1720 B Overall width of product C Overall depth of product (excludes handle & includes rear compartment cover) Actual product dimensions may vary by ± 2 mm. FRONT PROFILE...
  • Page 9 PRODUCT DIMENSIONS RF522A, RF610A/RF540A & RF610AZ/AN models RF610A/ RF522A RF610AZ/AN RF540A PRODUCT DIMENSIONS A Overall height of product 1720 1800 1790 B Overall width of product C Overall depth of product (excludes handle & includes rear compartment cover) Actual product dimensions may vary by ± 2 mm. FRONT PROFILE...
  • Page 10: Cabinetry Dimensions

    CABINETRY DIMENSIONS E372B, RF372B, E402B, RF402B, E442B, RF442B, E522B & RF522B models E372B E402B E442B E522B CABINETRY DIMENSIONS RF372B RF402B RF442B RF522B (incl. minimum air clearances) A Inside height of cavity 1645 1735 1735 1735 Flush with refrigerator chassis – full door rotation B Inside width C Inside depth Flush with refrigerator door –...
  • Page 11 CABINETRY DIMENSIONS RF522W model RF522W CABINETRY DIMENSIONS (incl. minimum air clearances) A Inside height of cavity 1735 Flush with refrigerator chassis – full door rotation B Inside width C Inside depth Flush with refrigerator door – full door rotation Flush with refrigerator chassis - full door rotation D Inside width E Inside depth flush to flat door...
  • Page 12 CABINETRY DIMENSIONS RF522A, RF610A/RF540A & RF610AZ/AN models RF610A/ RF610AZ/ RF522A CABINETRY DIMENSIONS RF540A RF610AN (incl. minimum air clearances) A Inside height of cavity Flush with refrigerator chassis 1735 1810 1810 Flush with refrigerator door 1735 1810 1810 Flush with refrigerator door with handle clearance 1835 (AN &...
  • Page 13: Unpacking And Moving Your Appliance

    UNPACKING AND MOVING YOUR APPLIANCE Check that your appliance is the correct model as per your order. Follow the steps below to move your appliance to the install location. Be careful when tilting the appliance forward/backward. Tape the door shut to prevent opening while moving the appliance. Tilt the appliance slightly forward Tilt backward to load appliance onto and Insert the hand truck between...
  • Page 14: Before Installation

    BEFORE INSTALLATION Electrical connection must be within this space if located behind the appliance and must not protrude from the back wall. Alternative locations for connection at rear of cavity We recommend the use of an isolating switch that is easily accessible to the user after the refrigerator is installed.
  • Page 15: Water Connection

    WATER CONNECTION Ensure the refrigerator is NOT plugged Connect the inlet of the PRV to the into a power supply. tubing connected to the faucet. Ensure the arrow on the PRV is pointing away from the faucet. The arrow indicates the direction of water flow.
  • Page 16 WATER CONNECTION Insert the filter water into the filter Determine the mounting position for head. Push the filter firmly into the filter the water filter noting the following: head and turn in a clockwise direction The water filter MUST not be until it locks into place.
  • Page 17 WATER CONNECTION locking piece Slide the cover all the way through the 1 3/16” (30mm) water valve. Pull up the locking piece Insert one end of the outlet tubing into and push the cover until it snap-locks the tube bore of the water valve cover into the valve.
  • Page 18: Flushing The Water Filter

    FLUSHING THE WATER FILTER Automatic ice function To turn your ice maker on press Empty the water, dry the bin and return The light above the button will illuminate. it correctly. Once your ice maker is turned on the first bin of ice may be discoloured. This is not harmful and normal during the flushing process.
  • Page 19: Positioning Your Refrigerator

    POSITIONING YOUR REFRIGERATOR What to do if your product is unstable Your Fisher & Paykel ActiveSmart™ refrigerator is fitted with front and rear rollers to allow you to easily move your refrigerator forward and backward. Avoid moving your refrigerator sideways to prevent damaging the rollers or the floor covering surface.
  • Page 20: Complete Installation

    COMPLETE INSTALLATION Before placing food in the fresh food or freezer compartments Remove all internal packaging. Ensure that all transit clips are removed from the refrigerator. These are small rubber stoppers located at the back of the shelves. Clean the inside of the appliance with a mix of warm water and a small amount of liquid detergent.
  • Page 21: Final Checklist

    FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER … Check all parts are installed. … Ensure the appliance is level. … Ensure all internal and external packaging is removed from the appliance before use. … Ensure the water filter is installed and the has been flushed. Complete and keep for safe reference: Model Serial No.
  • Page 24 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2021. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
