Summary of Contents for Monoprice HarmonyMini
-
Page 1: User Guide

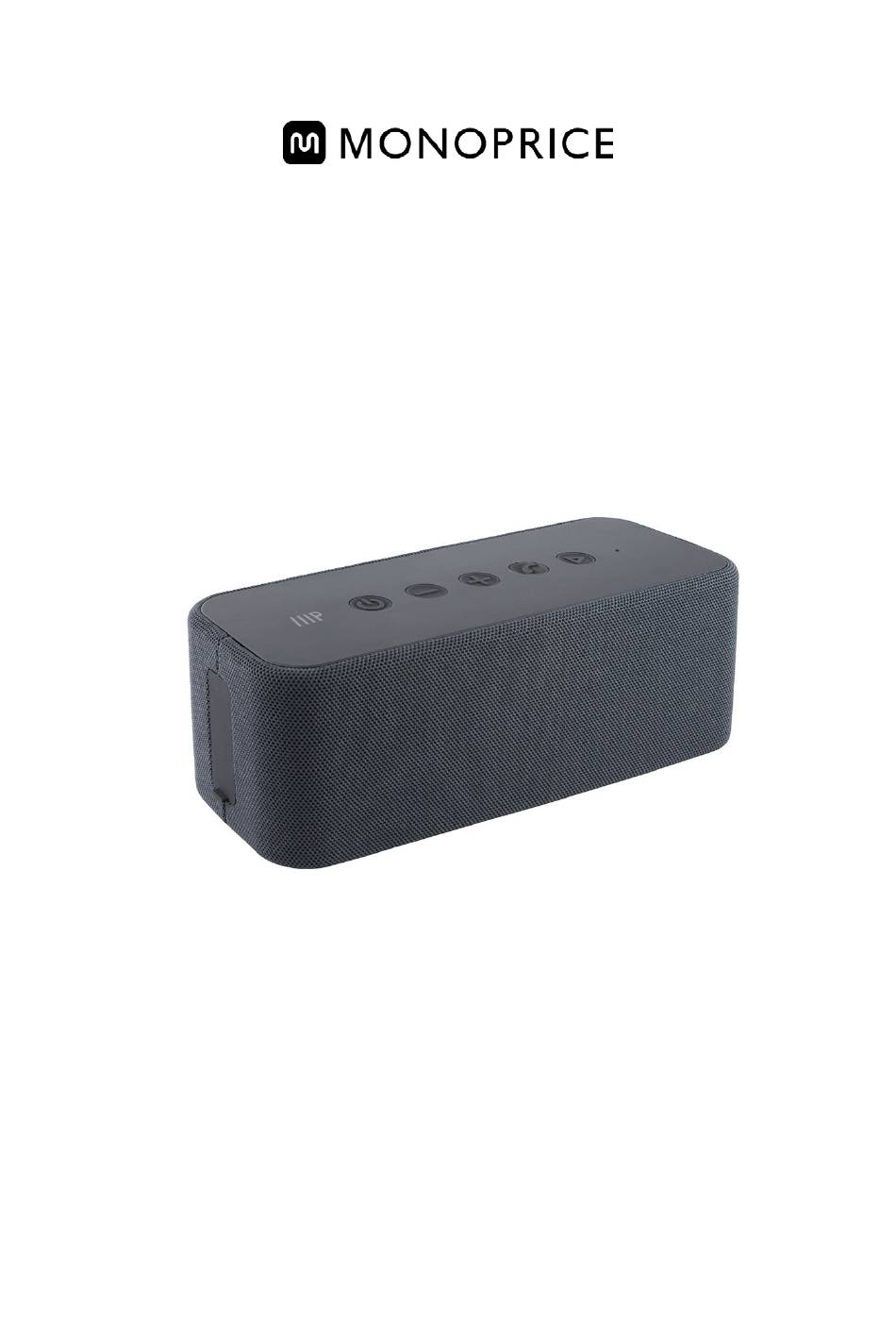

Monoprice HarmonyMini Bluetooth Wireless Speaker User Guide 33828... -
Page 2: Package Contents
PACKAGE CONTENTS 1. Bluetooth Speaker x 1 pc 2. Micro USB cable x 1 pc 3. 3.5mm Audio cable x 1 pc 4. User manual x 1 pc FUNCTIONS PANEL... -
Page 3: Bluetooth Mode
: Power ON/Power OFF : Volume Down/ Last Track : Volume Up/Next Track : Play/Pause/Hands Free : Hands Free/Switch Modes : DC 5V IN Charging Port : Aux in ：SD card slot BLUETOOTH MODE: 1. Press and hold to turn the speaker ON/OFF. The speaker will emit tones. The LED be flash blue slowly. -
Page 4: Aux In Mode
3. Press to Pause or Play media. 4. Press to decrease volume; press and hold it to play the last track. 5. Press to increase volume; press and hold it to play the next track. 6. When there is an incoming call, press to answer it, then press it again to hang up. - Page 5 CHARGING: The speaker has a built-in rechargeable battery. Before using the speaker for the first time, please fully charge the battery via the USB cable. When charging, the LED light next to the charging port will be red, and it will turn off when the speaker is full charged. It will take 3-4 hours to fully charge the speaker’s battery if fully depleted.
-
Page 6: Specifications
SPECIFICATIONS BT Chipset JL AC4603A BT version V2.1+EDR BT profile A2DP, AVRCP, HFP BT Distance >=10m Driver power 5W x2 Driver size 1.5” x2 Impedance 4Ω Response frequency 80Hz --20kHz Signal Noise ≥ 65dB <1% Built in Microphone Charging indicator Buttons and controls Power Last Track/V-... - Page 7 Hands free/mode switching Available modes BT/Aux in 5W x2 Output power (at 10% THD) Input 5V, 1A Battery type lithium battery Battery capacity 1800mAh /3.7V Battery weight 42.9g Playback time Approx. 7 hours @ 60% volume Charging time 3-4h Unit size 160 x 53 x 62mm Unit weight 400g...
-
Page 8: Regulatory Compliance
Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to... - Page 9 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 10 Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
