I. Installation & Operation - EXP-LED-FX2-2M

I. Operation

Momentary Mode:

Lightly press the top body switch for

momentary operation. Release the

switch to turn the light off.

Constant-On Mode:

Press the top body switch until it clicks and

then release for constant-on mode. Press

and release the top body switch again to turn

the light off.

Floodlight Mode:

Press the bottom body switch until it clicks

and then release for floodlight

mode. Press and release the bottom body

switch again to turn the light off.

Dual-Light Mode:

Dual-Light allows the user to turn on both the

flashlight and the floodlight, at the same time.

Press the top body switch until it clicks and

then release for constant-on mode flashlight

Mode. Next press and release the bottom

switch to activate the floodlight. Both the

flashlight and the floodlight are now running.

Press and release both the top and bottom

body switches to turn the lights off.

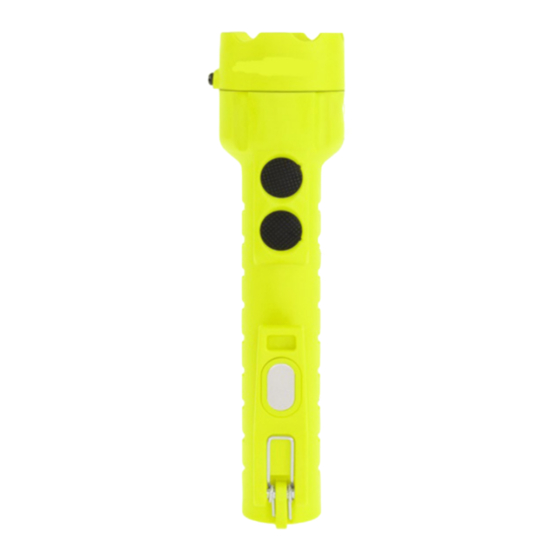

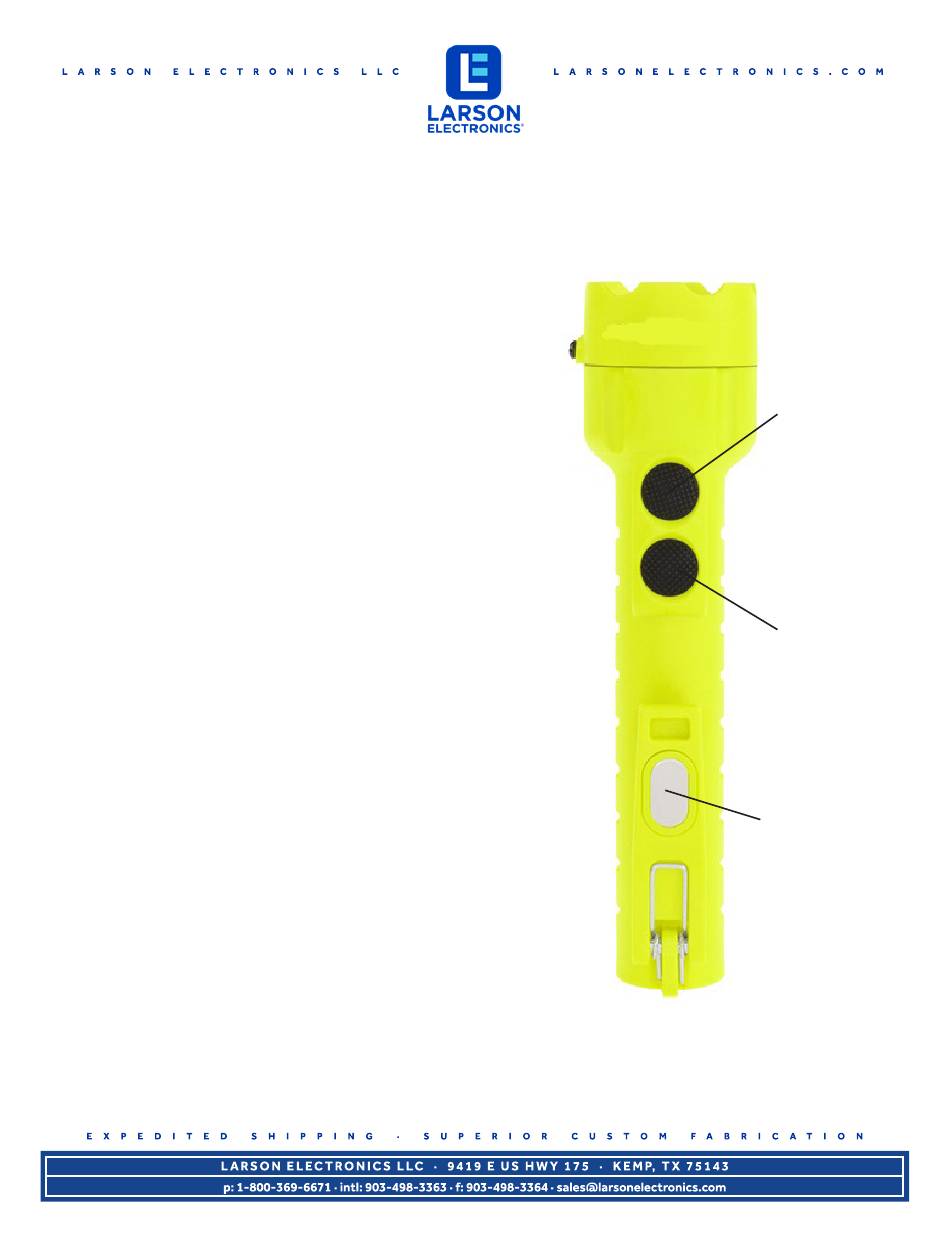

On/Off Button for

Flashlight

On/Off Button for

Floodlight

Belt Clip with

Magnet
