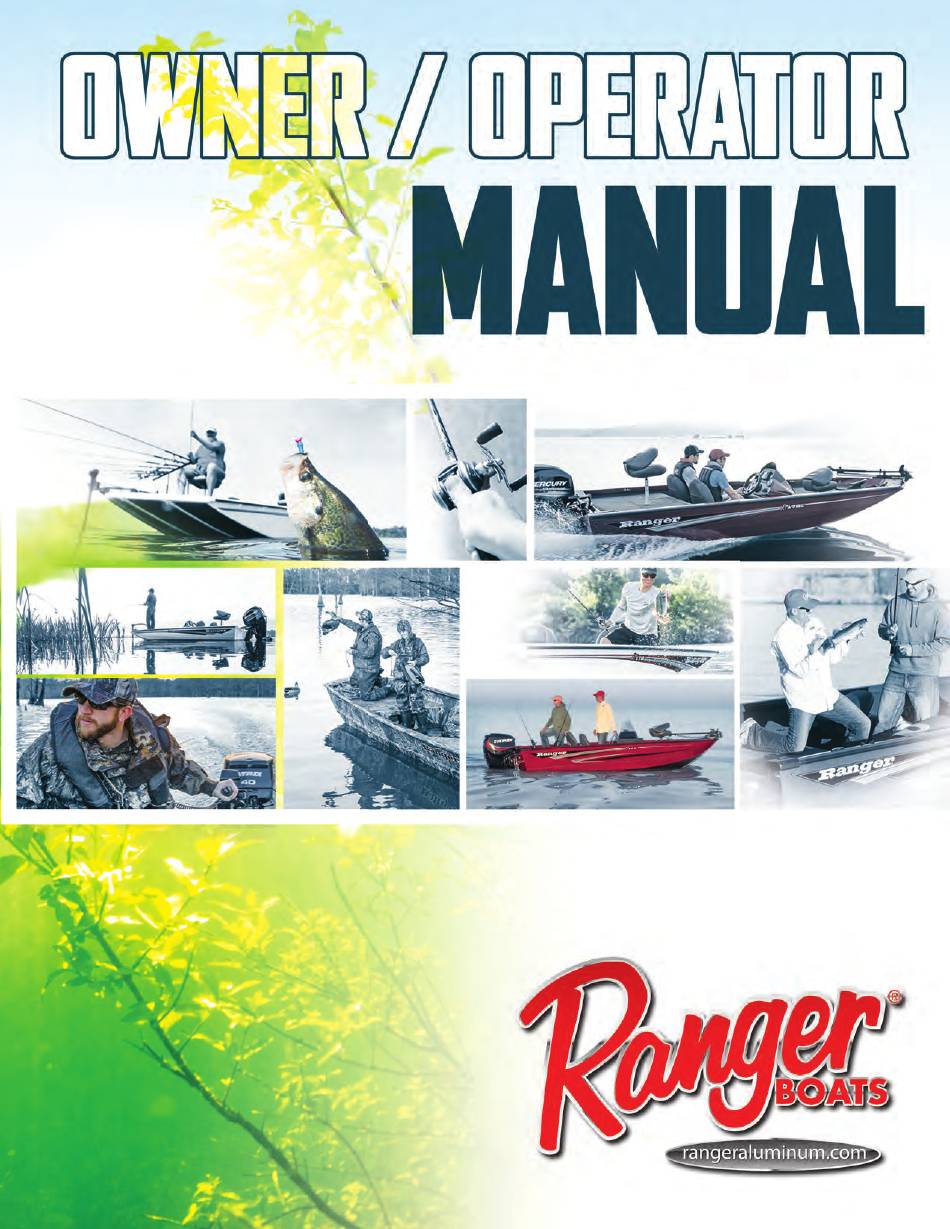

- Page 1 Keep this manual with the boat at all times. All operators must read and fully understand the operational instructions before the boat is used. • RT Series • Deep V Series • MPV Series • Ranger Trail Trailers ™ ®...
- Page 2 ® Ranger boats include a wide variety of ® advantages in quality, construction and performance. For even more details, visit us at www.rangerboats.com ® ® ® ® ® ® ™ ® ™ ® ® ® RPM Performance ™...
-
Page 3: Getting To Know And Handle Your Ranger Boat
Getting To Know and Handle Your Ranger ® Boat GETTING TO KNOW AND HANDLE YOUR RANGER BOAT . . . Your Ranger dealer should see that you have selected the proper horsepower engine for the rating range of the boat model you have chosen. The proper engine mounting height has been selected for optimum performance and the correct propeller has been chosen. - Page 4 Getting To Know and Handle Your Ranger ® Boat at which you feel safe and are in complete control…NEVER FASTER THAN YOUR EXPERIENCE DICTATES! At this moderate speed you should begin to trim your engine into a higher position (out). Please refer to your engine owner’s manual for more information on power trim use and operations.
-
Page 5: Be Responsible For Safer Boating
Be Responsible For Safer Boating & Carbon Monoxide Warning BE RESPONSIBLE FOR SAFER BOATING • ALCOHOL and DRUGS - The debilitating effects of alcohol and other drugs reduces reaction time and detracts from judgment. The combined effect of the outdoor environment… sun, heat, wind, rough water, and noise can be more fatiguing than one would imagine and, combined with drugs or alcohol, can be very dangerous. -
Page 6: Table Of Contents
TABLE OF CONTENTS Getting to Know and Handle Your Ranger Boat ....1 Be Responsible for Safer Boating .......... 3 Carbon Monoxide Warning............. 3 Special Information ..............5 Your Ranger Dealer’s Responsibilities........ 5 Owner/Operator’s Responsibilities ........5-6 Warning and Cautions ............7 Hazard Labeling ...............7-8 Hull Identification Plate ............ -
Page 7: Special Information
Special Information SPECIAL INFORMATION The following special information is intended to alert you to possible dangers and to information important to the safe operation of your boat and other equipment. Observe them carefully. However, simply being aware of the “WARNING”, “CAUTION” AND “NOTICE” notations in this manual will not eliminate the dangers that they signal if you do not implement the information. - Page 8 Special Information in case of emergency. U.S. Coast Guard requirements for PFDs (Personal Flotation Devices, or Life vests) can vary, depending on the type of boat. Be sure to comply with the U.S. Coast Guard regulations that apply to your boat.
-
Page 9: Warning And Cautions
Hazardous Labeling HAZARD LABELING The following images are a partial list of warning/information decals that may be found in various locations on your boat and trailer. (Photos are not to scale) Some labels are not appropriate for every boat/trailer model, so your rig may not have them all. -
Page 10: Hull Identification Plate
Hazardous Labeling RECOMMENDED ON-PLANE SEATING LOCATIONS SAMPLE A decal similar to the one in figure 1 below should be found on your boat in the area of the capacity label. The areas marked by “X’s” are the areas of the boat considered safe and suitable for on-plane seating. -
Page 11: U.s. Coast Guard Capacity Information Plate
Hull Identification Plate & U.S. Coast Guard Capacity Information Plate U.S. COAST GUARD CAPACITY INFORMATION PLATE FIGURE 2 Familiarize yourself with your boat’s maximum capacities. Do not exceed the maximum weight (in pounds) or persons capacity (number) found on the U.S.C.G. capacity information plate attached to your boat. Know the ratings and load your boat accordingly. -
Page 12: Recommended On-Plane Seating Locations
Failure to do so could cause a person(s) to be thown overboard resulting in injury or death. RECOMMENDED ON-PLANE SEATING ADDITIONAL OCCUPANT SEATING RT Series LOCATIONS (UP TO PLANING SPEED ONLY) RA1652H RA1760... - Page 13 Fuel Systems Gasoline fuel systems used in Ranger boats are designed to meet or exceed the requirements of the U.S. Coast Guard, the National Marine Manufacturers Association, the EPA, and the American Boat and Yacht Council at the time of manufacture.
- Page 14 Fuel Systems E. FUEL FILTER Fuel filters are installed on each engine. (Yamaha has an additional fuel filter/water separator in the stern of the boat.) Filters should be changed frequently to assure an adequate supply of fuel to the engine. Refer to the engine manual for additional information.
- Page 15 Fuel Systems If areas are found within the fuel system that appear questionable, have your Ranger dealer inspect the system. A thorough fuel system examination should be made by an experienced marine technician at least once a year. CAUTION Maintenance or repairs should be performed by your Ranger dealer or other qualified personnel.
-
Page 16: Steering At Console
Fuel Systems & Steering I. AFTER FUELING 1. Replace all fill caps securely. 2. Wipe up any excess fuel immediately. 3. Determine that there is no odor of gasoline in the bilge, before turning on lights, pumps, or starting engine. WARNING Spilled fuel is a fire hazard. -
Page 17: Cleaning Upholstery
Steering & Upholstery FIG. 4 Nuts to inspect and tighten Grease here Nuts to inspect and tighten CAUTION See engine owner’s manual for proper greasing and maintenance of engine link rod and steering kit. FIG. 5 Grease here Nuts to inspect and tighten CLEANING UPHOLSTERY For general purpose cleaning, use Fantastik, or warm water with a mild dish soap such as Dawn or Ivory. - Page 18 Upholstery DO NOT USE • Dish Soap (Dawn, Ivory) • Formula 409 • Orange 88 Degreaser • Murphy’s Oil Soap • Roll-Off • Fantastik • Simple Green • Bleach/Baking Soda • 303 Protectant • DC Plus • Turtle Wax Tar Remover •...
-
Page 19: Wiring Diagrams
FUSED ACC TERMINAL BOARD USE CORRECT IN LINE FUSE PROTECTION ELECTRONICS TERMINAL... - Page 21 FUSED ACC TERMINAL BOARD USE CORRECT I N LINE FUSE PROTECTION ELECTRONICS TERMINAL...
-
Page 22: Hook Up Of Trolling Motor Leads
Adding Accessories to Your Boat & Electrical Systems HOOK UP OF TROLLING MOTOR LEADS: CAUTION Hooking up leads to trolling motor in any other manner could result in severe damage to both batteries and panel. Breakers are circuit protection (50 amp 12 volt) for the positive (+) leads in the trolling motor wiring (bow to stern). -
Page 23: Federal Requirements For Recreational Boats
Electrical Systems & Federal Requirements for Recreational Boats < Inspect wiring connections and terminals periodically for damage, corrosion, etc. and replace as needed. Replacement should always be of equal or greater rating and quality. We recommend Ranger replacement parts available through your Ranger dealer. <... -
Page 24: Your Ranger Trail® Trailer
REPORTING SAFETY DEFECTS If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Ranger Boats. -
Page 25: Trailer Brakes
However, NHTSA cannot become involved in individual problems between you, your dealer, or Ranger Boats. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153);... -
Page 26: Rangertrail Wiring
Your RangerTrail ® Trailer FIG. 7 INSPECTION To assure continued proper operation of our trailer disc brakes, annual inspection is recommended. PADS Pads must be replaced when 1/16 inch (0.060”) of pad friction material is left. CAUTION If not familiar with disc brake pad replacement, have work performed by a qualified individual or service shop. -
Page 27: Before Towing Your Ranger Trail Trailer
Your RangerTrail ® Trailer NEVER TOW YOUR TRAILER WITHOUT THE LOCK PIN INSTALLED! BEFORE TOWING YOUR RANGERTRAIL TRAILER . . . ® Make sure that your tow vehicle is equipped with a 2-inch ball of machined or forged steel! Never use a ball smaller than 1.97 inch diameter or larger than 2.0 inch diameter. -
Page 28: Hitch Class Rating
Your RangerTrail ® Trailer FULL-SIZE CARS FULL-SIZE TRUCKS HITCH CLASS RATING MID-SIZE CARS MINI-TRUCKS & VANS VANS & SUV’S Class II WC GTW - Up to 3,500 lbs. Medium Duty Medium Duty Medium Duty WC TW - up to 350 lbs. Class III Heavy Duty Heavy Duty... - Page 29 Your RangerTrail ® Trailer R: Indicates a “radial” type tire. 15: Indicates the wheel or rim diameter in inches. Tire Ply Composition and Materials Used: Indicates the number of plies or the number of rubber-coated fabric in the tire tread and sidewall. Tire manufacturers also must indicate the ply materials in the tire and the sidewall, which include steel nylon, polyester, and others.
- Page 30 Your RangerTrail ® Trailer When weather temperature changes occur, tire inflation pressures also change. A 10º F (6º C) temperature drop can cause a corresponding drop of 1 psi (7 kPa) in inflation pressure. Under-inflation is the most common cause of tire failures and may result in Under-inflation is the most common cause of tire failures and may result in severe tire cracking, tread separation or “blowout”, with unexpected loss of severe tire cracking, tread separation or “blowout”, with unexpected loss of...
-
Page 31: Glossary Of Terms
Your RangerTrail ® Trailer Sample Tire Label Sample Tire Label Improper weight distribution can place excessive strain on the towing vehicle and trailer. It can also cause the trailer to “fishtail” (sway side to side). Be sure gear and luggage are distributed evenly in the boat. GLOSSARY OF TIRE TERMINOLOGY: Tire label: A label showing the tire sizes, recommended inflation pressure, and the maximum weight the trailer can carry. -
Page 32: Limited Warranty
LIMITED WARRANTY RANGER ALUMINUM BOATS AND RANGER TRAIL® TRAILERS Fishing Holdings, LLC dba Ranger Boats (“Ranger”) warrants to you, the first North American retail THIS LIMITED WARRANTY DOES NOT COVER: purchaser of this Ranger aluminum boat and/or trailer, or a second North American retail purchaser An aluminum boat and/or trailer purchased from any party other than an authorized Ranger as noted below (“you”), that it will repair or replace, at its sole discretion, defects in materials or... - Page 33 You and we agree that the arbitrators shall: (i) limit discovery to non-privileged matters directly to: Ranger Boats Warranty Department, PO Box 179, Flippin, AR 72634. To obtain limited warranty relevant to the Claim; (ii) grant only relief that is based upon and consistent with substantial evidence service, you must return the aluminum boat and/or trailer, including any alleged defective part, to an and applicable substantive law;...
-
Page 34: Boating Safety Checklist
Boating Safety Checklist MUST HAVE ITEMS RECOMMENDED ITEMS Items in Red May be Required in Some States As Required By Regulation Personal Flotation Devices (Life Jackets) Boats on Inland Waters Everything on Required List PLUS: Type I, II, III, or V for each person onboard (wearable) First Aid Kit Bailing Device One Type IV (Throwable) - Page 35 RULES OF THE ROAD FOR OUTBOARDING Keep clear of sailing craft and rowboats. Yield right of way to slower boats. Always keep to the right. Do not use your motor near swimmers or skin divers. Learn the sign language of the various buoys and warning signals. These are your nautical traffic signs, posted for your safety and convenience.
- Page 36 Fishing Holdings, LLC d/b/a Ranger Boats ® P.O. Box 179 • Flippin, Arkansas • 72634 • 870-453-2222 2-17-1500-17MY © Copyright MMXV Fishing Holdings, LLC d/b/a Ranger Boats Printed in USA, R-5150...
