Campbell Hausfeld FP202801 Operating Instructions And Parts Manual

See Warranty on page 8 for important information about commercial use of this product.
Operating Instructions and Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.

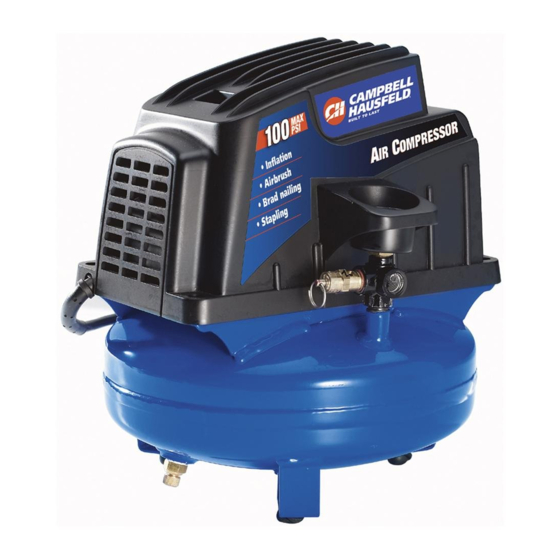

Oilless Compressors
Description
Oilless compressors are designed for
do-it-yourselfers with a variety of home
and automotive jobs. These units
operate without oil. Compressed air
from this unit will contain moisture.
Install a water filter or air dryer if
application requires dry air.

Safety Guidelines

This manual contains information that is
very important to know and understand.
This information is provided for SAFETY
and to PREVENT E Q U I P M E N T P R O B L E M S .
To help recognize this information,
observe the following symbols.
Danger indicates an
i m m i n e n t l y
hazardous situation which, if not avoided,
WILL result in death or serious injury.
Warning indicates a
p o t e n t i a l l y
hazardous situation which, if not avoided,
COULD result in death or serious injury.
Caution indicates a
potentially
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
Notice indicates
important
information, that if not followed, MAY
cause damage to equipment.
Unpacking
After unpacking the unit, inspect
carefully for any damage that may have
occurred during transit. Make sure to
tighten fittings, bolts, etc., before putting
unit into service. In case of questions,
damaged or missing parts, please call 1-
800-543-6400 for customer assistance.
Have the date code, model number,
and parts list (with missing parts circled
before calling.)
REMINDER: Keep your dated proof of purchase for warranty purposes!
© 2008
DO NOT RETURN THE
PRODUCT TO THE
RETAILER! CALL
1 - 8 0 0 - 5 4 3 - 6 4 0 0
Record the Model No., Serial No. and
date of purchase located on the base
below the pump in the space below.
Model No. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Date Code _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Date of purchase _________________
Retain these numbers for future
r e f e r e n c e.
shipping, handling or use. Damage may
result in bursting and cause injury or
property damage.

General Safety

I n f o rm a t i o n
Since the air compressor and other
components used (filters, lubricators,
hoses, etc.), make up a high pressure
pumping system, the following safety
precautions must be observed at all times:
1 . Read all manuals included
with this product carefully.
Be thoroughly familiar
with the controls and the
proper use of the equipment.
Attach it to this manual or file it for safekeeping.
FP202801, FP202901, FP202897,
FP202999DB, FP202999DQ, and FP202899TT
Do not operate unit
if damaged during
2 . Follow all local electrical and safety
3 . Only persons well acquainted with
4 . Keep visitors away and NEVER allow
5 . Wear safety glasses and
B reathable Air Wa rn i n g
This compressor/pump is not
equipped and should not be used
"as is" to supply breathing
quality air. For any application of
air for human consumption, the
air compressor/pump will need to
be fitted with suitable in-line
safety and alarm equipment. This
additional equipment is necessary
to properly filter and purify the
air to meet minimal specifications
for Grade D breathing as
described in Compressed Gas
Association Commodity
Specification G 7.1 - 1966, OSHA
29 CFR 1910. 134, and/or Canadian
Standards Associations (CSA).
DISCLAIMER OF WARRANTIES
In the event the compressor is
used for the purpose of breathing
air application and proper in-line
safety and alarm equipment is
not simultaneously used, existing
warranties shall be voided, and
the company disclaims any
liability whatsoever for any loss,
personal injury or damage.
codes as well as in the US, National
Electrical Codes (NEC) and Occupational
Safety and Health Act (OSHA).
these rules of safe operation should
be allowed to use the compressor.
children in the work area.
use hearing protection
when operating the
pump or unit.
IN614205AV 11/08
