See Warranty on page 8 for important information about commercial use of this product.
Operating Instructions and Parts List
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
REGISTER YOUR PRODUCT ONLINE NOW!

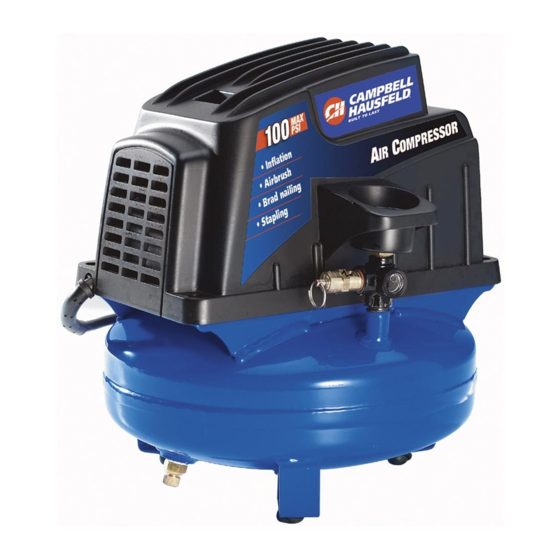

Description
Oilless compressors are designed for
do-it-yourselfers with a variety of
home and automotive jobs. These
units operate without oil. Compressed
air from this unit will contain moisture.
Install a water filter or air dryer if
application requires dry air.
Unpacking
After unpacking the unit, inspect
carefully for any damage that may
have occurred during transit. Make
sure to tighten fittings, bolts, etc.,
before putting unit into service. In
case of questions, damaged or missing
parts, please call 1-800-543-6400 for
customer assistance.
Have the date code, model number,
and parts list (with missing parts
circled) before calling.
DO NOT RETURN
THE PRODUCT TO
STOP!
THE RETAILER!
Do not operate
unit if damaged
during shipping, handling or use.
Damage may result in bursting and
cause injury or property damage.
READ & FOLLOW ALL
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DO NOT DISCARD
REMINDER: Keep your dated proof of purchase for warranty purposes!
© 2012 Campbell Hausfeld/Scott Fetzer
Oilless
Compressors
Record the Model No., Serial No.
and date of purchase located on the
base below the pump in the space
below.
Model No.
FP202801, FP202901
Serial No.
___________________
Date of purchase
Retain these numbers for
future reference.
Safety Guidelines
This manual contains information
that is very important to know and
understand. This information is
provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help
recognize this information, observe
the following symbols.
Danger indicates
an imminently
hazardous situation which, if not
avoided, WILL result in death or
serious injury.
Warning indicates
a potentially
hazardous situation which, if not
avoided, COULD result in death
or serious injury.
Caution indicates
a potentially
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
Attach it to this manual or file it for safekeeping.
For parts, product & service information,
visit www.chpower.com
http://www.chpower.net/reg

Breathable Air Warning

This compressor/pump is not
equipped and should not be
used "as is" to supply breathing
quality air. For any application
of air for human consumption,
the air compressor / pump
will need to be fitted with
suitable in-line safety and alarm
equipment. This additional
equipment is necessary to
properly filter and purify the air
to meet minimal specifications
for Grade D breathing as
described in Compressed
Gas Association Commodity
Specification G 7.1 - 1966,
____________
OSHA 29 CFR 1910. 134,
and/or Canadian Standards
Associations (CSA).
DISCLAIMER OF WARRANTIES
In the event the compressor
is used for the purpose of
breathing air application
and proper in-line safety
and alarm equipment is not
simultaneously used, existing
warranties shall be voided, and
Campbell Hausfeld disclaims any
liability whatsoever for any loss,
personal injury or damage.
information, that if not followed,
may cause damage to equipment.
NOTE: Information that requires
special attention.
FP202801, FP202901
Notice indicates
important
IN614208AV 5/12
