  • Page 1 AXIS P1245 Network Camera User Manual...
  • Page 2 This manual is intended for administrators and users of Europe AXIS P1245 Network Camera, and is applicable to firmware 6.50 and later. It includes instructions for using and managing the product on This product complies with the applicable CE marking directives your network.
  • Page 3 IEC/UL 62368-1 Battery X: 表示该有毒有害物质至少在该部件的某一均质材料中的含 The Axis product uses a 3.0 V BR/CR1220 lithium battery as the power 量超出GB/T 26572标准规定的限量要求。 supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of five years.

  • Page 4: Table Of Contents

    About AXIS Media Control (AMC) ........
  • Page 5 AXIS P1245 Network Camera Table of Contents Performance considerations ........

  • Page 6: Safety Information

    AXIS P1245 Network Camera Safety information Safety information Hazard levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 7: Product Overview

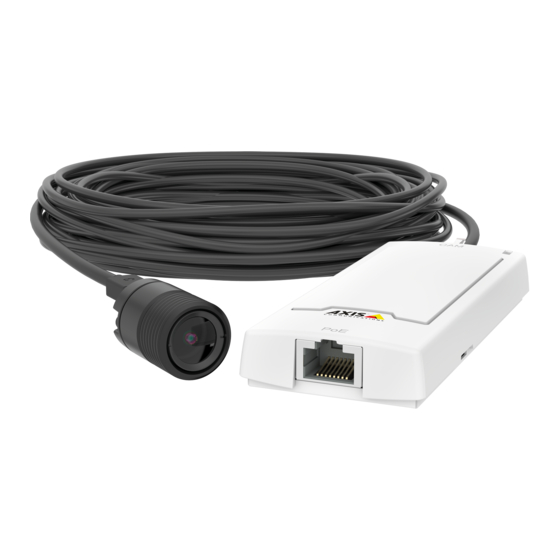

    AXIS P1245 Network Camera Product overview Product overview AXIS P12 Mk II Main Unit Status LED Control button RJ12 connector Network connector (PoE) SD card slot (microSD card)

  • Page 8: About The Sensor Units

    AXIS P1245 Network Camera Product overview AXIS FA1105 Sensor Unit Mounting nut Mounting bracket Sensor unit Sensor unit cable RJ12 connector About the sensor units We recommend that you connect the sensor units to the main unit before powering the main unit. If you disconnect a sensor unit, and connect a different sensor unit, it may be necessary to restart the main unit.
  • Page 9 AXIS P1245 Network Camera Product overview The sensor unit is delivered with a cable. To shorten the cable follow these steps: 1. Cut the cable to the desired length. Measure from the sensor unit. 2. Strip the plastic outer coating from the end of the cable.

  • Page 10: How To Access The Product

    How to set the root password To access the Axis product, you must set the password for the default administrator user root. This is done in the Configure Root Password dialog, which opens when the product is accessed for the first time.

  • Page 11: About The Live View Window

    About the manual trigger on page 11 . Click Snapshot to save a snapshot of the video image. This button is primarily intended for use when the AXIS Media Control viewer toolbar is not available. Enable this button from Live View Config > Action Buttons.
  • Page 12 2. Under Action Buttons, select Show manual trigger button. About the AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See About AXIS Media Control (AMC) on page 13 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.

  • Page 13: About Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 10 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 14: Alternative Methods Of Accessing The Video Stream

    AXIS P1245 Network Camera About media streams The AMC Control Panel can be used to configure various video settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...
  • Page 15 • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 16: How To Set Up The Product

    How to set up the product How to set up the product The Axis product can be configured by users with administrator or operator rights. To open the product’s setup pages, click Setup in the top right-hand corner of the live view window.

  • Page 17: About Video Settings

    Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.
  • Page 18 A low GOP-length value increases the video quality but requires more bandwidth. About H.264 profiles The Axis product supports the following H.264 profile(s): • Baseline: Use the Baseline profile if the client does not support CABAC entropy coding.

  • Page 19: About Stream Profiles

    Image details that are important for forensic video analysis, for example faces and license plates, are encoded with a higher bitrate. Axis’ Zipstream Technology for H.264 conforms to the H.264 standard and is compatible with third-party clients and VMS solutions that decode H.264 video.

  • Page 20: About Onvif Media Profiles

    ONVIF media profiles from this page. About camera settings The Video > Camera Settings page provides access to advanced image settings for the Axis product. About image appearance To change Image Appearance go to the menus under Setup > Video > Camera Settings.
  • Page 21 An overlay image is a static image superimposed over the video stream. The image, for example a company logo, is first uploaded to the Axis product and then used to provide extra information or to mask a part of the image.

  • Page 22: About Privacy Masks

    Privacy masks cannot be bypassed using the VAPIX® application programming interface (API). The Privacy Mask List (Video > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled.

  • Page 23: How To Configure The Live View Window

    Select Enable recording button to enable recording from the Live View page. This button is available when using the AMC viewer. The recordings are saved to the location specified in the AMC Control Panel. See About AXIS Media Control (AMC) on page 13.

  • Page 24: About Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...

  • Page 25: About Events

    How to set up motion detection and add a network share: 1. Go to Applications to start and configure AXIS Video Motion Detection. See the online help. 2. Go to System Options > Storage and set up the network share. See page 42.

  • Page 26: How To Add Recipients

    Recording – Triggers the rule when the Axis product records to the storage device. The recording status trigger can be used to notify the operator, for example by flashing LED lights, if the product has started or stopped to record to the storage device.
  • Page 27 Secure (HTTPS). Send Notification Specify login information for the HTTPS server and validate Send Video Clip the server’s certificate. If there is a proxy between the Axis product and the HTTPS server, also specify the proxy settings. Network Share Send Images A network share can also be used as a storage device for recorded video.

  • Page 28: How To Create Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see About certificates on page 33.

  • Page 29: About Recordings

    Note The recording’s start date and time is set according to the Axis product’s date and time settings. If the Axis product is configured to use a time zone different from the local time zone, make sure to configure the Recording time filters according to the product’s time zone.

  • Page 30: How To Export A Video Clip

    About continuous recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 40. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Page 31: About Languages

    About languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 32: About System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 33 4. Set the HTTPS Connection Policy for the different user groups. 5. Click Save to enable the settings. To access the Axis product via the desired protocol, in the address field in a browser, enter https:// for the HTTPS protocol and http:// for the HTTP protocol.

  • Page 34: Date & Time

    Date & Time The Axis product’s date and time settings are configured under System Options > Date & Time. Current Server Time displays the current date and time (24h clock). The time can be displayed in 12h clock in the text overlay (see below).

  • Page 35: Network

    IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Page 36 5. Close the command prompt when the product responds with Reply from 192.168.0.125:... or similar. 6. Open a browser and type http://<IP address> in the Location/Address field. For other methods of assigning the IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/support Note •...
  • Page 37 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 38 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).
  • Page 39 Note All AXIS Video MIB traps are enabled when SNMP v1/v2c traps are enabled. It is not possible to turn on or off specific traps. SNMP v3 provides encryption and secure passwords. To use traps with SNMP v3, an SNMP v3 management application is required.

  • Page 40: Storage

    To prevent corruption of recordings, the SD card should always be unmounted before it is ejected. The SD card is automatically mounted when the card is inserted into the Axis product or when the product is started. A manual mount is only required if the card has been unmounted and not ejected and re-inserted.
  • Page 41 If autoformat is enabled, only use new or empty SD cards. Any data stored on the card will be lost when the card is inserted into the Axis product. To enable automatic formatting, follow these steps: 1. Open the Axis product’s webpages and go to Setup > System Options > Storage. 2. Click SD Card. 3. Under General Settings, select Autoformat to.

  • Page 42: Maintenance

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 43: Support

    System Overview To get an overview of the Axis product’s status and settings, go to System Options > Support > System Overview. Information that can be found here includes firmware version, IP address, network and security settings, event settings, image settings and recent log items.

  • Page 44: How To Reset To Factory Default Settings

    About system options File Upload Files, for example webpages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Page 45: Troubleshooting

    The latest version may contain a correction that fixes your particular problem. The current firmware version in the Axis product is displayed in the page Setup > Basic Setup and in Setup > About.

  • Page 46: Symptoms, Possible Causes And Remedial Actions

    Status indicator. 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/support Symptoms, possible causes and remedial actions Problems upgrading the firmware Firmware upgrade failure If the firmware upgrade fails, the product reloads the previous firmware.
  • Page 47 Check in the AMC Control Panel (H.264 tag) that video processing is not set to Decode only key frames. Lower the image resolution. The maximum frames per second is dependent on the utility frequency (60/50 Hz) of the Axis product. Video and image problems, general Image unsatisfactory Check the video stream and camera settings under Setup >...
  • Page 48 AXIS P1245 Network Camera Troubleshooting Video cannot be recorded Check that the SD card is not write protected (that is, read only). SD card cannot be mounted Reformat the SD card and then click Mount. NOTICE TICE TICE Formatting the card will remove all content, including all recordings, from the SD card.

  • Page 49: Specifications

    Resetting the product to factory default settings. See page 44. • Connecting to an AXIS Video Hosting System service. See page 36. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...
  • Page 50 Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
  • Page 51 User Manual Ver. M1.7 AXIS P1245 Network Camera Date: July 2017 © Axis Communications AB, 2017 Part No. 1744576...
