Summary of Contents for Schwaiger AV500

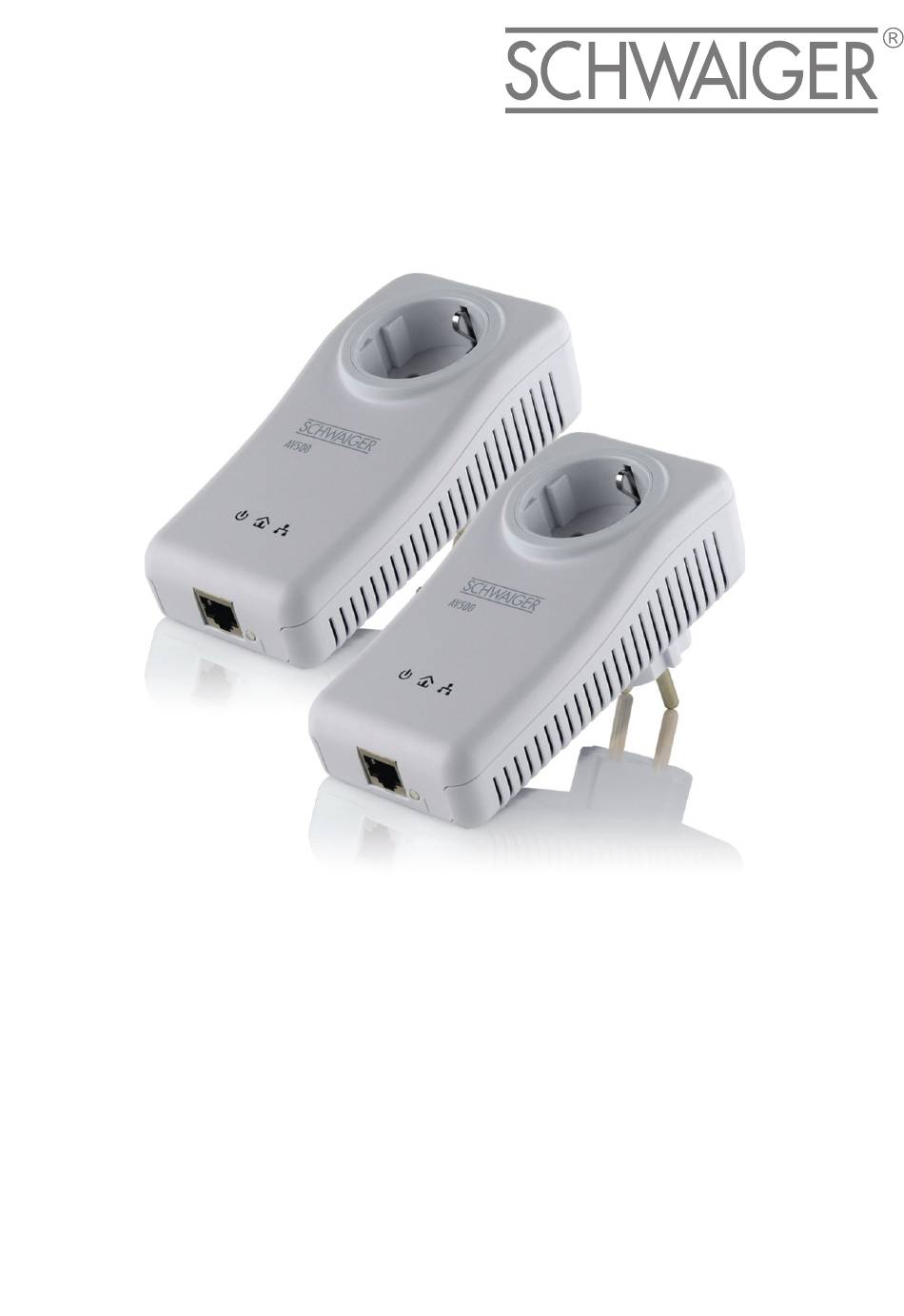

- Page 1 Inhouse-Powerline AV 500...
- Page 2 While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. The manufacturer shall be liable only to the degree specified in the terms of sale and delivery. The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from the manufacturer.
-
Page 3: Table Of Contents
Contents 1 Introduction ........................ 4 What does HomePlug stand for? ................4 1.1.1 AV500 adapter ....................5 Practical examples ....................6 1.2.1 Internet solution for single users ..............6 1.2.2 Networking between two computers ............6 1.2.3 Internet solution for multi-users ..............6 2 Installation ........................7 System requirements ....................7... -
Page 4: Introduction
The available performance and effort required for the installation also com- pares favourably to traditional methods—HomePlug technology now attains speeds you would expect from other LAN technologies. AV500... -
Page 5: Av500 Adapter
Introduction 5 1.1.1 AV500 adapter The adapter provides a transmission rate of up to 500 Mbps via the electrical wiring in the building. It also facilitates larger data transfer between the com- puters in your network via the electrical wiring. -
Page 6: Practical Examples
6 Introduction Practical examples 1.2.1 Internet solution for single users 1.2.2 Networking between two computers 1.2.3 Internet solution for multi-users AV500... -
Page 7: Installation
Connection and display elements The adapter is fitted with 3 control lamps (LEDs) as well as a network con- nection and an encryption button. LEDs AV500 green Lit steady when the adapter is ready for operation; flashes Power when the adapter is in standby mode. -
Page 8: Connecting The Adapter
Plug the adapter into a free electrical outlet. In order to connect multiple HomePlug devices into a self-contained, secure network, now continue with the installation of the configuration. For more information, refer to the chapter 'Configuring the HomePlug network'. AV500... -
Page 9: Configuring The Homeplug Network
The following section contains exact instructions on the basis of possible net- work scenarios: Encrypting a new AV500 network consisting of two AV 200 adapters If the adapters are still in their factory default states, press the encryption but- tons on both adapters for at least ten seconds, until the Power LED goes out and starts to flash. - Page 10 (one second), then press the encryption button of your new AV500 adapter (one second) within two minutes. That's it! The new AV500 adapter is now integrated in your network. To integrate additional adapters in your network, repeat the above steps.
- Page 11 Configuring the HomePlug network 11 Excluding a AV500 adapter from your network To exclude a AV500 adapter from an existing network, press its encryption button for at least ten seconds. The device will be assigned a new randomly generated password and will thus no longer be able to access the network.
-
Page 12: Appendix
12 Appendix Appendix Technical data AV500 Standards Ethernet specification IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI/X HomePlug AV Protocols CSMA/CD Transfer rate 500 Mbps Transfer procedure Asynchronous Modulation OFDM—1155 Carrier, 1024/256/64-QAM, QPSK, BPSK Range 300 m via power supply... -
Page 13: Bandwidth Optimisation
• You should connect all additional network devices that are connected to a multiple socket to the mains power supply via the electrical socket integra- ted into the AV500 adapter. To take full advantage of the filter function of the AV500 adapter and to improve data transmission in the network, always plug the multiple sokket into the electrical socket of the AV500 adapter. -
Page 14: Important Safety Instructions
• device. the device has been exposed to rain or water. • the device does not work, even though the operating instructions • have been followed properly. the device’s case is damaged. • AV500... -
Page 15: Disposal Of Old Devices
In the case of any externally visible damage arising from transport (e.g. damage to the housing), the person carrying out the transportation and the sender should be informed immediately. On discovery of damage which is not externally visible, the transport company AV500... - Page 16 This is also applicable if the purchaser's domic- ile is not known at the time of institution of proceedings. h) The law of the Federal Republic of Germany is applicable. The UN commercial law does not apply to dealings between the manufacturer and the purchaser. AV500...
- Page 17 MANUFACTURER INFORMATION Dear customer, should you require technical assistance and your dealer or installer was not able to help, please contact our technical support. Schwaiger GmbH Wuerzburger Straße 17 90579 Langenzenn Hotline: +49 (0) 9101 702-299 www.schwaiger.de info@schwaiger.de Business hours:...
