- Page 1 Wireless Headset EHS Guide Designer and Manufacturer of Professional Headsets for Contact Centres & Unified Communications...

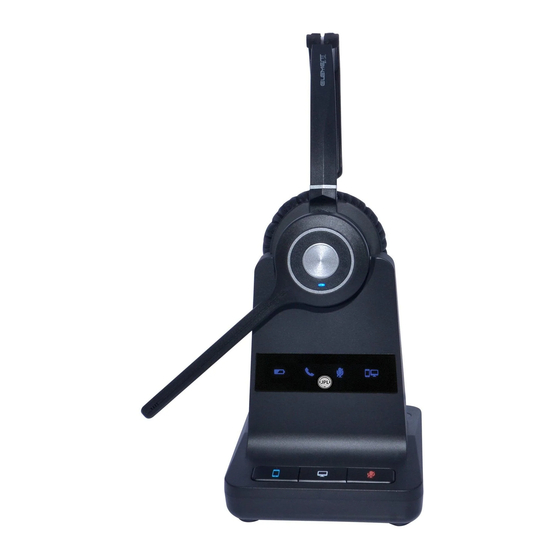

- Page 2 Wireless Headset EHS User Guide Introduction Electronic Hook Switch(EHS) provides a solution that enables remote operation of answer/end functions for wireless headsets with various phones, thus eliminating the need for a mechanical handset lifter. Mobility With an EHS solution you can roam within your premises and still do business on the spot.
- Page 3 Wireless Headset EHS Compatibility Table Phone Model EHS Adapter JPL Part No AASTRA / MITEL EHS-3 5360, 5370, 5370IP, 5380, 5380IP 6771, 6773, 6775, DS-DHSG Cable *6735i, *6737i, 6739i, *6753i, *6755i, *6757i, 6757iCT, 6771IP, 6773IP, 6775IP, 6865i, 6867i, 6869i, 7434IP, 7444IP...
- Page 4 Wireless Headset EHS Compatibility Table Phone Model EHS Adapter JPL Part No HTEK EHS-17 UC804, / 804T / 804G / 806 / 806T / 806G / 840 / 842 / 860 / 862 / 913 / 923 / 924 / 926...
- Page 5 Aastra/Mitel EHS setup guide Aastra/Mitel Phones 6771/6773ip/6775ip 7434ip/7444ip 5370,5370ip 5380/5380ip EHEHS-3 ① Connection Diagram ② ③ ④ ⑤ ⑥ //// ⑦ ① ⑧ ⑨ ⑩ ⑪ ⑫ ① DS-DHSG cable(EHS-3) : RJ-45(8P8C) to RJ-45(8P8C) and RJ-9(4P4C)
-
Page 6: Connection Diagram
Aastra/Mitel Phones 6735i, 6737i, 6753i, 6755i, 6757i EHEHS-3 Aastra EHS kit Connection Diagram ② Yellow End Green End ③ ① Note : Aastra DHSG cable kit is available from your Aastra reseller ① DS-DHSG cable(EHS-3) : RJ-45(8P8C) to RJ-45(8P8C) and RJ-9(4P4C) ②... - Page 7 Alcatel EHS Setup guide Alcatel Phones 4028EE 4038EE 4068EE EHS-7 Connection Diagram ② //// ③ ① ① MSH cable(EHS-7) : RJ-12(6P6C) and 3.5Ø plug to RJ-45(8P8C) and RJ-9(4P4C) ② EHS Port ③ Audio Port...
- Page 8 Avaya EHS Setup guide Avaya Phones 1408 1416 1608 1616 2410 5410 6224D+M 6416D+M 9404 9408 9504 EHS-4 9508 9608 9610 9611 9620 9621 9630 9640 9641 9650 9570 1408,1416,2410,4630 5410, 6410D+M,6424D+M, Connection Diagram 9404 9406,9504,9508 //// ③ ① ② ④...
- Page 9 Cisco EHS Setup guide Cisco Phones 6945 7942G 7945G 7962G 7965G 7975G 7821/7841/7861 8811/8841/8845 EHS-2 8851/8861/8865 Connection Diagram //// ① ② ① : EHS Adapter (EHS- 2) : RJ-45 to RJ-12 ② : Telephone cord (RJ-9 to RJ-9) Cable length : 600mm Note : Make sure that Electronic Hook switch should be enabled in Cisco Unified Communications Manager Administration.
- Page 10 Cisco Phones 8961 9951 9971 1408,1416,2410,4630 EHS-12 Connection Diagram ③ ② ① : HHC EHS Adapter ( EHS-12) : RJ-45(8P8c) and RJ-9(4P4C) to USB A-type Plug ① ② : USB Port(A-type Female)
- Page 11 Ericsson-LG EHS Setup guide Ericsson-LG Phones LIP-9010 LIP-9020 LIP-9030 LIP-9040 EHS-11 Need Ericsson-LG EHSA Kit Connection Diagram ④ //// ② ① ③ ① LG EHS Adapter (EHS-11) : RJ-45(8P8C) to RJ-45(8P8C) ② Headset Port ③ EHS Adapter : supplied from Ericsson-LG reseller ④...
- Page 12 Panasonic EHS setup guide Panasonic Phones NT553 NT556 DT543 DT546 HDV230 NT543 HDV330 HDV430 EHS-1 Connection Diagram ③ //// ① ④ ① Panasonic EHS Adapter (EHS-1) : RJ-45(8P8c) to 3.5Ø Plug (3 poles) ② Headset Port ③ EHS Port ④ Audio cables : RJ-9(4P4C) to 3.5Ø Plug (3 poles)
- Page 13 Polycom EHS Setup guide Polycom Phones IP 320 IP 321 IP 330 IP 331 IP 335 IP 435 IP 450 IP 550 IP 560 IP 650 EHS-5 IP 670 VVX 300 VVX 310 VVX 400 VVX 410 VVX 500 VVX 600 VVX 1500 1408,1416,2410,4630 5410,...
- Page 14 Connection Diagram ③ ① ② ① Polycom EHS Adapter (EHS-5) : RJ-45(8P8c) to 5-Pin Plug ② Audio cables : RJ-9(4P4C) to RJ-9(4P4C) ③ EHS Port Note 1: Phone must be running SIP application 3.1 or higher and BootROM 4.1.0 or later. Note 2: Phone must be running SIP application 3.0.2 or higher and BootROM 4.1.0 or later.
- Page 15 ShoreTel EHS Setup guide ShoreTel Phones IP 565g IP 560g IP 560 IP 265 IP 230 IP 230g EHS-8 Connection Diagram ③ //// ① ② ① Power cable (RJ-45 to RJ-12) ② Telephone cord (RJ-9 to RJ-9) : Cable length : 600mm ③...
- Page 16 Siemens/Unify EHS Setup guide Siemens Phones OpenStage 40/60/80 OptiPoint Base/Adv/Eco EHS-3 Connection Diagram (For OpenStage series) //// ① ① DS-DHSG EHAS adpter (EHS-3) : RJ-45(8P8C) and RJ-9(4P4C) to RJ-45(8P8C)
- Page 17 Connection Diagram (For OpenScape and Optipoint series) //// ① ① DS-DHSG EHAS adapter (EHS-3) : RJ-45(8P8C) and RJ-9(4P4C) to RJ-45(8P8C)
- Page 18 SNOM EHS Setup guide SNOM Phones SNOM 300/320/360/370 SNOM 720/760 SNOM 820/821/870 EHS-6 SNOM EHS Adaptor Connection Diagram ① ③ ② ⑤ ④ //// ① Cord (RJ-12 to RJ-12) supplied by manufacturer of EHS Adapter – snom 3xx/snom 820 Cord (RJ-45 to RJ-12) supplied by manufacturer of EHS Adapter – snom 821/snom 870 ②...
- Page 19 Toshiba EHS Setup guide Toshiba Phones IP5022-SD IP5122-SD IP5122-SDC IP5131-SDL IP5132-SD DP5022-SD DP5022-SDM EHS-8 DP5032-SD DP5122-SD DP5130-FSDL DP5130-SDL DP5132-SD Connection Diagram //// ① ② ③ ① Power cable (RJ-45 to RJ-12) ② Telephone cord (RJ-9 to RJ-9) : Cable length : 600mm ③...
- Page 20 Yealink EHS Setup guide Yealink Phones T48S/T46S/T46G T42S/T42G/T41S EHS-6 T41P/T40G/T40P T29G/T27G/T27P Yealink EHS Adaptor Connection Diagram ② ③ ① ④ ⑤ //// ① Cord (RJ-12 to RJ-12) supplied by manufacturer of EHS Adapter ② EHS Adapter supplied by Yealink ③ Cord (RJ-45 to RJ-45) supplied by manufacturer of EHS Adapter ④...
