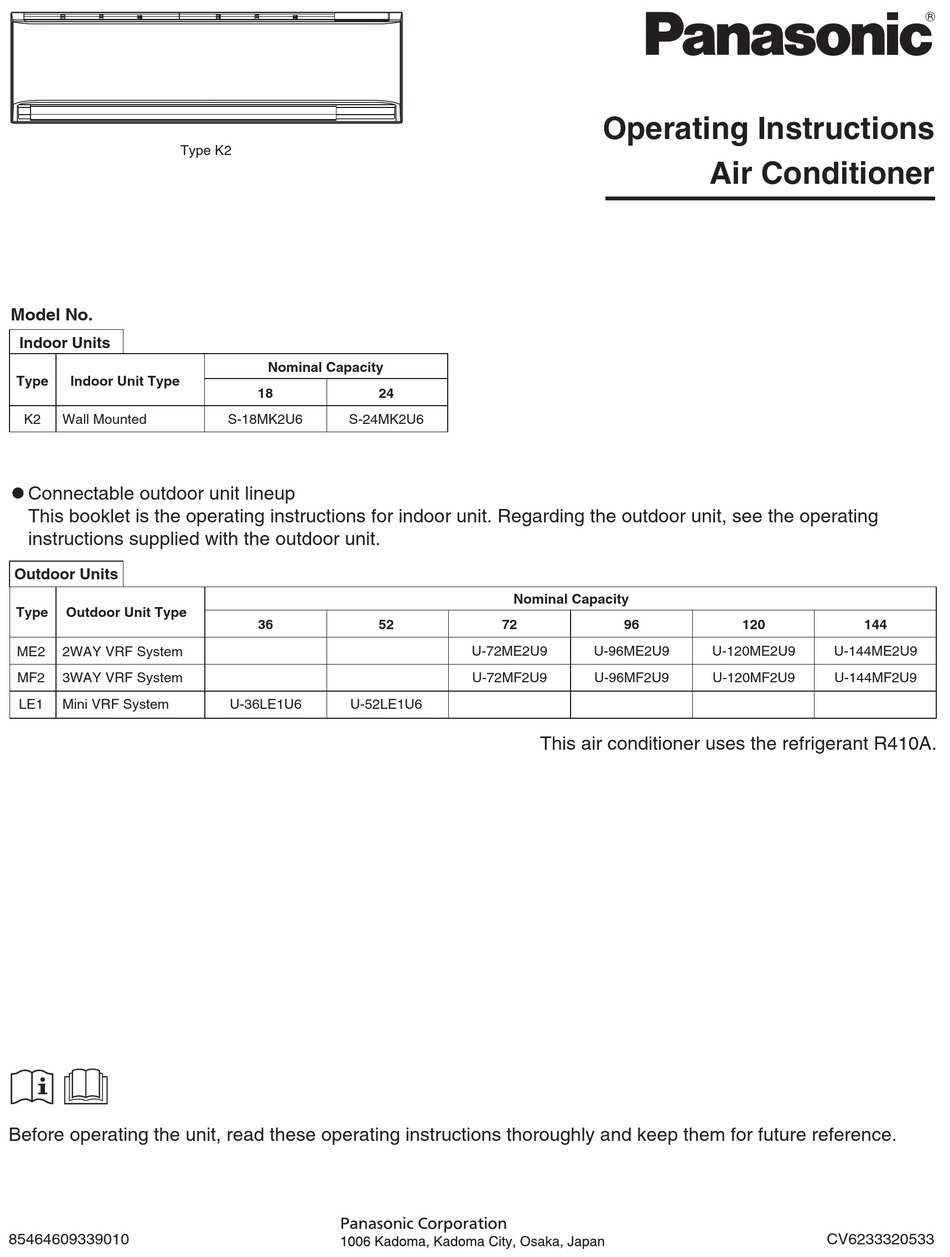

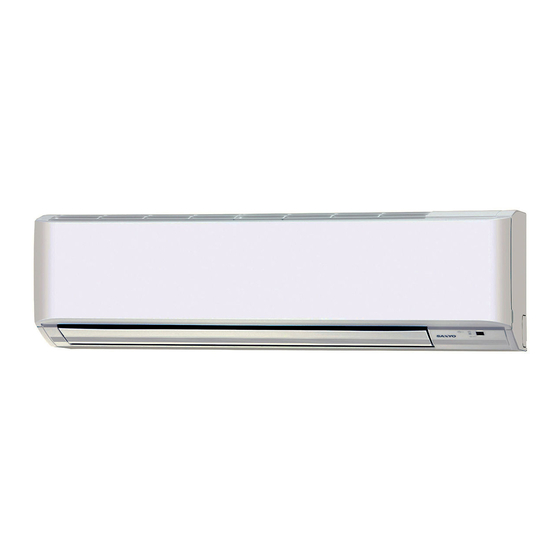

Type K2
Model No.
Indoor Units
Type
Indoor Unit Type
K2
Wall Mounted
 Connectable outdoor unit lineup
This booklet is the operating instructions for indoor unit. Regarding the outdoor unit, see the operating
instructions supplied with the outdoor unit.
Outdoor Units
Type
Outdoor Unit Type
ME2
2WAY VRF System
MF2
3WAY VRF System
LE1
Mini VRF System
Before operating the unit, read these operating instructions thoroughly and keep them for future reference.
85464609339010
Nominal Capacity
18
24
S-18MK2U6
S-24MK2U6
36
52
U-36LE1U6
U-52LE1U6
Operating Instructions
Nominal Capacity
72
96
U-72ME2U9
U-96ME2U9
U-72MF2U9
U-96MF2U9
This air conditioner uses the refrigerant R410A.
Air Conditioner
120
144
U-120ME2U9
U-144ME2U9
U-120MF2U9
U-144MF2U9
CV6233320533
