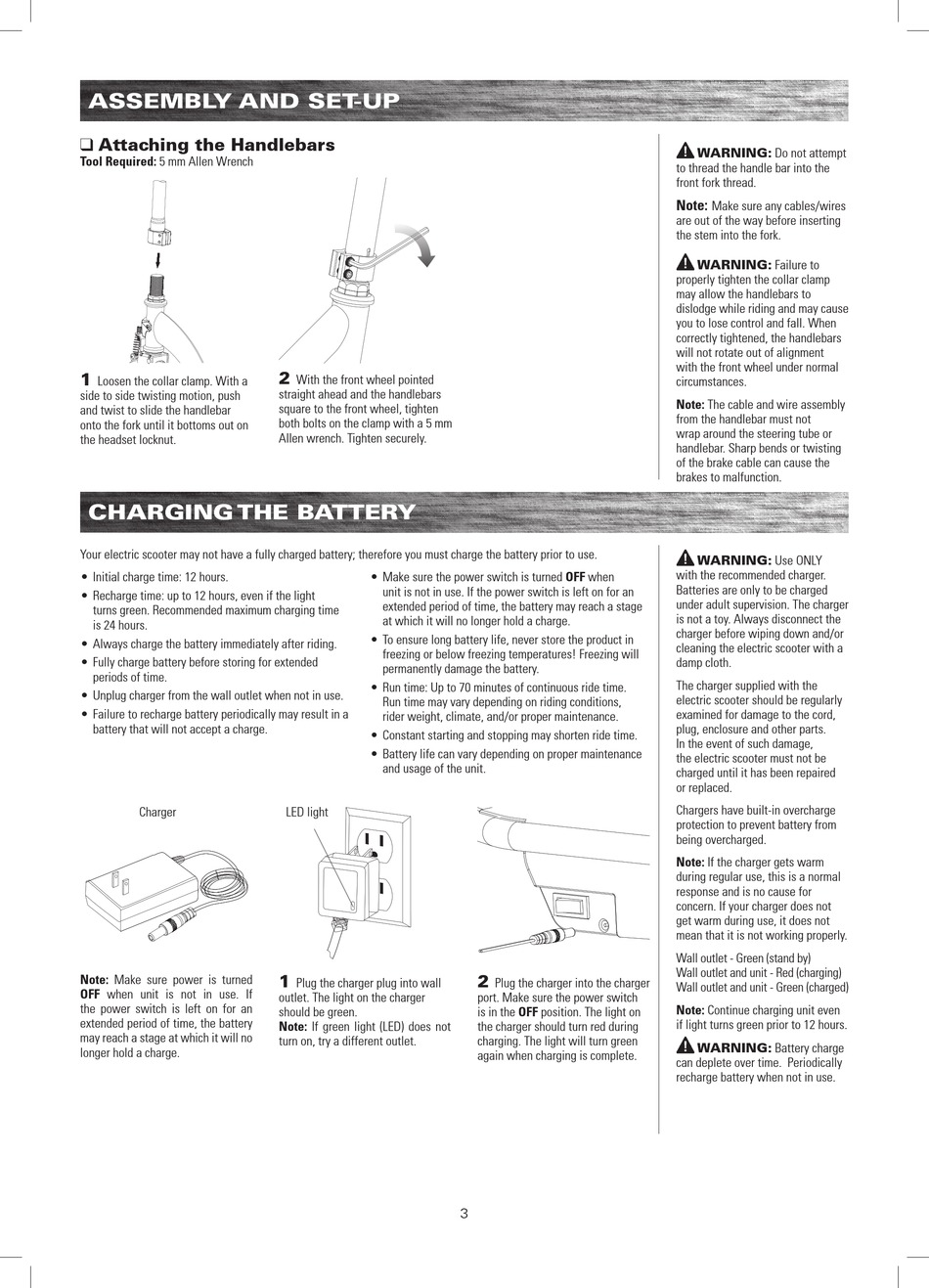

Assembly And Set-Up; Charging The Battery - Razor Power Core 90 Owner's Manual

ASSEMBLY AND SET -UP
q Attaching the Handlebars
Tool Required: 5 mm Allen Wrench
1
Loosen the collar clamp. With a
side to side twisting motion, push
and twist to slide the handlebar
onto the fork until it bottoms out on
the headset locknut.

CHARGING THE BATTERY

CHARGING THE BATTERY
Your electric scooter may not have a fully charged battery; therefore you must charge the battery prior to use.
• Initial charge time: 12 hours.
• Recharge time: up to 12 hours, even if the light
turns green. Recommended maximum charging time
is 24 hours.
• Always charge the battery immediately after riding.
• Fully charge battery before storing for extended
periods of time.
• Unplug charger from the wall outlet when not in use.
• Failure to recharge battery periodically may result in a
battery that will not accept a charge.
Charger
Note: Make sure power is turned
OFF when unit is not in use. If
the power switch is left on for an
extended period of time, the battery
may reach a stage at which it will no
longer hold a charge.
2
With the front wheel pointed
straight ahead and the handlebars
square to the front wheel, tighten
both bolts on the clamp with a 5 mm
Allen wrench. Tighten securely.
• Make sure the power switch is turned OFF when
unit is not in use. If the power switch is left on for an
extended period of time, the battery may reach a stage
at which it will no longer hold a charge.
• To ensure long battery life, never store the product in
freezing or below freezing temperatures! Freezing will
permanently damage the battery.
• Run time: Up to 70 minutes of continuous ride time.
Run time may vary depending on riding conditions,
rider weight, climate, and/or proper maintenance.
• Constant starting and stopping may shorten ride time.
• Battery life can vary depending on proper maintenance
and usage of the unit.
LED light
1
Plug the charger plug into wall
outlet. The light on the charger
should be green.
Note: If green light (LED) does not
turn on, try a different outlet.
2
Plug the charger into the charger
port. Make sure the power switch
is in the OFF position. The light on
the charger should turn red during
charging. The light will turn green
again when charging is complete.
3
WARNING: Do not attempt
to thread the handle bar into the
front fork thread.
Note:
Make sure any cables/wires
are out of the way before inserting
the stem into the fork.
WARNING: Failure to
properly tighten the collar clamp
may allow the handlebars to
dislodge while riding and may cause
you to lose control and fall. When
correctly tightened, the handlebars
will not rotate out of alignment
with the front wheel under normal
circumstances.
Note: The cable and wire assembly
from the handlebar must not
wrap around the steering tube or
handlebar. Sharp bends or twisting
of the brake cable can cause the
brakes to malfunction.
WARNING: Use ONLY
with the recommended charger.
Batteries are only to be charged
under adult supervision. The charger
is not a toy. Always disconnect the
charger before wiping down and/or
cleaning the electric scooter with a
damp cloth.
The charger supplied with the
electric scooter should be regularly
examined for damage to the cord,
plug, enclosure and other parts.
In the event of such damage,
the electric scooter must not be
charged until it has been repaired
or replaced.
Chargers have built-in overcharge
protection to prevent battery from
being overcharged.
Note: If the charger gets warm
during regular use, this is a normal
response and is no cause for
concern. If your charger does not
get warm during use, it does not
mean that it is not working properly.
Wall outlet - Green (stand by)
Wall outlet and unit - Red (charging)
Wall outlet and unit - Green (charged)
Note: Continue charging unit even
if light turns green prior to 12 hours.
WARNING: Battery charge
can deplete over time. Periodically
recharge battery when not in use.
