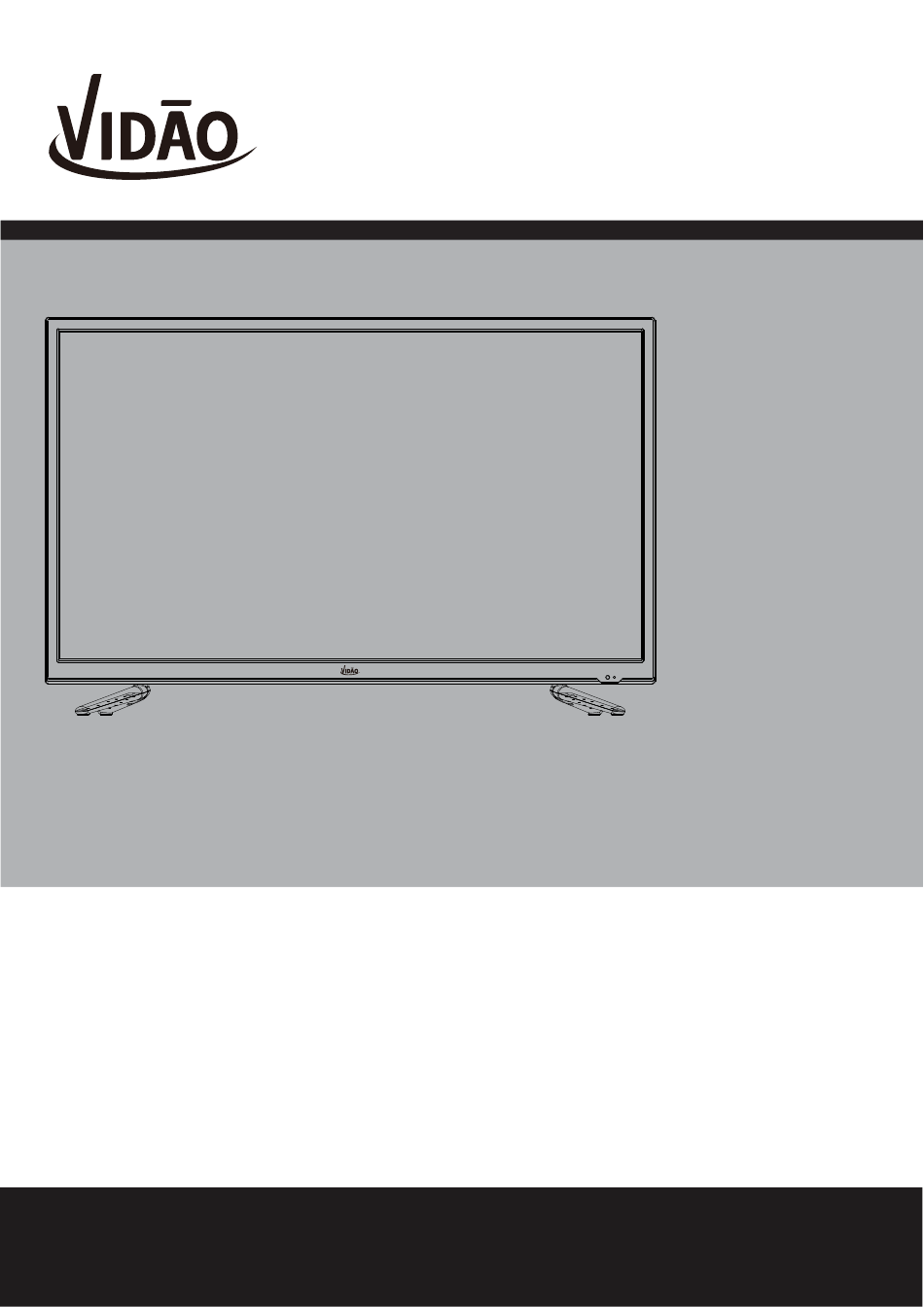

- Page 1 40V40UHD Ver 1.0 USER’S MANUAL 40” 4K ULTRA HD TELEVISION Use a VIDĀO HDMI Cable for the Best Possible Video & Sound For technical assistance or troubleshooting please call 1-855-998-4326 or visit www.sibrandssupport.com...
-
Page 2: Important Safety Instructions
Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. 40V40UHD-1... - Page 3 To protect the TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV from lightning and power-line surges. 40V40UHD-2...
- Page 4 If the TV has been dropped or the cabinet has been damaged. f. If the TV exhibits a distinct change in performance. 40V40UHD-3...
- Page 5 “Blu-ray Disc” is a trademark of Blu-ray Disc Association, registered in the U.S. and other countries. MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of the MHL, LLC. All other trademarks are the property of their respective owners and are used for descriptive and/or compatibility purposes only. 40V40UHD-4...
-
Page 6: Table Of Contents
Closed Captions.................................24 CEC Settings................................25 Parental Control ................................26 Channel Settings Favorite ..................................28 Show / Hide ..................................28 Channel Label ................................28 TV Channel Setup & Channel Auto Scan ........................29 Zoom Modes ................................30 USB Modes ..................................31 MHL Setting ................................32 ................................33 Troubleshooting ................................34 40V40UHD-5... -
Page 7: Introduction
Ver 1.0 USER’S MANUAL 50” LED TELEVISION For technical support, the VIDAO Technical Support Center is available 9:00AM to 9:00PM (Monday to Friday) and 9:00AM to Noon (Saturday) for technical assistance or troubleshooting. To contact us by phone, please call 1-855-383-2411. -
Page 8: Installing The Base
Place the TV face down on a soft cloth or cushion. Position base as shown. Insert 4 screws M4X30 (provided) through the holes in the bottom of the base into the post holes and tighten securely. Do not over-tighten. 40V40UHD-7... -
Page 9: Remote Control
For non-major TV functions not listed, use the remote control included with this TV. o program your Cable / Satellite remote to operate this VIDAO TV, follow the programming instruc- tions included with your providers’ remote and use the following codes. -
Page 10: Overview
Remote Control Overview 40V40UHD 40V40UHD-9... - Page 11 27. MTS Press to select a program’s second audio channel (if available). 28. CCD Press to select closed caption subtitles (if available) OFF - ON - CC ON MUTE Press number keys to enter channel numbers. 29. NUMBER KEYS 40V40UHD-10...
-
Page 12: Tv Overview
5. INPUT - After connecting your DVD, cable box, etc. select the appropriate input source to view. Press the INPUT button to display the input options. Press the CH+ / CH- buttons to highlight the input source and press the VOL+ button to select. 40V40UHD-11... -
Page 13: Rear Panel
Note: MHL compatible devices can be connected to HDMI4 via a HDMI-to-MHL adapter (not included). Note: HDMI1 has ARC function. 6. CABLE-ANTENNA - Connect an antenna or cable connection for television reception. Note: Use an outdoor antenna, cable or satellite for best reception. 7. USB Input Port supports MP3 and JPEG. 40V40UHD-12... -
Page 14: Installation
On the back of your device, connect the HDMI cable form HDMI out on device to HDMI in on the panel. Source Select How to Use • Press the INPUT button on the remote, then use the qp arrows to highlight HDMI. Press ENTER . Component HDMI1 HDMI2 HDMI3 HDMI4 Media 40V40UHD-13... -
Page 15: Connect A Digital Cable Box, Satellite Recei Ver, Or Dvd Player With A Component Connection
*NOTE: The picture will be black & white if hooked up incorrectly. You must hook up audio cables separately. HDMI3 HDMI4 How to Use Media • Press the INPUT button on the TV remote. Then use the qp arrow buttons to highlight Component . Press ENTER. 40V40UHD-14... -
Page 16: Connect A Digital Cable Box, Satellite Recei Ver, Or Dvd Player With Composite Cables (Yellow, Red, & White)
Match and insert the yellow, red, and white A / V cables into the Source Select device and TV. How to Use • Press the INPUT button on the remote. Then use the qp arrow buttons to highlight AV . Press ENTER. Component HDMI1 HDMI2 HDMI3 HDMI4 Media 40V40UHD-15... -
Page 17: Connecting The Power And Basic Cable Connection
Connect the RF coaxial (75 ohm) cable from Wall Outlet existing roof top / in door antenna, or wall outlet. • Finger tighten the Coaxial / RF Cable end to the TV input on the panel. Coaxial / RF Cable (not included) 40V40UHD-16... -
Page 18: Connection To A Home Theater System
ENTER. Surround Left Surround Right Speaker Speaker How to Use (Audio) Select the appropriate input from your audio equipment. *NOTE: Refer to the User Manual from your home theater equipment for recommended audio settings. 40V40UHD-17... -
Page 19: Tv Setup
Select the time zone & Daylight saving time Use the q arrow button to select Go to next step and press the Select the time zone & Daylight saving time MENU Select Move Return Move Select Exit MENU u button to complete the step. 40V40UHD-18... - Page 20 Once Channel Auto Scan has ended, Initial Setup is RF CH Total Found : complete. You may now begin enjoying your TV, or make further adjustments to the TV settings which are MENU explained in the following pages of this manual. Move Select Exit 40V40UHD-19...
-
Page 21: Picture Setting
Cool (more bluish tone), Normal or Warm setting. • Advanced Settings Adjust advanced video features to fine tune the picture. Press u button to enter. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40V40UHD-20... -
Page 22: Audio Settings
Sets the sound to the second audio program. • Audio Language Press down q arrow button to highlight Audio Language. Press t u button to select English - Francais - Español. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40V40UHD-21... -
Page 23: Date & Time Settings
Navigate using the t u arrow buttons to turn this feature On or Off. • Clock and Date are automatically set the first time the tuner receives a broadcast channel. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40V40UHD-22... -
Page 24: Setup Settings
Restore Default Setup Wizard Setup Wizard Select Move Exit Move Next Return • Setup Wizard Set the first time installation. Press ENTER / u button to enter. NOTE: Closed Caption and Advanced are features described on the following pages. 40V40UHD-23... -
Page 25: Closed Captions
Navigate using the t u arrow the u arrow button to enter a menu buttons to select Off, Service 1-6. with options to customize text fonts, colors and opacities. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40V40UHD-24... -
Page 26: Cec Settings
Connect. Press the u highlight Root Menu. Press the u arrow button to connect TV and arrow button to enter DVD menu. DVD Player. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40V40UHD-25... -
Page 27: Parental Control
TV-G General Audience PG-13 Parents Strongly Cautioned TV-PG Parental Guidance Suggested Restricted TV-14 Parents Strongly Cautioned NC-17 No One Under 17 Permitted TV-MA Mature Audience Only Adults Only NOTE: PRT Setting and Reset RRT are not user adjustable settings. 40V40UHD-26... - Page 28 Appropriate for Children 13 years old and up 16 ans+ Appropriate for Children 16 years old and up 18 ans+ Mature Audience Only Move Select Return Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40V40UHD-27...
- Page 29 Next Next Return Return Return Next Return Next Next Return 40V40UHD-28...
-
Page 30: Favorite
Press the t u arrow button to highlight Air. • Press the q arrow button to highlight Auto Scan and press ENTER. Press the u arrow button to highlight YES and press ENTER to begin Auto Scan. NOTE: Channel Auto Scan may take several minutes to complete. 40V40UHD-29... -
Page 31: Zoom Modes
Stretches certain 4:3 content and may reduce visible black bars. 3. ZOOM viewing widescreen content. The Zoom effect will crop images somewhat. 4. CINEMA n eliminating visible side black bars. It may also eliminate or reduce black bars on certain widescreen movies. 40V40UHD-30... -
Page 32: Usb Modes
Media Source Select Media in the Component HDMI1 HDMI2 HDMI3 HDMI4 Media 40V40UHD-31... -
Page 33: Mhl Setting
Connect a MHL cable to the micro USB port on the device, then connect the other end of the cable to the HDMI4 (MHL) jack on the TV. HDMI Cable with MHL-Enabled Device HDMI-to-MHL Adatper You should now see the screen image of your connected device on the TV. 40V40UHD-32... - Page 34 480p / 720p / 1080i / 1080p / 2160p 3840x2160 3000:1 178° 178° 16.7M 120 W 2 x 8W 36.6” (W) x 21.7” (H) x 3.3” (D) 24.2 lbs Weight (may vary 10%) Composite Video Y Pb Pr HDMI HDMI with MHL CABLE-ANTENNA Optical AUDIO out 40V40UHD-33...
-
Page 35: Troubleshooting
• Re-connect the antenna or cable wiring. • Restore default settings. See page Remote control does not function • Replace batteries with new ones. • Check that battery polarity is correct. • Point remote directly at the TV’s IR receiver. See page 8. 40V40UHD-34... - Page 36 We warrant this product to be free from defects in material and workmanship under normal use for a one-year period from the original date of purchase from an authorized VIDAO dealer. We will repair or replace the unit free of charge should it become defective under this warranty, providing you, the original purchaser, submit proof of purchase (sales slip) along with the TV and all accessories.
