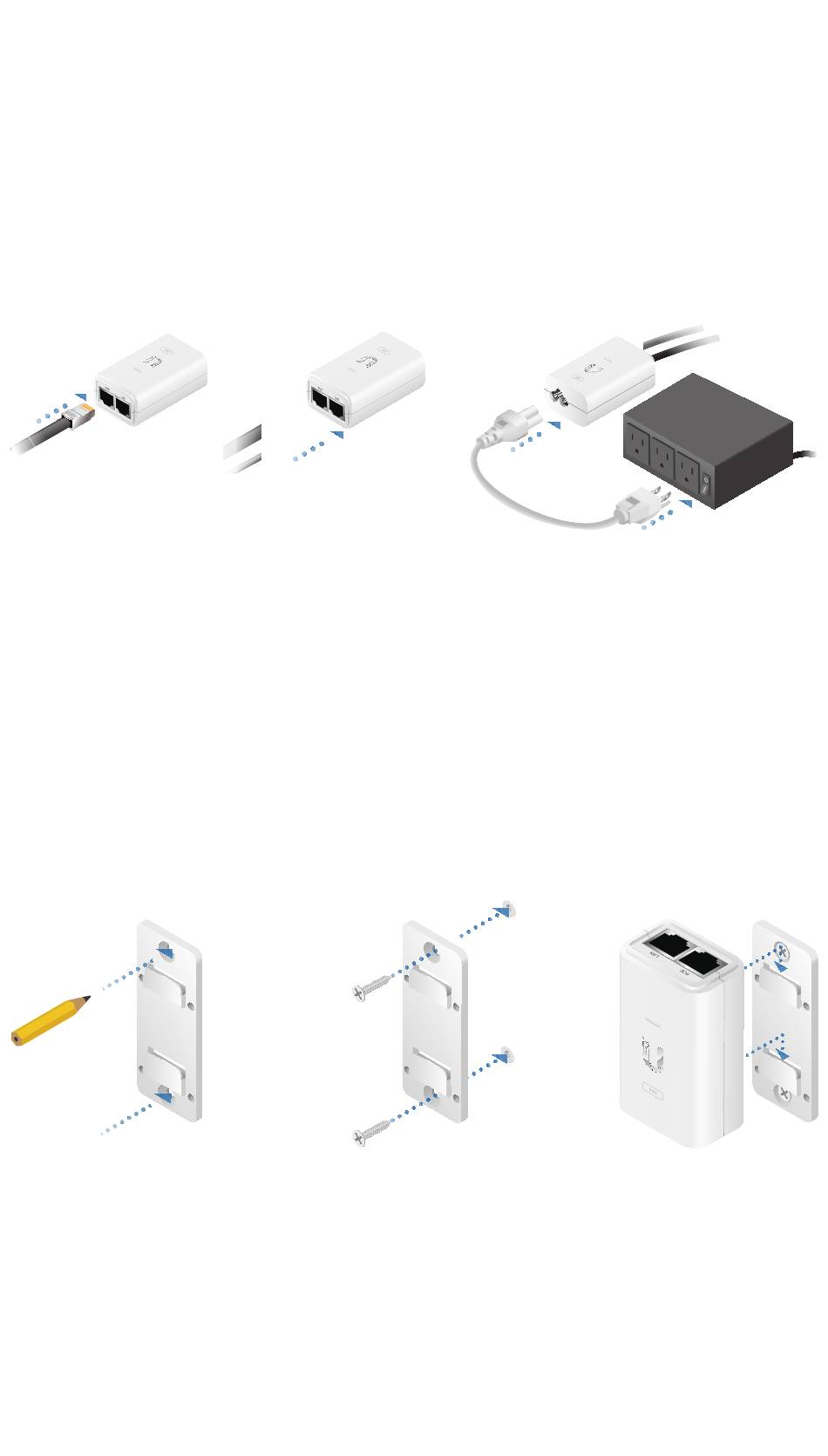

Connecting Power over Ethernet

1. Connect the Ethernet cable from the Ethernet port of the
LiteBeam ac to the adapter's POE port.
2. Connect an Ethernet cable from your LAN to the adapter's
LAN port.
3. Connect the Power Cord to the adapter's power port.
Connect the other end of the Power Cord to a power outlet.
Mounting the PoE Adapter (Optional)
1. Remove the PoE Mounting Bracket from the adapter, place
the bracket at the desired location, and mark the two holes.
2. Pre‑drill the holes if necessary, and secure the bracket
using two fasteners (not included).
3. Align the adapter's slots with the tabs of the PoE Mounting
Bracket, and then slide the adapter down.
