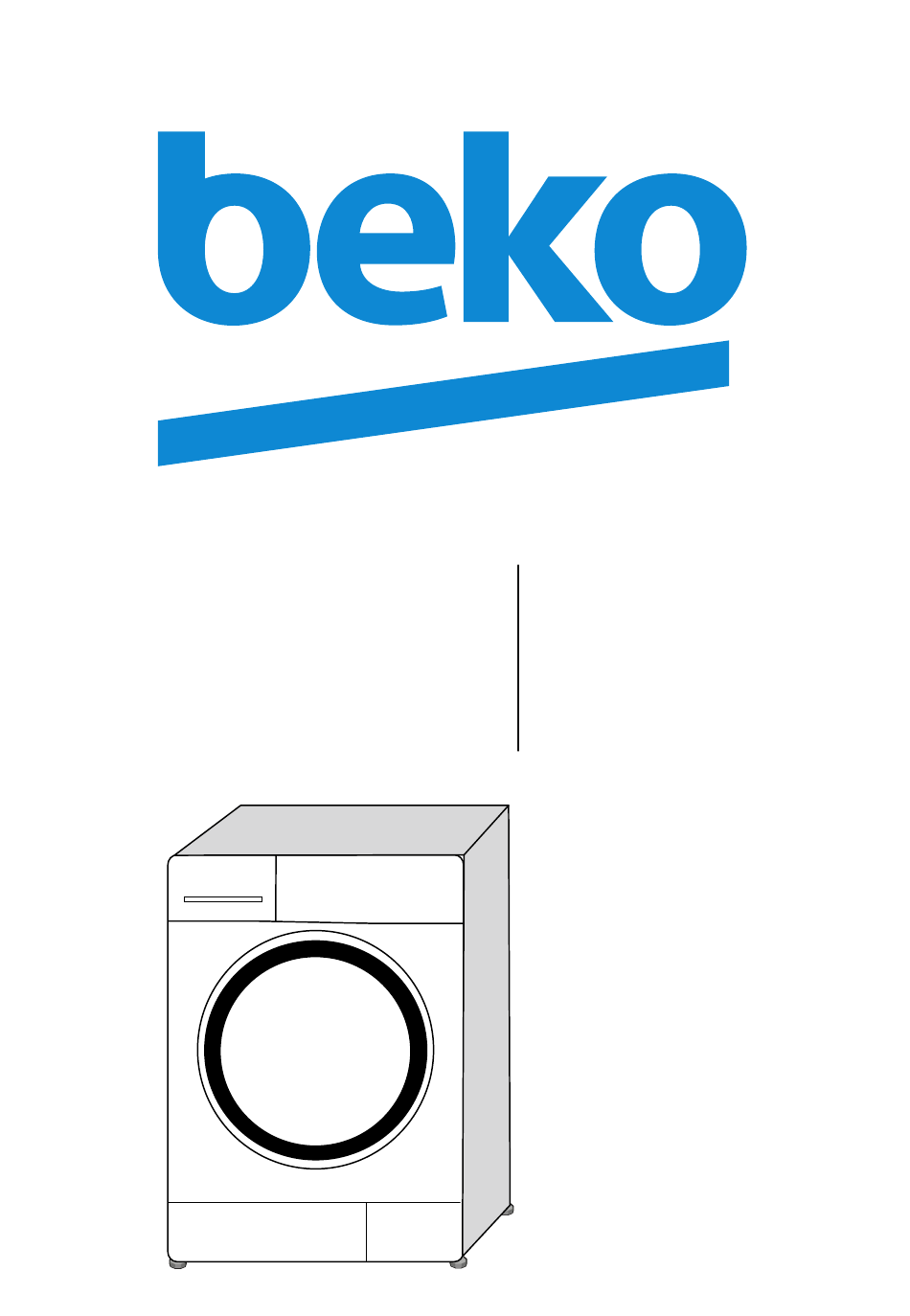

- Page 1 Washing Machine EV 7102 User’s Manual Document Number 2820524450 / 18-12-14.(11:45)
- Page 2 1 Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warran- 1.1 General safety • This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children must not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone. Children of less than 3 years...
- Page 3 • Use detergents, softeners and supplements suitable for automatic washing ma- chines only. • Follow the instructions on the textile tags and on the detergent package. • The product must be unplugged during installation, maintenance, cleaning and repairing procedures. • Always have the installation and repairing procedures carried out by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons. • If the power cable is damaged, it must be replaced by the manufacturer, after sales service or a similarly qualified person (preferably an electrician) or someone designated by the importer in order to avoid possible risks. • Place the product on a rigid, flat and level surface. • Do not place it on a long-pile rug or similar surfaces. • Do not place the product on a high platform or near the edge on a cascaded surfa- • Do not place the product on the power cable. • Never use sponge or scrub materials. These will damage the painted, chrome pla- ted and plastic surfaces. 1.2 Intended use • This product has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use. • The product must only be used for washing and rinsing of laundry that are marked accordingly. • The manufacturer waives any responsibility arisen from incorrect usage or trans- portation. 1.3 Children's safety • Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children. • Electrical products are dangerous for the children. Keep children away from the product when it is in use. Do not let them to tamper with the product. Use child lock to prevent children from intervening with the product.
- Page 4 1.4 Package information • Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. 1.5 Disposing of the waste product • This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point.
- Page 5 Installation product on a solid and flat floor that has sufficient load carrying capacity! Refer to the nearest Authorised Service Agent for installation of the product. To make the • Do not place the product on the power product ready for use, review the information cable. in the user manual and make sure that • Do not install the product at places the electricity, tap water supply and water where temperature may fall below 0ºC.
- Page 6 2.3 Removing the transportation locks 2.4 Connecting water supply INFORMATIONS WARNING Do not remove the transportation The water supply pressure required to run locks before taking out the packaging the product is between 1 to 10 bars (0.1 – 1 reinforcement. MPa). It is necessary to have 10 – 80 liters of water flowing from the fully open tap in one Remove the transportation safety bolts minute to have your machine run smoothly. before operating the washing machine! Attach a pressure reducing valve if water Otherwise, the product will be damaged.
- Page 7 • The end of the hose should not be bent, connection to check for water leaks at the connection points. If any leaks occur, turn off it should not be stepped on and the the tap and remove the nut. Retighten the nut hose must not be pinched between the carefully after checking the seal. To prevent drain and the machine. water leakages and damages caused by them, • If the length of the hose is too short, use keep the taps closed when the machine is not it by adding an original extension hose. in use. Length of the hose may not be longer 2.5 Connecting to the drain than 3.2 m. To avoid water leak failures,...
- Page 8 2.7 Electrical connection Connect the product to a grounded outlet INFORMATIONS protected by a fuse complying with the values Use an anti-limescale suitable for the in the "Technical specifications" table. Our washing machines. company shall not be liable for any damages Some water might have remained in the that will arise when the product is used product due to the quality control processes without grounding in accordance with the local in the production. It is not harmful for the regulations. product. • Connection must comply with national 2.9 Disposing of packaging material regulations.
- Page 9 Preparation • Put small size clothes such as infant's socks and nylon stockings in a laundry 3.1 Things to be done for energy bag or pillow case. saving • Place curtains in without compressing Following information will help you use the them. Remove curtain attachment product in an ecological and energy-efficient items. manner. • Fasten zippers, sew loose buttons and • Operate the product in the highest mend rips and tears.
- Page 10 3.4 Correct load capacity 3.6 Using detergent and softener Detergent Drawer The maximum load capacity depends on the The detergent drawer is composed of three type of laundry, the degree of soiling and the compartments: washing programme desired. - (1) for prewash The machine automatically adjusts the - (2) for main wash amount of water according to the weight of...
- Page 11 • If you are using liquid detergent, do 3.9 Using softeners not forget to place the liquid detergent Pour the softener into the softener compartment of the detergent drawer. cup into the main wash compartment • Use the dosages recommended on the (compartment nr. 2). package. 3.7 Choosing the detergent type • Do not exceed the (>max<) level The type of detergent to be used depends on marking in the softener compartment. the type and colour of the fabric. • If the softener has lost its fluidity, dilute • Use different detergents for coloured it with water before putting it in the and white laundry.
- Page 12 3.10 Tips for efficient washing Clothes Light colours and Delicates/ Colours Dark colours whites Woolens/Silks (Recommended (Recommended (Recommended (Recommended temperature temperature temperature range temperature range range based range based based on soiling based on soiling on soiling level: on soiling level: level: 40-90ºC) level: cold-40ºC) cold-40ºC) cold-30ºC) It may be necessary Powder and to pre-treat the liquid detergents...
- Page 13 Operating the product 4.1 Control panel 1 - Programme Selection knob (Uppermost position On / Off) 2 - Door open indicator 3 - Programme Follow-up indicator 4 - Start / Pause button 5 - Spin Speed Adjustment button 13 / EN Washing Machine / User’s Manual...
-
Page 14: Cottons
4.2 Preparing the machine 4.3 Main programmes Make sure that the hoses are connected Depending on the type of fabric, use the tightly. Plug in your machine. Turn the tap on following main programmes. completely. Place the laundry in the machine. • Cottons Add detergent and fabric softener. Use this programme for your cotton laundry (such as bed sheets, duvet and pillowcase Programme selection sets, towels, bathrobes, underwear, etc.). Your Select the programme suitable for the type, laundry will be washed with vigorous washing quantity and soiling degree of the laundry action for a longer washing cycle. in accordance with the "Programme and •... -
Page 15: Delicates
• Delicates 30° 4.6 Spin speed selection Use this programme to wash your delicate Whenever a new programme is selected, the clothes. It washes with a gentle action without recommended spin speed of the selected any interim spin compared to the Synthetics program is displayed on the spin speed programme. -
Page 16: Table Of Contents
4.8 Programme and consumption table Programme Cottons 60º with Prewash 1.65 1400 2.10 1400 Cottons 0.66 1400 Cold 0.15 1400 60** 1.14 1400 Cottons Eco 0.72 1400 1.10 Synthetics 0.58 Cold 0.11 Delicates 30° 0.32 Woollens 40° 0.40 Hand Wash 20° 0.20 Mini 30 0.21 1400 • : Selectable ** : Energy Label programme (EN 60456) ***: If maximum spin speed of the machine is lower then this value, you can only select up to the maximum spin speed. - Page 17 4.9 Starting the programme Adding or taking out laundry Press "Start / Pause" button to switch the Press Start / Pause button to start the machine to pause mode. When the machine programme. Programme follow-up light is switched to pause mode, "Running" light showing the startup of the programme will flashes. Wait until the Loading Door can be turn on. opened. Open the Loading Door and add or Progress of programme take out the laundry. Progress of a running programme can be Close the Loading Door. Press "Start / Pause" followed from the Programme Follow-up button to start the machine.
- Page 18 Maintenance and cleaning 4.12 End of programme "End/Cancel" light on the programme follow- Service life of the product extends and up indicator will light up once the programme frequently faced problems decrease if cleaned comes to an end; and "Door Open" symbol at regular intervals. flashes for 1-2 minutes until the door is ready 5.1 Cleaning the detergent drawer to open. When "Door Open" symbol is steadily Clean the detergent drawer at regular intervals illuminated, the door can be opened.
- Page 19 5.3 Cleaning the body and control pre-wash. Set the temperature to the level panel recommended on the drum cleaning agent which can be provided from authorized Wipe the body of the machine with soapy services. Apply this procedure without any water or non-corrosive mild gel detergents as laundry in the product. Before starting the necessary, and dry with a soft cloth.
- Page 20 5.5 Draining remaining water and Open the filter cover by pulling it from both cleaning the pump filter sides at the top. The filter system in your machine prevents solid items such as buttons, coins and fabric fibers clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend. If the machine fails to drain water, the pump filter is clogged. Filter must be cleaned whenever it is clogged or in every 3 months.
- Page 21 Technical specifications Supplier name or trademark Beko Model name EV 7102 Rated capacity (kg) Maximum spin speed (rpm) 1000 Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz) 230 V / 50Hz Total current (A) Total power (W) 2200 Main model code...
- Page 22 Troubleshooting Program does not start after closing the door. • Start / Pause / Cancel button was not pressed.>>> *Press the Start / Pause / Cancel button. Programme cannot be started or selected. • Washing machine has switched to self protection mode due to a supply problem (line voltage, water pressure, etc.). >>> To cancel the programme, turn the Programme Selection knob to select another programme. Previous programme will be cancelled. (See "Cancelling the programme") Water in the machine. • Some water might have remained in the product due to the quality control processes in the production. >>> This is not a failure; water is not harmful to the machine. Machine vibrates or makes noise. • Machine might be standing unbalanced. >>>...
- Page 23 Foam is overflowing from the detergent drawer. • Too much detergent is used. >>> Mix 1 tablespoonful softener and ½ l water and pour into the main wash compartment of the detergent drawer. INFORMATIONS Put detergent into the machine suitable for the programmes and maximum loads indicated in the “Programme and consumption table”. When you use additional chemicals (stain removers, bleachs and etc), reduce the amount of detergent. Laundry remains wet at the end of the programme • Excessive foam might have occurred and automatic foam absorption system might have been activated due to too much detergent usage. >>>...
