Summary of Contents for BenQ RP652

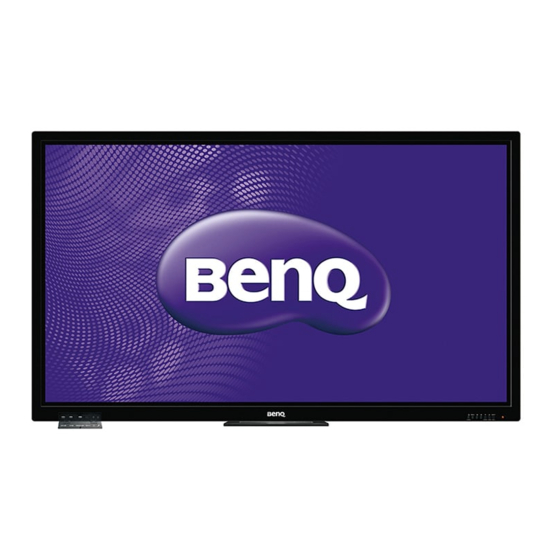

- Page 1 RP652/RP652H/RP702/RP790 Interactive Flat Panel User Manual...
- Page 2 Disclaimer BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents of this document. BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents thereof without obligation to notify any person of such revision or changes.
-
Page 3: Table Of Contents
Important safety instructions..........2 Notes on the LCD panel of this display........2 Safety notice for remote control..........3 Battery safety notice ............... 3 BenQ ecoFACTS................4 Package contents ..............5 Setting up the display ............6 Mounting the display............... 6 Parts of the display and their functions ...... - Page 4 Table of Contents Restoring to the default settings ..........28 Adjusting audio volume level............28 The OSD (On-Screen Display) menu ......29 OSD menu overview ..............29 Operations in the OSD menu............ 30 Picture menu................31 Sound menu................. 32 Setting menu................33 Working with Android OS..........
-
Page 5: Safety Warnings And Precautions
Safety warnings and precautions Safety warnings and precautions THIS EQUIPMENT MUST BE GROUNDED To ensure safe operation, the three-pin plug must be inserted only into a standard three-pin power outlet which is effectively grounded through normal household wiring. Extension cords The lightning flash with arrowhead used with the equipment must have symbol, within an equilateral triangle, is... -
Page 6: Important Safety Instructions
Important safety instructions Important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -
Page 7: Safety Notice For Remote Control
Important safety instructions screen as visible fixed lines and shades. To avoid such damage to the screen, avoid displaying still images (like On-Screen Display menus, TV station logos, fixed/inactive text or icons) for more than two hours. Change the aspect ratio from time to time. Fill the entire screen with the image and eliminate the black bars whenever possible. -
Page 8: Benq Ecofacts
Important safety instructions BenQ ecoFACTS BenQ has been dedicated to the design and development of greener product as part of its aspiration to realize the ideal of the "Bringing Enjoyment 'N Quality to Life" corporate vision with the ultimate goal to achieve a low-carbon society. Besides meeting... -
Page 9: Package Contents
Package contents Package contents Open the sales package and check the contents. If any item is missing or damaged, please contact your dealer immediately. D-Sub (15-pin) LCD display Power cord x4 Remote control cable x1 Pen tray USB cable x1 AAA battery x 2 Touch pen x 2 Quick start guide... -
Page 10: Setting Up The Display
4. Identify the wall mounting screw holes on the back of the display as shown in the illustration. *Screw type: M8 *Screw type: M6 *Screw type: M8 RP652/RP652H RP702 RP790 5. Install the wall mounting bracket on Thickness of the display and attach the display to... - Page 11 Setting up the display • To maintain proper ventilation, keep at least 10 mm of 10 mm (0.39") clear space from the back cover of the display to the wall. • Please consult a professional technician for wall mount installations. The manufacturer accepts no liability for installations not performed by a professional technician.
-
Page 12: Parts Of The Display And Their Functions
Parts of the display and their functions Parts of the display and their functions Front/Rear panel Name Description Extends the USB port of computer to OPS USB at front. OPS USB M-USB Accesses multimedia files on USB drives directly. Connects the USB cable from the display to a computer to TOUCH USB 1 use the touch module. -
Page 13: Input/Output Terminals
Parts of the display and their functions Used to isolate the power supply from the system. • When the switch is set to ON (I), the system will automatically enter standby mode. POWER • When the switch is set to OFF (O), this will completely cut off the power supply. - Page 14 Parts of the display and their functions Receives HDMI signals from an external device. HDMI 3 Connects to the display devices with a HDMI 3 input. HDMI OUT Connects to the network using the Ethernet cable. Receives HDMI signals from an external device. HDMI 4 Receives analog RGB signals from an external device (such as a computer).
-
Page 15: Remote Control
Parts of the display and their functions Remote control POWER Turns the display on or off. INPUT Selects an input source. CH RETURN Returns to the previous program channel. INFO Shows the current input source and resolution. Shows the favorite program channel. 16:9 Changes the aspect ratio of the display image. - Page 16 Parts of the display and their functions M-Player Switches the system into Android OS, then opens the Multimedia app. Write Switches the system into Android OS, then opens the EZ Write 2.0 app. Eye Care Sets the display mode to Classroom mode. Refer Picture menu on page BLANK Hides the image (the screen becomes blank) when...
-
Page 17: Using The Remote Control
Parts of the display and their functions Using the remote control Installing remote control batteries 1. Open the remote control battery compartment cover. 2. Insert the supplied batteries ensuring that the positive and negative marked battery terminals match the (+) and (-) marks in the battery compartment. The supplied batteries are provided for your convenience so that you can operate the display straight away. -
Page 18: Connection
Connection Connection Connecting audio/video signals Pay attention to the following notes when you connect cables: • Please turn off all devices. • Familiarize yourself with the audio/video ports on the display and the devices you want to use. Be aware that incorrect connections may adversely affect picture quality. •... - Page 19 Connection Connecting the digital inputs 1. Connect the HDMI output jack of a computer or A/V device (such as a VCR or DVD player) to the HDMI 3 input jack on the display using an HDMI cable. 2. To view video image from this input, press the INPUT button on the remote control and select HDMI 3.
- Page 20 Connection Connecting the YPbPr component video input 1. Connect the YPbPr jacks on the display to the component output jacks on an A/V device (such as a VCR or DVD player) using a component video cable. 2. Connect the DVD player’s audio outputt jacks to the AV OUT(L/R) jacks on the display using a suitable audio cable.
- Page 21 Connection Connecting the AV and S-Video inputs 1. Connect the AV IN(L/R) jack on the display to the output jack on an A/V device (such as a VCR) using an appropriate video cable. 2. Connect the VCR’s audio output jacks to the AV OUT(L/R) jacks on the display using a suitable audio cable.
-
Page 22: Connecting The Multimedia Inputs
Connection Connecting the multimedia inputs To view multimedia files on the USB flash drive: 1. Plug the USB flash drive in the M-USB port. 2. A dialog box appears on the screen. Select Ok to enter the multimedia mode. USB flash drive The cables are not supplied and should be purchased separately. -
Page 23: Connecting Power
Connection Connecting power Plug one end of the power cord into the Power jack on the display and the other end into an appropriate power outlet (if the outlet is switched, turn on the switch). • The supplied power cord is suitable for use with 110-240V AC power only. •... -
Page 24: Using The Touch Screen
Using the touch screen Using the touch screen You can use the optical touch screen to control your operating system. The touch screen can emulate basic mouse functions and supports multi-touch functions for Windows 7/ 8*. The following table shows a list of gestures you can use on the touch screen. •... - Page 25 Using the touch screen OS functions Gesture actions For Windows Vista and Windows 7 Drag one finger left or right. Selection Quickly drag your finger (Flick) in a desired direction. Pan up / Pan down / Back / Forward Multi-touch functions For Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions 1.
- Page 26 Using the touch screen OS functions Gesture actions • Move two fingers in opposing directions. • Use one finger to pivot around another. Supported by specific applications Tap two fingers simultaneously. The target should be the midpoint between the fingers. Supported by specific applications For Windows XP, Windows Vista and Windows 7...
- Page 27 Using the touch screen Gesture Description Slide to pan Slide is primarily used for panning interactions but can also be used for moving, drawing or writing. Slide can also be used to target small, densely packed elements by scrubbing (sliding the finger over related objects such as radio buttons).
-
Page 28: Important Instructions For Using The Touch Screen
Using the touch screen Important instructions for using the touch screen Please clean the frame when there is sign of malfunction on the touch screen. • Before you clean the screen, make sure the display is turned off, and unplug the power cord. -
Page 29: Basic Operations
Follow the on-screen instructions or the steps below to start up your display and complete the initial setup. 1. Turn on the display. Wait for the display to boot up with the BenQ screen. This may take a moment. -
Page 30: Switching Input Signals
RP652/RP652H and RP702 RP790 Downloading software BenQ may periodically release software updates that may add functions or applications associated with your display. To check if there is a software update available for your device or to obtain the software license key, please visit http://DSdownload.BenQ.com. -
Page 31: Setting Up Internet Connection
Select save and press the OK button. A successful message appears on the screen. Wireless Connection This display only supports BenQ WDRT8192 WiFi dongle. Please contact your local dealer for more information on configuring the wireless connection. -
Page 32: Updating Software
Basic operations Updating software Whenever a new version of software is available, the system will automatically detect the update and will prompt you to download it every time you turn on the display. System Update Find an OTA upgrade package! do you want to update? upgrade package version:1.0.3, size:193M If you want to update the software, select press the OK button on the remote... -
Page 33: The Osd (On-Screen Display) Menu
The OSD (On-Screen Display) menu The OSD (On-Screen Display) menu OSD menu overview Menu name Options/functions See page • Picture Mode • Contrast • Brightness • Hue • Sharpness Picture • Saturation • Color Temperature • Zoom Mode • Image Noise Reduction •... -
Page 34: Operations In The Osd Menu
The OSD (On-Screen Display) menu Operations in the OSD menu Using the control panel buttons Using the remote control 1. Press the MENU button to open the 1. Press the MENU button too open the OSD menu. OSD menu. 2. Press the or button to select an 2. -
Page 35: Picture Menu
The OSD (On-Screen Display) menu Picture menu Screen images and icons in this document are for your reference only. Actual displays may vary. Picture Picture Mode Classroom Contrast Brightness Sharpness Saturation Color Temperature Warm Zoom Mode Full Move Switch Menu:Exit OK/Source:Select Name Description... -
Page 36: Sound Menu
The OSD (On-Screen Display) menu Adjusts the PC display settings. Sets PC image mode to Auto Tune to PC Image synchronize the display automatically, or manually fine-tunes Clock, Mode Phase, Horizontal Position, and Vertical Position. Sound menu Screen images and icons in this document are for your reference only. Actual displays may vary. -
Page 37: Setting Menu
The OSD (On-Screen Display) menu Setting menu Screen images and icons in this document are for your reference only. Actual displays may vary. Setting Menu Time 15 Seconds Recall Move Switch Menu:Exit OK/Source:Select Name Description Adjusts the display time of the OSD menu. Available options are 5 Seconds, 10 Seconds, 15 Seconds, 20 Seconds, 30 Seconds, or Menu Time Always. -
Page 38: Working With Android Os
Working with Android OS Working with Android OS To switch to the Android OS, do the following: 1. Press the INPUT button on the remote control/control panel and select ANDROID. The home screen appears. 2. Select the application that you want to access. •... -
Page 39: About All Apps
Working with Android OS About All Apps To operate the Android OS, use the touch pen or the buttons on the remote control. Application Name/Icon Description Accesses the web pages. Refer to Browser on page 37 Browser ( more information. Manages files stored on the internal memory and the connected storage devices. - Page 40 Working with Android OS EZWrite 2.0 to launch EZWrite 2.0. With this application, you can use the annotation tools to draw on the screen or edit the document. Tap the icon on the left panel to active its function. Tap and hold the icon to access more option.
-
Page 41: Browser
Working with Android OS Browser to launch Browser. With this application, you can view web pages. Before launching the application, make sure your display is properly connected to lnternet. Tap the icon on the top panel to activate its function. Slide on the screen to scroll the viewed page. -
Page 42: File Explorer
Working with Android OS ES File Explorer to launch ES File Explorer. With this application, you can manage the files and applications. Tap the category on the left panel and select the desired folder to browse. Tap a file in the folder, then you can view or edit the file according to the available options. -
Page 43: Wps Office
Working with Android OS WPS Office to launch WPS Office. With this application, you can open almost any file format including PDFs and Microsoft Word, PowerPoint and Excel documents. Tap the icon on the top panel to access its function. Function Description Open... -
Page 44: Multimedia
Working with Android OS Multimedia to launch Multimedia. With this application, you can browse the photos, songs, or videos stored on the internal memory or the connected storage devices. • Tap all to view the all files. • Tap picture to view the photos. Tap the desired photo to view it in full screen. •... - Page 45 Working with Android OS Photo Format Decode Resolution Required DRAM size JPG / JPEG Base-line 15360 x 8640 3.96 Progressive 1024 x 768 Non-interlace 9600 x 6400 3.66 Interlace 1200 x 800 3.66 9600 x 6400 3.66 Audio Format Decode Note Need to be licensed when using AC3 format...
-
Page 46: Settings
Working with Android OS Settings to launch Settings. With this application, you can view and configure the settings of your device. System Settings Application Manager Network Language & input Date & Time Backup / Update About Tap the desired menu option to enter its submenu. Menu Option Description Selects this option to view the total and available storage... -
Page 47: Product Information
Product information Product information Specifications Specifications Item RP652 RP652H RP702 RP790 Backlight 65” 65” 70” 79” Panel size 0.744 mm x 0.744 mm x 0.807 mm x 0.453 mm x Pixel pitch (mm) 0.744 mm 0.744 mm 0.807 mm 0.453 mm... - Page 48 Product information Computer VGA (D-Sub 15-pin) Composite Video (RCA Composite Composite Composite jacks), Video (RCA Video (RCA Video (RCA jacks), jacks), jacks), YPbPr (RCA jacks), YPbPr (RCA YPbPr (RCA YPbPr (RCA Video jacks), jacks), jacks), HDMI 1.3 HDMI 1.3 HDMI 1.3 HDMI 1.3 x5 (MHL x5 (MHL...
- Page 49 APK cannot be installed in the default location unless given permission by the management units. Contact your BenQ dealer for the required support for the management permission. Without management permission, installing function won’t work. There is no guarantee that the self-installed APK can function normally.
-
Page 50: Dimensions
Product information Dimensions RP652 Unit: mm... - Page 51 Product information RP652H Unit: mm...
- Page 52 Product information RP702 Unit: mm...
- Page 53 Product information RP790 Unit: mm...
-
Page 54: Supported Input Signal Resolution
Product information Supported input signal resolution RP652 and RP702 Input source Resolution YPbPr HDMI 640 x 480 @ 60Hz 720 x 400 @ 70Hz 800 x 600 @ 60Hz 1024 x 768 @ 60Hz 1280 x 720 @ 60Hz 1280 x 768 @ 60Hz... - Page 55 Product information RP790 Input source Resolution YPbPr HDMI 640 x 480 @ 60Hz 720 x 400 @ 70Hz 800 x 600 @ 60Hz 1024 x 768 @ 60Hz 1280 x 720 @ 60Hz 1280 x 768 @ 60Hz 1280 x 960 @ 60Hz 1280 x 1024 @ 60Hz 1360 x 768 @ 60Hz 1600 x 1050 @ 60Hz...
-
Page 56: Troubleshooting
Troubleshooting Troubleshooting Problem Solution No picture Check the following: • Is the display turned on? Check the power indicator of the display. • Is the signal source device turned on? Turn on the device and try again. • Are there any loose cable connections? Make sure that all cables are connected firmly. - Page 57 Troubleshooting The remote control does • Check for incorrect battery orientation. not work • Check for dead batteries. • Check your distance and angle from the display. • Check whether remote control is properly being pointed at the display’s remote control sensor window. •...
