- Page 1 OPERATION, INSTALLATION AND MAINTENANCE MANUAL T H X & T H X - D C F l u s h M o u n t E n c l o s u r e Ta k e h e a t i n g t o t h e M a x !
- Page 2 Mounting options Rev A Sep 20 ® The installation of HEATSTRIP Max & Max-DC is simple and easy with the standard mounting brackets supplied. For other more challenging locations there are range of mounting options available - refer to below diagrams. ®...
-
Page 3: Flush Mount Enclosure

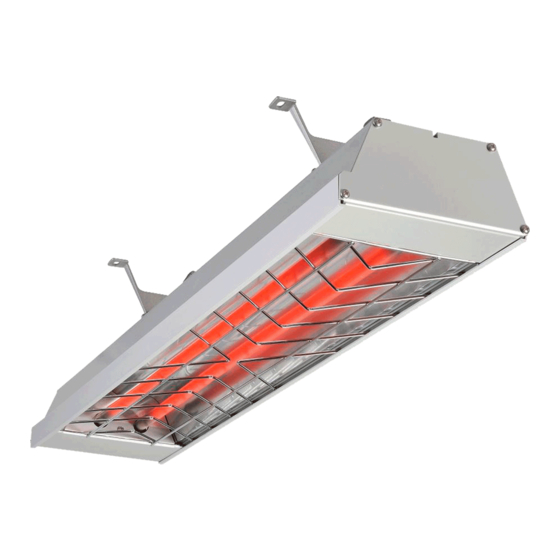

Flush Mount Enclosure ® The Flush Mount Enclosure is an ideal way to neatly install the HEATSTRIP Max or Max-DC into a ceiling. They ® are available for both HEATSTRIP Max models, and are supplied as a one-piece unit for mounting of heaters. Flush mounting can be used with plaster or wood lined ceiling materials. - Page 4 Flush Mount Enclosure dimensions View from top View from underneath PART No MODEL “A” (mm) “B” (mm) “C” (mm) THXAC-030 THX2400 THXAC-031 THX3600 1320 1265 1260 THXAC-030 THX2400DC THXAC-033 THX3600DC 1207.40 1162.40 1157.40...
- Page 5 Installation Clearance Dimensions Shown in the diagrams below are the minimum clearance required for the installation of the Flush Mount En- closure. It is imperative that all cables, backing materials, insulation and other materials are keep clear of the back and View from side View from above unit...
-
Page 6: Installation Instructions
Installation Instructions MODEL “D” DISTANCE FROM END TO BRACKET (mm) Ensure all minimum clearance requirements are met and the materi- THX2400 & als used are compliant to your local building codes. THX2400DC THX3600 & Before installing the flush mount enclosure, ensure the site to be THX3600DC fixed is fully prepared with the hole cut the correct size and the mounting points securely in place. -
Page 7: Maintenance
Safety In operation, this heater is VERY HOT— do not touch any part of the heater while it is turned on. Do not touch any part until 30 minutes after it is turned off. This appliance is not intended for use by persons (including children) with reduced physical, sensory or intellec- tual capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 8: Warranty Terms And Conditions
Thermofilm warrants to the original owner that the FLUSH MOUNT ENCLOSURE product will be free from defects in materi- als and workmanship for a period of 12 months from the date of purchase in accordance with the following warranty terms and conditions.
