Pro-Form PFEL64910.1 User Manual page 9

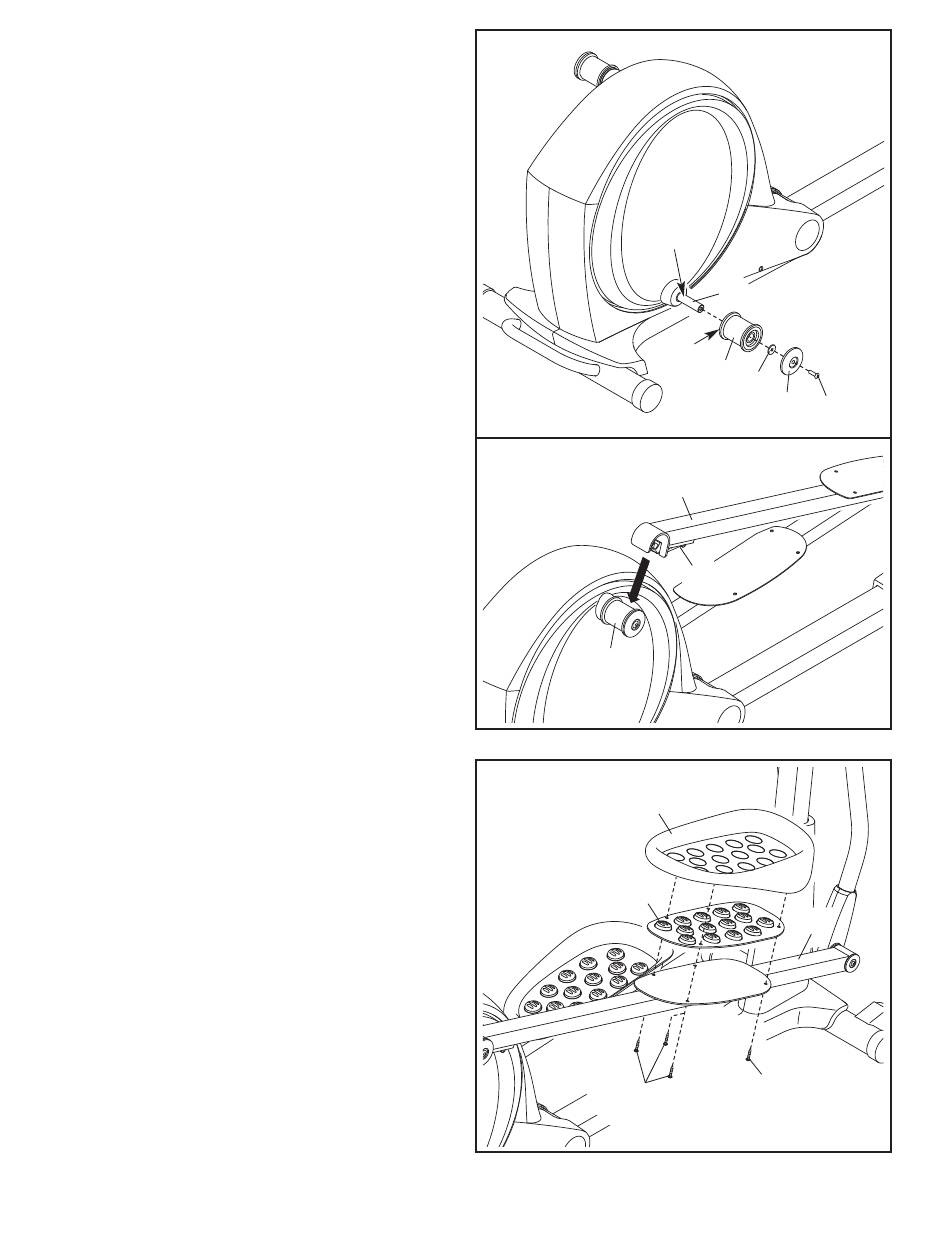

7. See drawing 7a. Apply grease to the axle on
the right Crank Arm (39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39).
Attach the Pedal Arm Sleeve (46) with an M8 x
25mm Patch Screw (113), a Crank Cap (43),
and an M8 x 25mm Washer (45). Tip: Avoid
damaging the Crank Cap when tightening
the Patch Screw.
See drawing 7b. Lift the Latch (50) on the
underside of the Right Pedal Arm (12), and then
press the Right Pedal Arm onto the right
Adjustment Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
8. Identify the Right Pedal (14) and the Right
Pedal Insert (112), which are marked with
"Right" stickers, and orient them as shown.
Set the Right Pedal Insert (112) on the Right
Pedal Arm (12). Then, set the Right Pedal (14)
on the Right Pedal Insert.
Attach the Right Pedal (14) and the Right Pedal
Insert (112) to the Right Pedal Arm (12) with
four M6 x 12mm Patch Screws (111).
Repeat this step on the other side of the
elliptical.
7a
Grease
7b
46
8
14
112
111
9
39
Flat
Side
46
45
43
113
12
50
12
111
