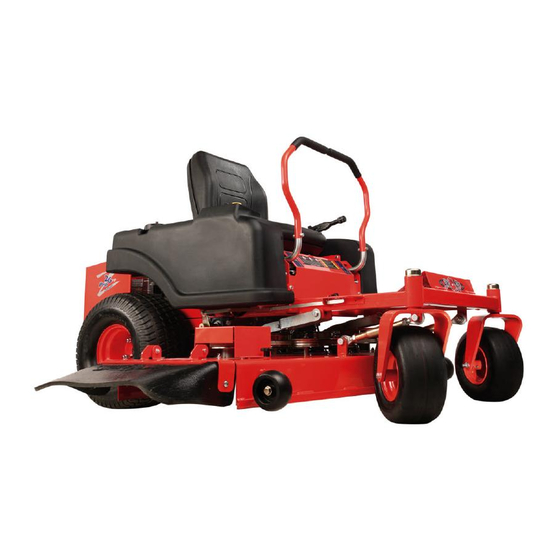

Bad Boy ZT 2600 Owner's, Service & Parts Manual

Zero-turn mower zt series

Hide thumbs Also See for ZT 2600:

Owner's & parts manual (33 pages)

page of 36

/ 36
Bookmarks

Quick Links

Download this manual

ZERO-TURN MOWER

OWNER'S, SERVICE & PARTS MANUAL

For additional information, please see us at

www.badboymowers.com

MODEL

Bad Boy, Inc.

102 Industrial Drive

Batesville, Arkansas 72501

(870) 698-0090

Need help?

Do you have a question about the ZT 2600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bad Boy ZT 2600

Page 1 MODEL ZERO-TURN MOWER OWNER’S, SERVICE & PARTS MANUAL For additional information, please see us at www.badboymowers.com Bad Boy, Inc. 102 Industrial Drive Batesville, Arkansas 72501 (870) 698-0090...
Page 2 TABLE OF CONTENTS Basic Information ................... Section 1 (pages 4–5) Bad Boy Safety Guidelines ................Section 2 (pages 5–6) Operation ....................... Section 3 (pages 6–7) Maintenance ......................Section 4 (page 7) Storage and Transportation ................. Section 5 (page 8) Troubleshooting and FAQ ................Section 6 (pages 8–9) Controls .......................
Page 3 This manual applies to the following equipment: Bad Boy ZT Series ZT 2600 50˝ 26/27 hp Briggs ELS ZT 2700 60˝ 27 hp Kohler COMMONLY USED ITEMS AND PART NUMBERS 60˝ ZT Blade Hi-Lift Fusion Gator Blade Wave Blade 038-6060-00...
Page 4 Congratulations on the purchase of your new Bad Boy Mower! The purpose of this manual is to assist operators in maintaining and operating their machine. The information and instructions in this manual can help you attain years of performance from your new Bad Boy. Also, check out our website to learn more about the Bad Boy family.
Page 5 SECTION 2: MOWER SAFETY GUIDELINES Never allow untrained people to operate this machine. It is the owner’s responsibility to get training and see to it that anyone who has permission to use your machine receives the proper training. Do not mow around people. The factory discharge chute is designed to deflect debris downward, but it could be possible for debris to be thrown in a way that can cause damage to people or property.
Page 6 2.23 Safety warning decals are located on the mower and should always be observed and followed. 2.24 Never operate the mower with the discharge chute open. 2.25 Prevent Fires—Remove grass and debris from engine compartment and muffler area, before and after operating machine, especially after mowing or mulching in dry conditions. 2.26 Do not store machine near open flame or source of ignition, such as a water heater or furnace.
Page 7 The machine could lose traction on a decline or tip backwards on an incline. 3.14 Once you become comfortable with your Bad Boy Mower you will notice your overall mowing time will decrease.
Page 8 SECTION 5: MOWER STORAGE & TRANSPORTATION Keep machine from collecting debris by storing in a covered area while not in use. 5.2 Fuel can harm your machine if left for more than 30 days without changing, especially if the fuel contains ethanol. Never use fuel with more than 10% ethanol by volume. E-15 is not permitted.
Page 9 SECTION 7: CONTROLS Ignition Switch—Bad Boy Mowers have a three position ignition switch: off, run, and start. With key inserted, rotate it clockwise to START position and release key when engine starts, and switch will automatically return to he RUN position.
Page 10 By pulling the arms out the mower can be put in a neutral position. Return the arms to the “forward position for normal operation. 8.4 Your Bad Boy Mower Weighs: ZT SERIES: 800—850 lbs *** Weights fluctuate with the addition of accessories.
Page 11 SECTION 10: MOWER BLADE MAINTENANCE 10.1 Check mower blades after each use. This is essential for maintaining well-groomed turf. Keep the blades sharp. If a dull blade is used for cutting, the grass will tear rather than cut. This could damage the grass leaving a brown frayed top on the grass within a few hours. A dull blade will also require more power from the engine.
Page 12 HOW TO CHOOSE THE RIGHT BLADE Essentially there are only TWO basic styles of mowing blades used or approved for use on our current products: 1) The standard style of mowing blade is essentially designed for cutting grass and effectively discharging the clippings out from the deck to fall onto the lawn or to be captured in a grass collection system.
Page 13 SERVICE SECTION SECTION 1: HYDROSTATIC SYSTEM The hydro overflow tank on a ZT is located behind the seat. Notice the “full cold” line at the bottom of the tank. Use only 20w50 motor oil in this tank. Conventional or synthetic oil may be used. When servicing a mower with a sealed transaxle unit, start by removing the filter skid plate on the bottom of each unit.
Page 14 Once the system is filled with oil, lift rear of mower until rear tires are off the ground. Start engine, release parking brake, stay clear of moving rear tires. Next, pull the neutral bypass levers (located at the rear of the frame, on either side of the muffler), move the drive arms forward and backward 4 to 6 times slowly.
Page 15 Most models have a drain hose installed on the engine, for easier oil changes. All gas engines used by Bad Boy use 10w30 and have an oil capacity of 2 quarts. Bad Boy recommends that the oil and filter be changed every 50 hours of usage.
Page 16 SECTION 4: ELECTRICAL SYSTEM On most larger commercial engines (27 hp and up), the 25 amp main fuse is located about 3” from the starter on the engine. (shown in first image on right). On smaller commercial and light duty commercial mowers, the 25 amp main fuse is located just behind the battery connected to the starter solenoid.
Page 17 PAGE 17...
Page 18 SECTION 5: FRAME For non-suspension models, torque front fork castle nut to 40 ft.lbs. Be sure to spin the fork while torquing the nut to ensure that no bearing damage is done. Be sure to reinstall the cotter pin into the castle nut. Always try to go tighter on the nut to find a castellation for the pin to fit in.
Page 19 The pump belt tensioner is located under the engine and has a grease fitting at its pivot point. Grease at every engine oil change. The deck belt tensioner is located at the rear of the deck and has a grease fitting on its pivot point. Grease at every engine oil change.
Page 20 The large turn buckles on the front of the deck only affect the pitch of the deck or the level from front to back. The deck spring tension is critical. If the tension is too much, it will cause the spring to break. If too loose, the belt can jump off or slip on the pulleys and cause a cut quality issue.
Page 21 MOWING TIPS: • Mow header strips at the ends of the lawn and around flower beds first. Make them wide enough that you can turn the mower around in the already mown section. Then mow back and forth between these header strips overlapping each lap by about 1/8 the width of the mower’s deck.
Page 22 PAGE 22...
Page 23 PAGE 23...
Page 24 PAGE 24...
Page 25 PAGE 25...
Page 26 PAGE 26...
Page 27 PAGE 27...
Page 28 PAGE 28...
Page 29 PAGE 29...
Page 30 PAGE 30...
Page 31 PAGE 31...
Page 32 PAGE 32...
Page 33 PAGE 33...
Page 34 NOTES: __________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ PAGE 34...
Page 35 Bad Boy, Inc. 102 Industrial Drive Batesville, AR 72501 1.866.622.3269 www.badboymowers.com Technical Support: Brad Covington ..............brad.covington@badboymowers.com Bill Hurst ....................bill@badboymowers.com Taylor Prince ................. taylor.prince@badboymowers.com James Russell ..............james.russell@badboymowers.com Warranty: Dustin Tissiere ..................dustin@badboymowers.com Bill Hurst ....................bill@badboymowers.com Parts: Brad Foree .....................brad@badboymowers.com Robert Patterson ..............robert.patterson@badboymowers.com...
Page 36 MODEL For additional information, please see us at www.badboymowers.com Bad Boy, Inc. 102 Industrial Drive Batesville, Arkansas 72501 (870) 698-0090...
