Zephyr ZML-M90BG Use, Care And Installation Manual page 10
Hide thumbs
Also See for ZML-M90BG:
- Use, care and installation manual (48 pages) ,
- Use, care and installation manual (54 pages)
Advertisement

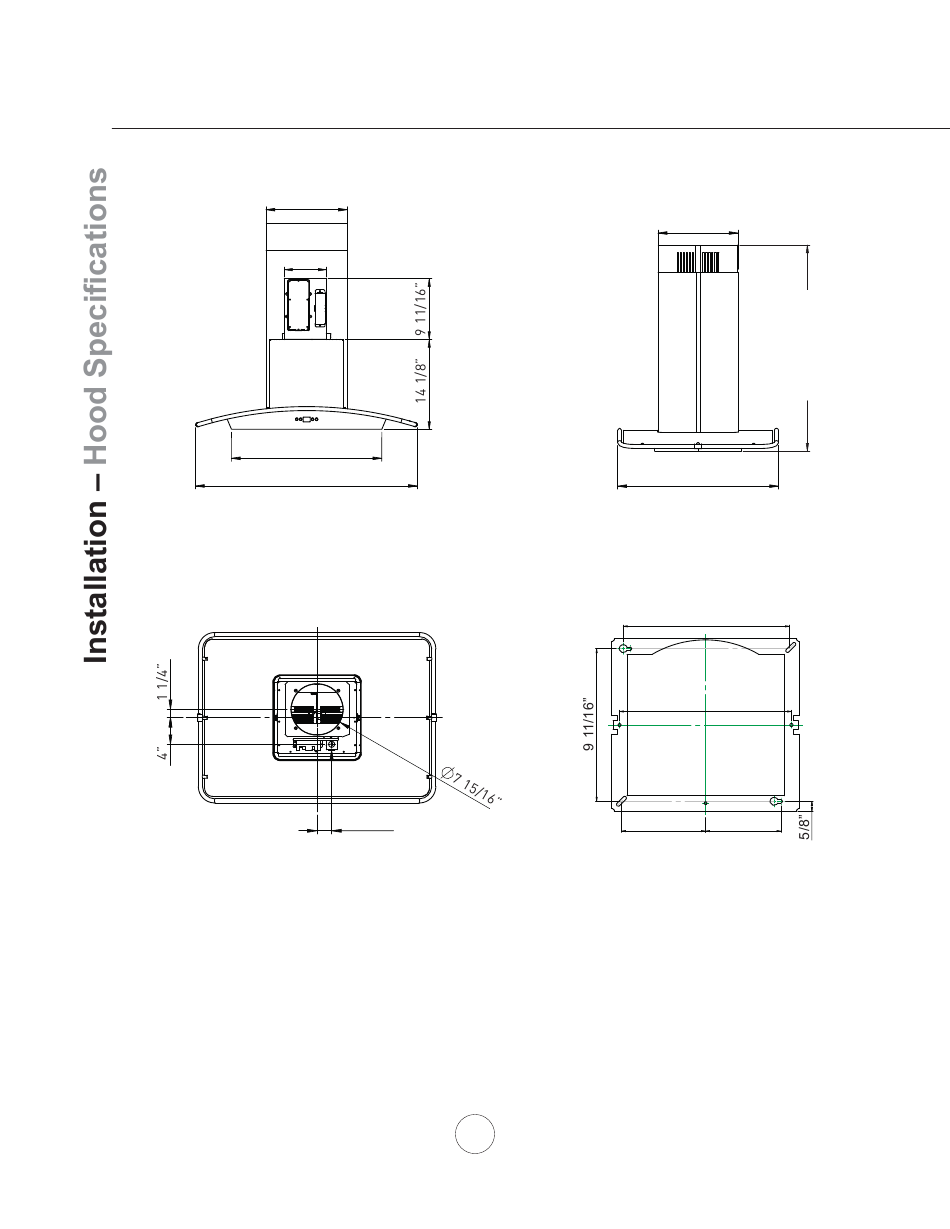

12 15/16"
6 11/16"
23 15/16"
35 5/16", 42"
FRONT
C/L
AC In
2 3/16"
TOP of HOOD
www.zephyronline.com
C/L
TOP SUPPORT FRAME
8
12 3/4"
STANDARD
min. ducted - 28
min. recirc. - 32
max. - 50"
Z1C-03ML
min. ducted - 44"
min. recirc. - 48
max. - 82"
25 9/16"
SIDE
10 9/16"
10 15/16"
C/L
5 5/16"
4 13/16"
(top view)
"
1/2
"
1/2
"
1/2
