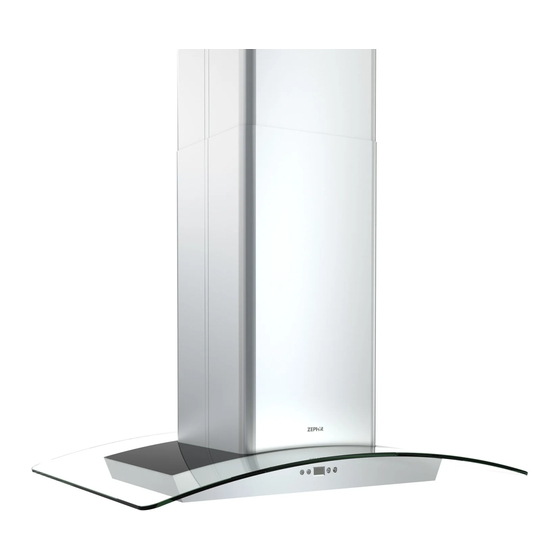

Summary of Contents for Zephyr ZML-M90BG

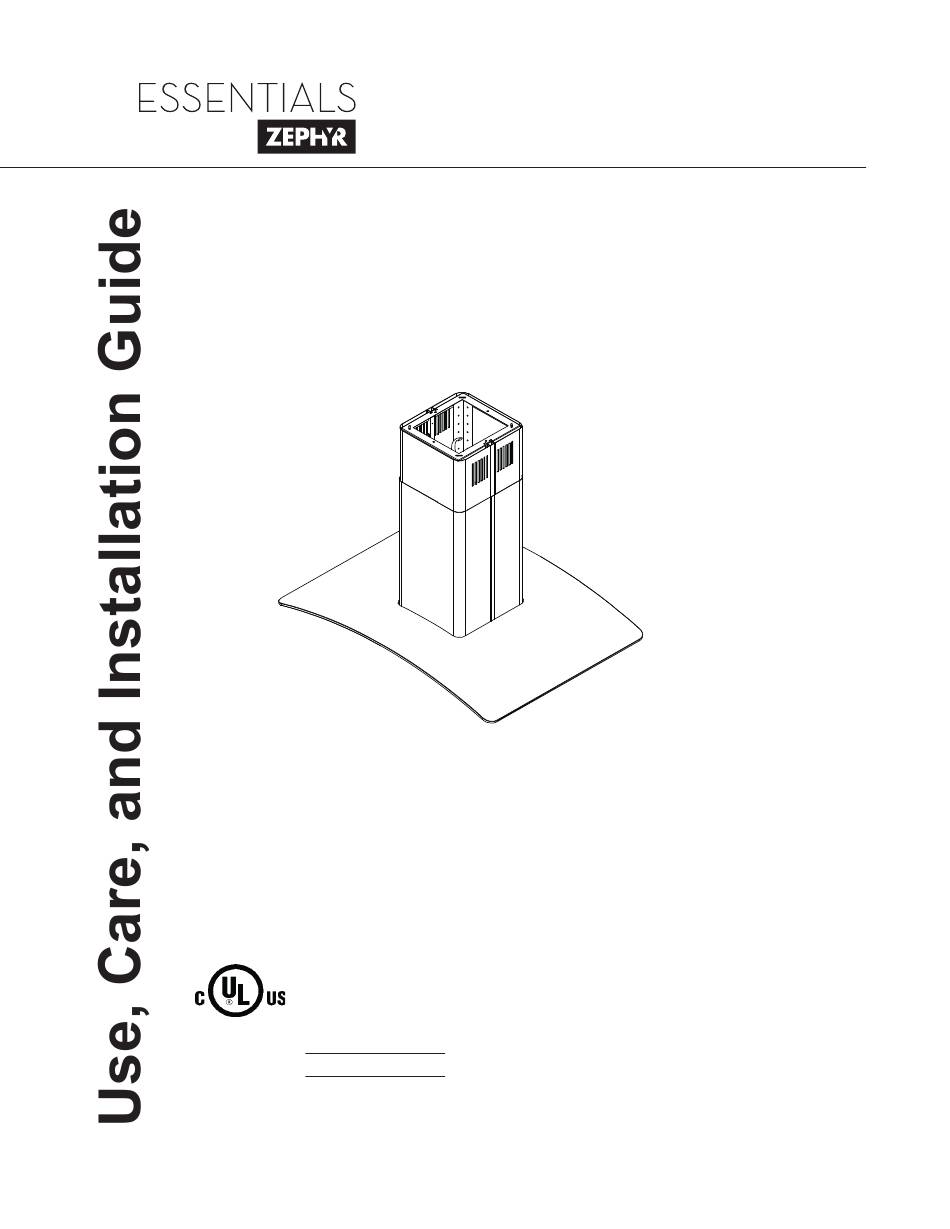

- Page 1 Milano Island ZML-M90BG ZML-M90BS ZML-E42BG ZML-E42BS Model number: Serial Number: MAY11.0201 © Zephyr Corporation...
- Page 2 www.zephyronline.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Hood Specifi cations ........... Mounting the Hood 9-11 ............. Ductless Recirculating ..........FEATURES & CONTROLS Touch Controls ............. User Interface ...............
- Page 4 READ AND SAVE THESE INSTRUCTIONS www.zephyronline.com WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE. WARNING TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a.
-
Page 5: Operation
Electrical Diagram on product. A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary. ZML-M90BG/BS - MAX 215 Watts, 3.5 Amps ZML-E42BG/BS - MAX 215 Watts, 3.5 Amps... -
Page 6: Hardware Package Contents
MODELS: ZML-M90BG/BS , ZML-E42BG/BS PARTS SUPPLIED 1 - Top support frame Front of Hood Cut-Out Shaded Area 1 - Paper ceiling 2 - Top duct covers template 2 - Thick trim pieces 1 - Support frame bracket 2 - Bottom duct covers... - Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3- 1/ 4” x 10” 1 Ft. 6”- 8” Round 30 Ft. Rect., wall cap straight with damper 7” Round, 1 Ft. 6”- 8”...
-
Page 8: Damage - Shipment/Installation
www.zephyronline.com ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 8” to 10”. If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible. - Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option. Use single wall rigid Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certifi...
- Page 10 www.zephyronline.com 12 15/16” 12 3/4” 6 11/16” STANDARD min. ducted - 28 ” min. recirc. - 32 ” max. - 50” Z1C-03ML min. ducted - 44” min. recirc. - 48 ” max. - 82” 23 15/16” 35 5/16”, 42” 25 9/16” FRONT SIDE 10 9/16”...
- Page 11 WARNING: Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Turn off electrical power at service entrance before wiring. PAPER TEMPLATE Front of Hood Cut-Out Shaded Area Ceiling Joists Wood Blocking Top Support Frame...
- Page 12 www.zephyronline.com CAUTION: At least two installers are required due to the weight and size of the hood. BLOWER HOUSING ELECTRONICS MOUNTING BRACKET FIG. E FIG. D FIG. F 5. Remove tape securing electronics mounting bracket to hood. (FIG. D, #1) Remove (3) screws from top of hood body and set screws aside.
- Page 13 cut trim piece if necessary Top support frame Top duct covers Thick trim piece (top) Thin trim piece (bottom) Bottom duct covers Bottom support frame FIG. G 10. *Secure top duct covers (with louver holes) to top support frame using (2) M4 x 8 screws. (FIG. G, #1). Note: If using hood in “ducted mode”...
- Page 14 RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED) Kit includes charcoal fi lters, charcoal fi lter bracket and air diverter plate. Hood Model Part No. Filters in Pkg. ZML-M90BG/BS ZRC-00ML ZML-E42BG/BS ZRC-00ML 1. Purchase recirculating kit per the part number above 2.
- Page 15 Display (speed level, delay off, filter clean/change,clean air) Power / Delay Off clean mesh filter clean air replace charcoal filter Lights On/Dim/Off Adjust 6 Speed Levels 1 Power / Delay Off Button Power Button Function Button will turn power on and off for entire hood (fan and lights). - Hood will remember the last speed and light level it was turned off at.
- Page 16 www.zephyronline.com Mesh Filter Clean Indicator (always enabled) - After 30 hours of fan usage the Graphic and words “ ” will illuminate indicating it is time to clean clean mesh filter the mesh filters. Graphic and words will remain illuminated until reset. - To reset: With hood off, hold the Button for three seconds, after three seconds the Graphic and words “...
-
Page 17: Surface Maintenance
SURFACE MAINTENANCE: Clean the hood surface periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent, or steel wool/scouring pads which will scratch and damage surface. For heavier soil use liquid degreaser. After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. - Page 18 www.zephyronline.com TROUBLESHOOTING PROCEDURES FOR MILANO ISLAND Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 19 ZML-M90BG/M90BS Model: ZML-E42BG/E42BS Voltage 120V 60Hz Power consumption Total: Max. 215W @ 3.5A Lamp: Max. 3Wx4 5A 250V Fan: Max. 203W AC-N AC-L THERMALLY PROTECTED ON/OFF DOWN LAMP Blower fan curve AC input: 120V 60Hz Outlet diameter : 8" 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500 525 550 575 600 625 650 675 700 725 750...
- Page 20 www.zephyronline.com DESCRIPTION PART# Replacement Parts Light Bulb, LED 3W Z0B-0032 Aluminum Mesh Filter 50200043 Optional Accessories Recirculating Kit ZRC-00ML Replacement Charcoal Filter Z0F-C002 Duct Cover Extension (up to 12’ ceiling) Z1C-03ML Gray Glass Canopy 90cm ZMG-03GY Gray Glass Canopy 42” ZMG-04GY To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368...
- Page 21 Zephyr Corporation (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or “your”) of Zephyr products (the “Products”) that such Products will be free from defects in materials or work- manship as follows: Three Year Limited Warranty for Parts and LED lamps: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts to replace those that failed due to manufacturing defects.
