Connections

NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a
loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.

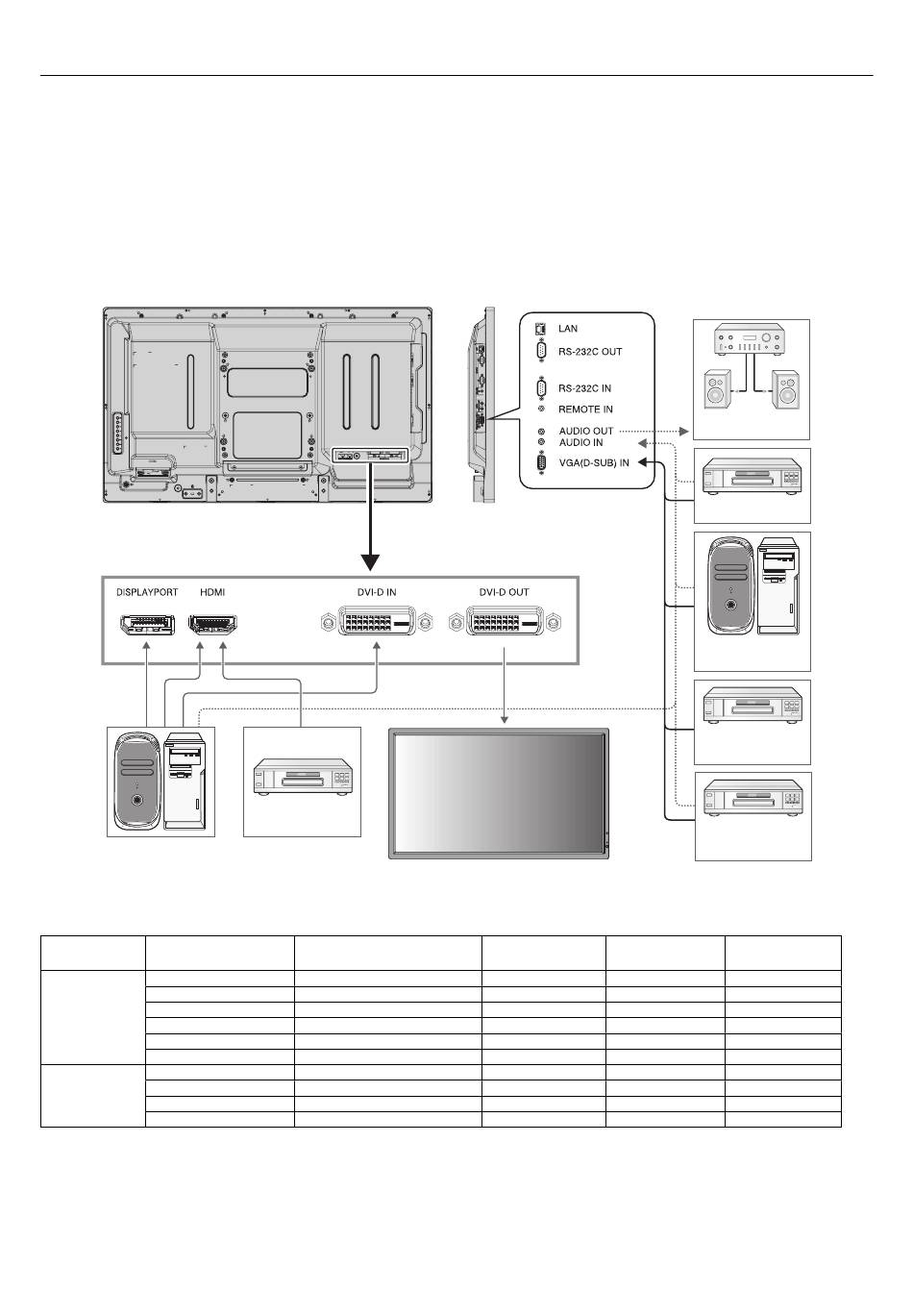

Wiring Diagram

Computer (Digital)
*: Multiple monitors that are daisy-chained have a limit to the connectable monitors.
Connected Connecting
equipment terminal
DVI (DVI-D)
HDMI
VGA (D-Sub)
AV
VGA (D-Sub)
VGA (D-Sub)
VGA (D-Sub)
VGA (D-Sub)
DVI (DVI-D)
PC
DisplayPort
HDMI
*1: Depends on signal type.
*2: A special cable is required. Contact your dealer for more information.
Solid lines = video signal
Dotted lines = audio signal
DVD player
with HDMI out
Setting in Terminal Mode
DVI MODE: DVI-HD
RAW/EXPAND* 1
D-SUB MODE: SCART
D-SUB MODE: S-VIDEO
D-SUB MODE: VIDEO
D-SUB MODE: COMPONENT
-
DVI MODE: DVI-PC
-
1
RAW/EXPAND*
English-14
* 2
Second monitor*
Connecting
Input signal name
Audio terminal
DVI AUDIO IN1
HDMI HDMI
SCART AUDIO IN1
S-VIDEO AUDIO IN1
VIDEO AUDIO IN1
DVD/HD AUDIO IN1
VGA AUDIO IN1
DVI AUDIO IN1
DPORT DPORT
HDMI HDMI
Stereo Amplifi er
DVD player
Computer (Analog)
VCR or DVD player
DVD player with
SCART OUT
Input button
in remote control
DVI
HDMI
DVD/HD
S-VIDEO
VIDEO
DVD/HD
VGA
DVI
DISPLAYPORT
HDMI
