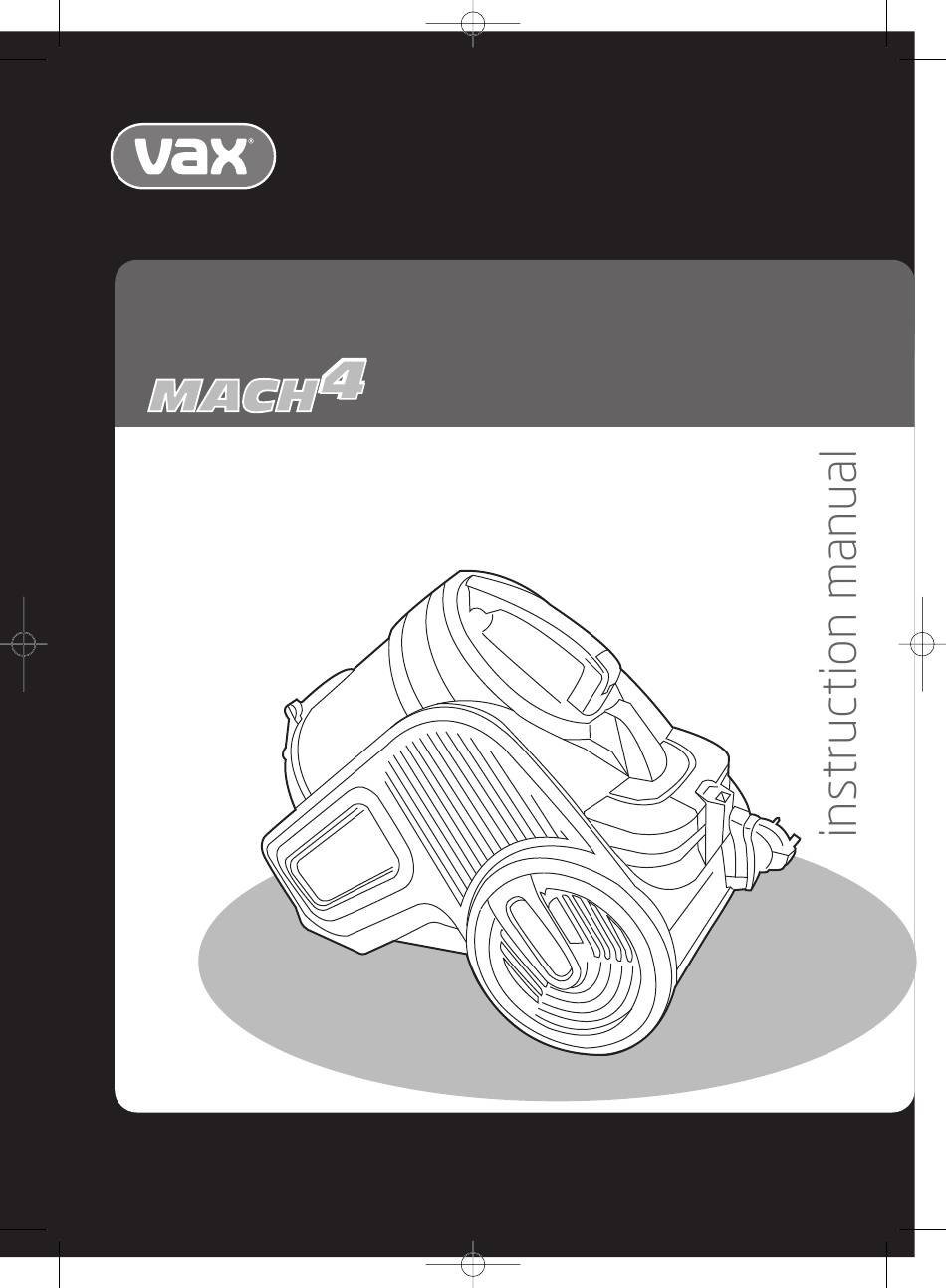

- Page 1 C91-M4 Series User Guide.qxd:Vax VZL-7015(AT) User Guide 23/3/09 10:19 Page 1 Vax careline 0870 6061248 Bagless cylinder Vax model number: C91-M4 Series Please read carefully before using this cleaner. www.vax.co.uk Always fully extend the mains cable before use. Retain for future reference.
- Page 2 C91-M4 Series User Guide.qxd:Vax VZL-7015(AT) User Guide 23/3/09 10:19 Page 2 www.vax.co.uk 1. Diagram Fig.1/1 1 Hose inlet Accessories 2 Dirt container 11 2-in-1 tool 3 Cyclone separator 12 Crevice tool 4 Dirt container handle / 13 Telescopic tube carry handle...
-
Page 3: Safety Information
C91-M4 Series User Guide.qxd:Vax VZL-7015(AT) User Guide 23/3/09 10:19 Page 3 Vax Careline 0870 606 1248 2. Safety Information 15. Do not vacuum up hard or sharp objects such as glass, nails, screws, coins, etc. For Household Use Only 16. Do not use without the filters in place. -
Page 4: How To Assemble
C91-M4 Series User Guide.qxd:Vax VZL-7015(AT) User Guide 23/3/09 10:19 Page 4 www.vax.co.uk 3. How to Assemble 4. How to Operate IMPORTANT: Always unplug the vacuum cleaner Cord Release from the electrical outlet before assembling or Fully unwind the power cord. A yellow mark on the power removing the accessories. - Page 5 C91-M4 Series User Guide.qxd:Vax VZL-7015(AT) User Guide 23/3/09 10:19 Page 5 Vax Careline 0870 606 1248 6. Dirt Container & Filters: 5. Accessories Removal & Replacement The accessories can be attached directly to the handle by removing the telescopic tubes and IMPORTANT: Vax recommends cleaning the filters pushing in the desired accessory.
- Page 6 Fig.6/4 NOTE: Do not use any detergents or boiling water to Leave the separator to dry completely before replacing. wash the filter. Vax recommends this filter should be checked and cleaned periodically. IMPORTANT: The cyclonic separator should not be submerged in water.
- Page 7 Vax recommends cleaning the filter plug from the electrical outlet. every time you empty the dirt container. Vax recommends Press the latches on both sides of the tool and remove the washing the filter every 9-12 months.
- Page 8 C91-M4 Series User Guide.qxd:Vax VZL-7015(AT) User Guide 23/3/09 10:19 Page 8 www.vax.co.uk To re-assemble, and replace the bottom plate, insert the 8. Storage four tabs on edge of bottom plate into slots on front of tool. Pivot bottom plate down and snap closed (Fig.7/3).
-
Page 9: Troubleshooting
Monday-Friday 8.30am to 6.30pm maintenance/troubleshooting checks. Saturday-Sunday 9.00am to 5.00pm Any queries or concerns about using your Vax, call the PROBLEM: Vacuum cleaner won't run Vax Careline. Calls are charged at the UK national rate. Cause: Not properly plugged into electrical outlet. -
Page 10: Technical Specification
C91-M4 Series User Guide.qxd:Vax VZL-7015(AT) User Guide 23/3/09 10:19 Page 10 www.vax.co.uk 11. Technical Specification Voltage: 220 - 240 Wattage: 1400W Capacity: 2.3 litres approx Filters: Cyclone separator – wipe clean Pre-motor filter – washable HEPA Post-motor filter (Anti bacterial exhaust on C91-M4-P only) – washable Cord Length: 6.0m (approx) - Page 11 C91-M4 Series User Guide.qxd:Vax VZL-7015(AT) User Guide 23/3/09 10:19 Page 11 Vax Careline 0870 606 1248 This page has been left intentionally blank.
- Page 12 10:19 Page 12 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the C91-M4 cylinder range is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive EMC: 2004/108/EC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
