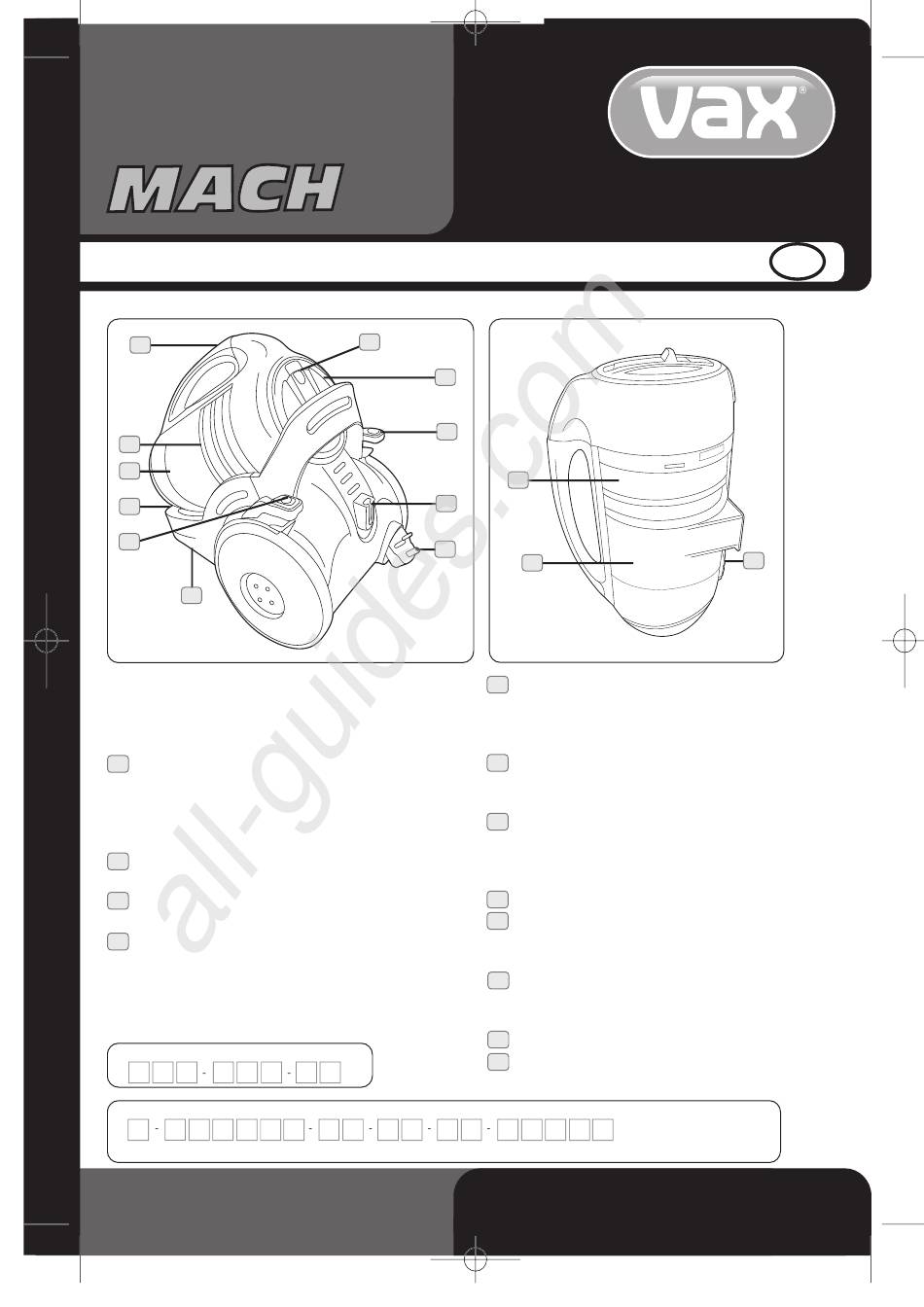

1. Parts Overview
The Unit
1 On/Off Button
Insert the plug into the electrical outlet. Press the
on/off switch on the top of the vacuum cleaner, to
switch the vacuum cleaner on and press the button
again to turn the vacuum cleaner off.
2 Dirt Container
Locked onto the top of the unit.
3 Cyclone Separator
Located inside of the Dirt Container.
4 Dirt Container and Carry Handle
Use the carry handle located on the side of the dirt
bin to move the vacuum cleaner from room to room.
What is your model number?
C M
What is your serial number?
Note this down in case you need it in future
vax.co.uk
24/9/10 10:30 Page 1
All manuals and user guides at all-guides.com
5
10
6
7
8
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Instruction Manual V2.1
3
2
5 Dirt Container Release Button
Press the button on the top of the dirt container. The
dirt container can then be lifted and removed off the
unit.
6 Auto Cord Rewind
To rewind the power cord, press the cord rewind
button, located on the top of the vacuum cleaner.
7 Floor Tool Parking Slot
For convenience there is a parking slot located at the
rear of the vacuum cleaner where the Floor Tool can
be parked for carrying and storage.
8 Plug
9 Dirt Bin Quick Release Button
Hold the dirt container over a bin and press the
release button.
10 Pre-Motor Filter Cover
Located inside the lid of the dirt
bin container.
11 Hose Inlet
12 Post Motor Filter Cover
Located on the base of the unit.
(on the base of your cleaner)
