ACTi E33 User Manual

5mp bullet with d/n, ir, basic wdr, fixed lens
Hide thumbs Also See for E33:
Table of Contents

Advertisement

Quick Links

Download this manual

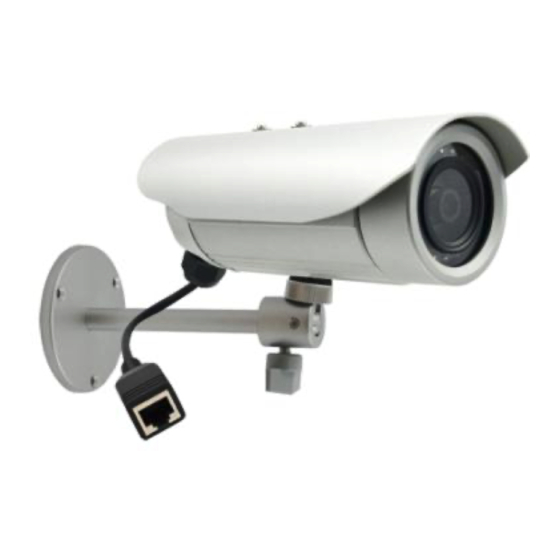

E33
5MP Bullet with D/N, IR, Basic WDR,
Fixed lens
Hardware User's Manual
(PoE)
Ver. 2012/11/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E33 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACTi E33

Summary of Contents for ACTi E33

  • Page 1 5MP Bullet with D/N, IR, Basic WDR, Fixed lens Hardware User’s Manual (PoE) Ver. 2012/11/13...

  • Page 2: Table Of Contents

    E33 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................6 Physical description ................ 8 How to Do the Waterproof with Conduit Installation ....9 Basic Connections ................. 12 Product Specification ..............

  • Page 3: Precautions

    E33 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

  • Page 4: Introduction

    E33 Hardware User’s Manual 1. Introduction Package Contents E33 (Included camera stand/sun shield) Accessories Conduit Gland Lens Focus Tuner Warranty Card www.acti.com...

  • Page 5: Features And Benefits

    E33 Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system.

  • Page 6: Safety Instructions

    E33 Hardware User’s Manual Safety Instructions Don’t open the housing of the product Cleaning Disconnect this video product from the power supply before cleaning. Attachments Do not use attachments not recommended by the video product manufacturer as they may cause hazards.
  • Page 7 E33 Hardware User’s Manual Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com...

  • Page 8: Physical Description

    E33 Hardware User’s Manual Physical description 1) Reset Button Step 1: Press and continue to hold the Reset Button for 15 seconds (with a sharp tipped object, like a pen.) after the unit has successfully completed the boot process. Step 2: The Ethernet LED light will turn off for about 1~2 seconds and flash on for another second.

  • Page 9: How To Do The Waterproof With Conduit Installation

    E33 Hardware User’s Manual How to Do the Waterproof with Conduit Installation Beside the bundled network cable, you also can use conduit and follow the installation procedure to make the camera be water-resistant even for the situations where the camera can easily be flooded by pouring rain.
  • Page 10 E33 Hardware User’s Manual The third piece of conduit gland goes through the back side cover of the camera. The fourth piece (locking nut) is used to lock the gland firmly from the inside of the back side cover. Pull the network cable through the back side cover of the camera.
  • Page 11 E33 Hardware User’s Manual Tighten the domed sealing nut. Plug the network cable into the camera’s RJ-45 connector before closing the back side of the camera. If you are not using PoE and need an additional power cord then please connect it at this stage, too.

  • Page 12: Basic Connections

    E33 Hardware User’s Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. Please use a PoE (Power over Ethernet) supported switch or injector: 1) Connect your IP Camera to the PoE Switch / Injector by CAT5 or CAT6 cables with RJ45 connector.

  • Page 13: Product Specification

    E33 Hardware User’s Manual Product Specification • Device Device Type Bullet Camera Image Sensor Progressive Scan CMOS Day / Night Minimum Illumination Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) Color to B/W switch ISP sensor based switch;...

  • Page 14: Accessing Camera

    E33 Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Camera into the network and your IP device will acquire network address by itself.
  • Page 15 E33 Hardware User’s Manual Please set the settings as below.   IP address: 192.168. 0.xxx  Subnet mask: 255.255.255. (NOTE: xxx should be a number from 1 to 254 except 100, which is used by the IP device. Please also...
  • Page 16 E33 Hardware User’s Manual 6. After logging in, you will see the video from camera. To go to the main menu, click the “Setup” button on the top left. If you are using a single camera, this is enough to access the device.
  • Page 17 E33 Hardware User’s Manual 10. Click “Apply” 11. Please go to System -> Save & Reboot, and click “Apply”. Internet Explorer will close after a few seconds. This is normal. 12. Wait for 30 seconds, and open IE again to connect to the IP.
