Myson MPE 222 Quick Manual

MYSON POWER EXTRA
SPRING RETURN ZONE VALVE

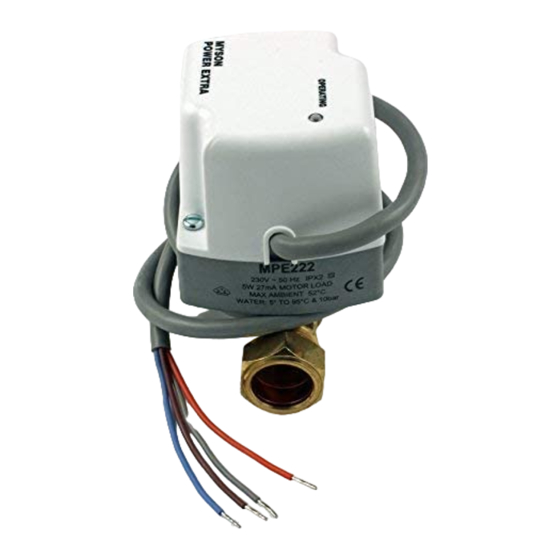

MPE 222 / MPE 2 3/4 "- 2 PORT 22mm VALVE
Thank you for choosing a MYSON heating control.
The MPE 222 is designed to control water circulation in primary hot water
or central heating circuits. The motor is powered to open the valve with a
spring return to the closed position.
The valve is not directionally sensitive and may be fitted with flow through
either Port A or Port B.
For convenience the neon indicator light illuminates, indicating when the
valve is open.
When the manual lever is moved to the right, the valve is open. This is used
when filling, venting or draining the system. The spring return valve rests
in the closed position.
TECHNICAL SPECIFICATION
Motor Supply Voltage
Frequency
Power Consumption
Motor Insulation Rating
Maximum Working Pressure
Maximum Water Temperature
Maximum Ambient Temperature
KV value
Switch Rating
High Temperature Silicon Cable
Valve Body
Actuator
MPEDOC002
230 V AC
50 Hz
6 W
Class 'F'
10 Bar
o
95 C
o
52 C
6.7
3(0.5) A
1100mm
Brass with spring loaded
Mica filled PTFE shoes
Power to Open
Spring to Close
Issue: 9
