IMPORTANT NOTE!
100 miles (160km) of operation. See "preset odometer" for instructions.

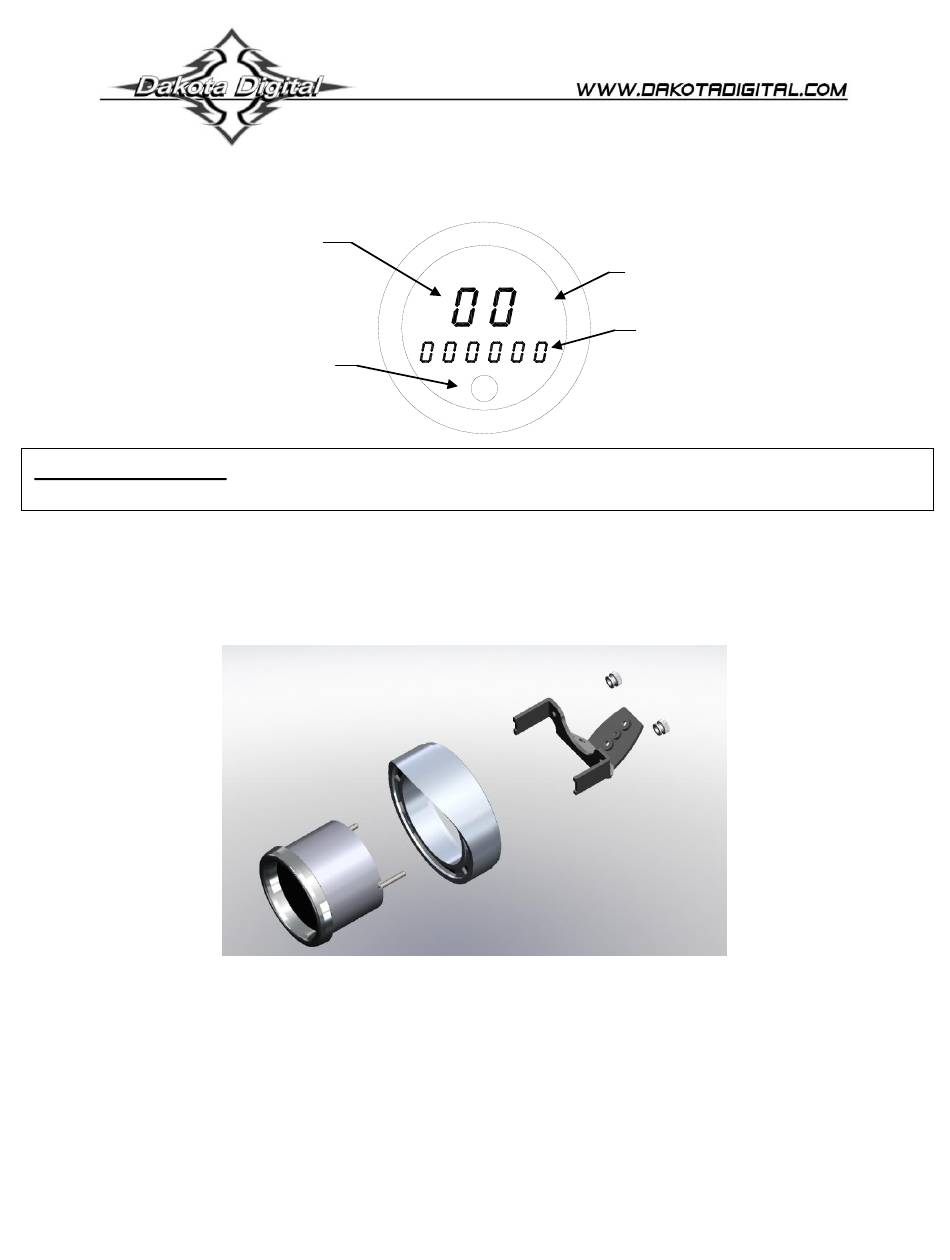

Mounting
Remove the speedometer cup from the handle bars. Remove the screw on the bottom of the cup to separate the
front ring from the cup. Unplug the factory 3-pin harness. Remove the two nuts from the back of the speedometer to
release it from the front ring. Install the new speedometer into the front ring and use the original clamp and the supplied
thumb nuts to secure it. Connect factory 3-pin harness into the new speedometer. Reinstall the front ring into the cup and
replace the screw into the bottom of the cup. Reinstall the cup onto the handle bars.
Note: On some models with tank mounted speedometer it may be necessary to trim the mounting studs on the back of the
gauge for proper clearance and fit.
Wiring
The three pin plug on the back of the gauge mates into the factory speedometer wiring harness. Simply unplug the
stock gauge and plug in the new Dakota Digital BD-140.
Black
-
Green -
Red
-
Big Dog digital speedometer
Speed Readout
This gauge has an odometer preset option that is only available for the first
Ground
Speed signal in
Power +12V key on
BD-140
km/h
MPH
Speed Unit
Message Center
(Odometer,Trip,etc.)
MAN# 650272:C
Advertisement
Table of Contents
Related Manuals for Dakota Digital BD-140
Summary of Contents for Dakota Digital BD-140
- Page 1 Wiring The three pin plug on the back of the gauge mates into the factory speedometer wiring harness. Simply unplug the stock gauge and plug in the new Dakota Digital BD-140. Black Ground Green -...
- Page 2 SPEEDOMETER Failure to calibrate the speedometer may cause your odometer mileage to increase very rapidly. The speedometer has been factory calibrated to a nominal speed signal which should be accurate on most cycles. The speedometer is adjustable to allow for tire and gearing changes. The speed reading should be verified by following another vehicle or checking time over a known distance.
- Page 3 NIGHT DIMMING Your display system has a dimming feature that dims the display intensity automatically at night. Normally the system is at full brightness for daytime viewing. To have the system at full brightness all of the time, go into the setup menu as described above and select “”...
- Page 4 Any action for breach of any warranty hereunder, including any implied warranty of merchantability, must be brought within a period of 24 months from date of original purchase. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
