Lenovo V110
V110-14IAP/V110-14AST
V110-15ISK/V110-15IAP/V110-15AST
Hardware
Maintenance
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V110 and is the answer not in the manual?

Questions and answers

Related Manuals for Lenovo V110

Summary of Contents for Lenovo V110

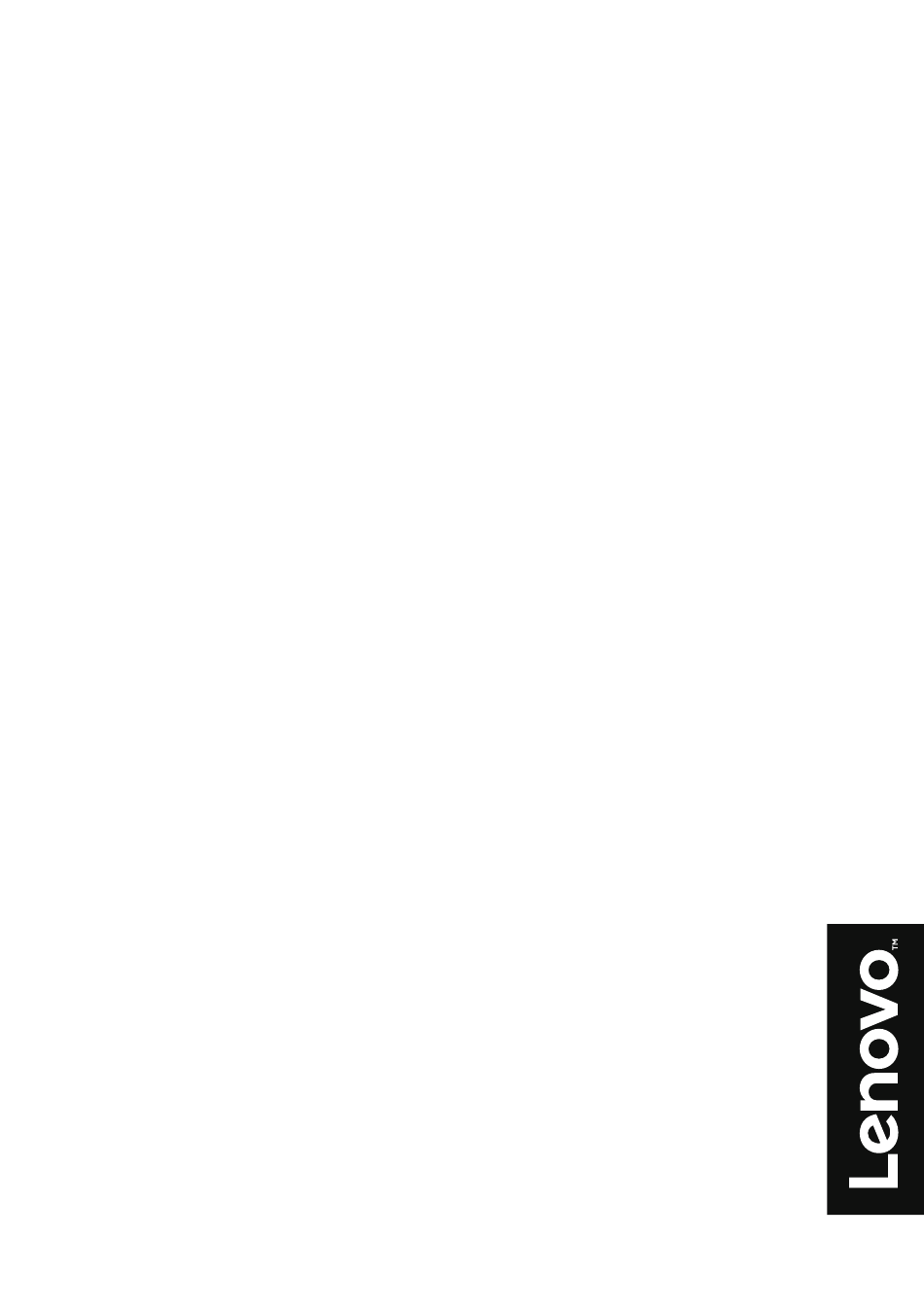

  • Page 1 Lenovo V110 V110-14IAP/V110-14AST V110-15ISK/V110-15IAP/V110-15AST Hardware Maintenance Manual...
  • Page 2 • Before using this information and the product it supports, be sure to read the general information under “Notices” on page 82. • This manual applies to the following models: Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110- 15IAP/V110-15AST. The illustrations used in this manual are for Lenovo V110-15ISK unless otherwise stated. First Edition (May 2016) ©...

  • Page 3: Table Of Contents

    Hard-disk password ..........24 Administrator password ........24 Power management ........25 Screen blank state ..........25 Putting the computer to sleep or shutting it down ..............25 Putting your computer to sleep ......25 Shutting down the computer ......26 Lenovo V110-14IAP/V110-14AST/ V110-15ISK/V110-15IAP/V110-15AST ..27 Specifications ..........27 Status indicators ........... 29 Hotkeys............31 FRU replacement notices ......32 Screw notices ..........32 Removing and replacing an FRU ....33 1010 Optical drive ..........34 1020 Base cover ..........35 1030 Battery pack ..........38...

  • Page 4: About This Manual

    • The product-specific section includes service, reference, and product-specific parts information. Important: This manual is intended only for trained servicers who are familiar with Lenovo products. Use this manual to troubleshoot problems effectively. Before servicing a Lenovo product, make sure to read all the information under “Safety information” on page 1 and “Important service information” on page 16.

  • Page 5: Safety Information

    Safety information Safety information This chapter presents the following safety information that you need to get familiar with before you service a Lenovo V110-14IAP/V110-14AST/ V110-15ISK/V110-15IAP/V110-15AST computer: • “General safety” on page 2 • “Electrical safety” on page 3 • “Safety inspection guide” on page 5 • “Handling devices that are sensitive to electrostatic discharge” on page 6 • “Grounding requirements” on page 6 • “Safety notices: multilingual translations” on page 7 • “Laser compliance statement” on page 14...

  • Page 6: General Safety

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual General safety Follow these rules below to ensure general safety: • Observe a good housekeeping in the area where the machines are put during and after the maintenance. • When lifting any heavy object: 1. Make sure that you can stand safely without slipping. 2. Distribute the weight of the object equally between your feet. 3. Use a slow lifting force. Never move suddenly or twist when you attempt to lift it. 4. Lift it by standing or pushing up with your leg muscles; this action could avoid the strain from the muscles in your back. Do not attempt to lift any object that weighs more than 16 kg (35 lb) or that you think is too heavy for you. • Do not perform any action that causes hazards to the customer, or that makes the machine unsafe.

  • Page 7: Electrical Safety

    About this manual Electrical safety Observe the following rules when working on electrical equipments. Important: Use only approved tools and test equipments. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents. Many customers have rubber floor mats near their machines that contain small conductive fibers to decrease electrostatic discharges.
  • Page 8 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual • Always look carefully for possible hazards in your work area. Examples of these hazards are moist floors, nongrounded power extension cables, power surges, and missing safety grounds. • Do not touch live electrical circuits with the reflective surface of a plastic dental mirror. The surface is conductive; such touching can cause personal injury and machine damage. • Do not service the following parts with the power on when they are removed from their normal operating places in a machine: – Power supply units – Pumps – Blowers and fans – Motor generators and similar units. (This practice ensures correct grounding of the units.) • If an electrical accident occurs: – Caution: do not become a victim yourself.

  • Page 9: Safety Inspection Guide

    The power cord should be the type specified in the parts list. c. Insulation must not be frayed or worn. 4. Check for cracked or bulging batteries. 5. Remove the cover. 6. Check for any obvious non-Lenovo alterations. Use good judgment as to the safety of any non-Lenovo alterations. 7. Check inside the unit for any obvious unsafe conditions, such as metal filings, contamination, water or other liquids, or signs of fire or smoke damage. 8. Check for worn, frayed, or pinched cables.

  • Page 10: Handling Devices That Are Sensitive To Electrostatic Discharge

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Handling devices that are sensitive to electrostatic discharge Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to electrostatic discharge (ESD). ESD damage can occur when there is a difference in charge between objects. Protect against ESD damage by equalizing the charge so that the machine, the part, the work mat, and the person handling the part are all at the same charge. Notes: 1. Use product-specific ESD procedures when they exceed the requirements noted here.

  • Page 11: Safety Notices: Multilingual Translations

    About this manual Safety notices: multilingual translations The safety notices in this section are provided in English, French, German, Hebrew, Italian, Japanese, and Spanish. Safety notice 1 Before the computer is powered on after FRU replacement, make sure all screws, springs, and other small parts are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds.
  • Page 12 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Safety notice 2 DANGER Some standby batteries contain a small amount of nickel and cadmium. Do not disassemble a standby battery, recharge it, throw it into fire or water, or short- circuit it. Dispose of the battery as required by local ordinances or regulations.
  • Page 13 About this manual Safety notice 3 DANGER The battery pack contains small amounts of nickel. Do not disassemble it, throw it into fire or water, or short-circuit it. Dispose of the battery pack as required by local ordinances or regulations. Use only the battery in the appropriate parts listing when replacing the battery pack.
  • Page 14 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Safety notice 4 DANGER The lithium battery can cause a fire, an explosion, or a severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations.
  • Page 15 About this manual Safety notice 5 If the LCD breaks and the fluid from inside the LCD gets into your eyes or on your hands, immediately wash the affected areas with water at least for 15 minutes. Seek medical care if any symptoms caused by the fluid are present after washing. Si le panneau d’affichage à...
  • Page 16 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Safety notice 6 DANGER To avoid shock, do not remove the plastic cover that protects the lower part of the inverter card. Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique protégeant la partie inférieure de la carte d’alimentation.
  • Page 17 About this manual Safety notice 8 DANGER Before removing any FRU, turn off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables. Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension, débranchez tous les cordons d’alimentation des socles de prise de courant, retirez la batterie et déconnectez tous les cordons d’interface.

  • Page 18: Laser Compliance Statement

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Laser compliance statement Some models of Lenovo computer are equipped from the factory with an optical storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are also sold separately as options. If one of these drives is installed, it is certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.
  • Page 19 About this manual A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may contain an embedded Class 3A or Class 3B laser diode. Note the following: DANGER Emits visible and invisible laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam. Radiação por raio laser ao abrir. Não olhe fixo no feixe de luz, não olhe diretamente por meio de instrumentos óticos e evite exposição direta com o feixe de luz.

  • Page 20: Important Service Information

    Strategy for replacing FRUs Before replacing parts: Make sure that all software fixes, drivers, and BIOS downloads are installed before replacing any FRUs listed in this manual. After a system board is replaced, ensure that the latest BIOS is loaded to the system board before completing the service action. To download software fixes, drivers, and BIOS, follow the steps below: 1. Go to http://support.lenovo.com. 2. Enter the serial number or select a product or use Lenovo smart downloading. 3. Select the BIOS/Driver/Applications and download. 4. Follow the directions on the screen and install the necessary software.

  • Page 21: Strategy For Replacing A Hard Disk Drive

    Important service information Use the following strategy to prevent unnecessary expense for replacing and servicing FRUs: • If you are instructed to replace an FRU, but the replacement does not solve the problem, reinstall the original FRU before you continue. • Some computers have both a processor board and a system board. If you are instructed to replace either of them, and replacing one of them does not solve the problem, reinstall that board, and then replace the other one. • If an adapter or a device consists of more than one FRU, any of the FRUs may be the cause of the error. Before replacing the adapter or device, remove the FRUs one by one to see if the symptoms change. Replace only the FRU that changed the symptoms. Attention: The setup configuration on the computer you are servicing may have been customized. Running Automatic Configuration may alter the settings. Note the current configuration settings (using the View Configuration option); then, when service has been completed, verify that those settings remain in effect.

  • Page 22: Important Information About Replacing Rohs Compliant Frus

    Note: RoHS and non-RoHS FRU part numbers with the same fit and function are identified with unique FRU part numbers. Lenovo plans to transit to RoHS compliance well before the implementation date and expects its suppliers to be ready to support Lenovo’s requirements and schedule in the EU. Products sold in 2005 and 2006 will contain some RoHS compliant FRUs. The following statement pertains to these products and any product Lenovo produces containing RoHS compliant FRUs.

  • Page 23: General Checkout

    General checkout General checkout This chapter presents the following information: • “What to do first” on page 20 • “Power system checkout” on page 21 Before you go to the checkout, make sure to read the following important notes: Important notes: • Only certified trained personnel can service the computer. • Before replacing any FRU, read the entire page on removing and replacing FRUs. • Carefully remove screws for reuse when replacing FRUs. • Be extremely careful during such write operations as copying, saving, or formatting. Drives in the computer that you are servicing sequence might have been altered.

  • Page 24: What To Do First

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual What to do first When you do return an FRU, you must include the following information in the parts exchange form or parts return form that you attach to it: 1. Name and phone number of servicer 2. Date of service 3. Date on which the machine failed 4. Date of purchase 5. Procedure index and page number in which the failing FRU was detected 6. Failing FRU name and part number 7. Machine type, model number, and serial number 8. Customer’s name and address Note for warranty: During the warranty period, the customer may be responsible for repair costs if the computer damage was caused by misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by the customer.

  • Page 25: Power System Checkout

    • If the computer does not charge during operation, go to “Checking operational charging”. To check the AC adapter, follow the steps below: 1. Unplug the AC adapter cable from the computer. 2. Measure the output voltage at the plug of the AC adapter cable. See the following figure: Voltage (V DC) Note: Output voltage for the AC adapter pin No. 2 may differ from the one you are servicing. 3. If the voltage is not correct, replace the AC adapter. 4. If the voltage is acceptable, do the following: • Replace the system board. • If the problem persists, go to “Lenovo V110-14IAP/V110-14AST/V110-15ISK/ V110-15IAP/V110-15AST” on page 27. Note: Noise from the AC adapter does not always indicate a defect.

  • Page 26: Checking Operational Charging

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Checking operational charging To check whether the battery charges properly during operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer. Perform operational charging. If the battery status indicator or icon does not light on, remove the battery pack and let it return to room temperature. Reinstall the battery pack. If the charge indicator or icon is still off, replace the battery pack. If the charge indicator still does not light on, replace the system board. Then reinstall the battery pack. If it is still not charged, go to the next section. Checking the battery pack Battery charging does not start until the Power Meter shows that less than 95% of the total power remains; under this condition the battery pack can charge to...

  • Page 27: Related Service Information

    Recovery System and run System Recovery. For details of OneKey Recovery System, see the User Guide for Lenovo OneKey Recovery System . Note: This will delete all the new data on the system partition (C drive), which is not recoverable. Make sure to back up your critical data before you perform this...

  • Page 28: Passwords

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Passwords As many as three passwords may be needed for any Lenovo computer: the power-on password (POP), the hard disk password (HDP), and the administrator password. If any of these passwords has been set, a prompt for it appears on the screen whenever the computer is turned on. The computer does not start until the password is entered.

  • Page 29: Power Management

    Related service information Power management Note: Power management modes are not supported for APM operating system. To reduce power consumption, the computer has three power management modes: screen blank, sleep (standby), and shut down. Screen blank state If the time set on the “Turn off monitor” timer in the operating system expires, the LCD backlight turns off. You can also turn off the LCD backlight by pressing To end screen blank state and resume normal operation, press any key. Putting the computer to sleep or shutting it down When you have finished working with your computer, you can put it to sleep or shut it down.

  • Page 30: Shutting Down The Computer

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Shutting down the computer If you are not going to use your computer for a long time, shut it down. To shut down your computer, do one of the following: • For the Windows 7 operating system: Click Start → Shut down For the Windows 10 operating system: Move the cursor to the lower-left corner, and then select the Start button. Select Power → Shut down. • Right-click the Start button in the lower-left corner and select Shut down or sign out → Shut down.

  • Page 31: V110-15Isk/V110-15Iap/V110-15Ast

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST This chapter presents the following product-specific service references and product-specific parts information: • “Specifications” on page 27 • “Status indicators” on page 29 • “Fn key combinations/Hotkeys” on page 31 • “FRU replacement notices” on page 32 • “Removing and replacing an FRU” on page 33 • “Locations” on page 64 • “Parts list” on page 67 Specifications The following table lists the specifications of the Lenovo V110-14IAP/V110- 14AST/V110-15ISK/V110-15IAP/V110-15AST: Table 1. Specifications V110-15ISK/V110-15IAP/ V110-14IAP/V110-14AST V110-15AST Form Factor Dimensions Appr. 343 mm × 247 mm ×...
  • Page 32 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Table 1. Specifications (continued) Display Display resolution 16:9 (1,366 × 768 pixels) (LCD) LCD backlight I/O Ports USB 3.0 × 1, USB 2.0 × 1 Audio Combo audio jack × 1 Communication RJ-45 × 1 Video/Audio HDMI slot × 1 Memory card slot 4 in 1 slot × 1 (SD/SDHC/SDXC/MMC) Battery pack Type Li-ion battery pack Cells/Capacity 3/4 Cells, 24/32 Wh Note: The capacity given here is the typical or average capacity as measured in a specific test environment. Capacities measured in other environments may differ but are no lower than the rated capacity (see product label). AC power adapter Input...

  • Page 33: Status Indicators

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Status indicators The system status indicators below show the computer status: V110-14IAP/V110-14AST...
  • Page 34 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual V110-15ISK/V110-15IAP/V110-15AST Table 2. Status indicators AC power System Indicator Indicator Meaning adapter status status status Solid light The battery has between 1% and amber 5% charge. Solid amber The battery has between 5% and working 20% charge. Disconnected Solid green The battery has more than 20% charge. Blinking The battery has between 1% and amber 20% charge. Sleep Blinking The battery has more than 20% green charge.

  • Page 35: Hotkeys

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Hotkeys Table 3. Hotkeys Enables/disables airplane Mutes/unmutes the sound. mode. Decreases the volume level. Enables/disables camera. Locks/unlocks the LCD Increases the volume level. screen. Enables the external projector Enables/disables or dangles the external microphone. display. Decreases the display Refreshes page. brightness until the LCD backlight is turned off. Enables/disables the touch Increases display brightness. pad. Play/pause the current video Stop the current video (audio). (audio). Fast backward when playing. Fast forward when playing.

  • Page 36: Fru Replacement Notices

    Hardware Maintenance Manual FRU replacement notices This section presents notices related to removing and replacing parts. Read this section carefully before replacing any FRU. Screw notices Loose screws can cause a reliability problem. In the Lenovo computer, this problem is addressed with special nylon-coated screws that have the following characteristics: • They maintain tight connections. • They do not easily come loose, even with shock or vibration. • They are harder to tighten.

  • Page 37: Removing And Replacing An Fru

    Before touching it, establish personal grounding by touching a ground point with one hand or using an electrostatic discharge (ESD) strap (P/N 6405959) to remove potential shock reasons. Notes: • The following procedures about removing and replacing FRUs are the same for the Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST. • The illustrations used in this section are of the Lenovo V110-15ISK, unless otherwise stated.

  • Page 38: 1010 Optical Drive

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual 1010 Optical drive Figure 1. Removal steps of optical drive Remove the screw 1.Then pull the optical drive out in the direction shown by arrow 2. Step Screw (quantity) Color Torque M2 × 6 mm, Phillips head, nylok-coated (1) Black 1.85+/-0.15 kgf/cm LOW TO UPPER M2.5 × 3 mm, Phillips head, nylok-coated (1) Black 3.0+/-0.3 kgf/cm LOW TO UPPER (V110-15IAP) Remove the screw 3, then carefully remove the optical drive bracket and bezel in the directions shown by arrows 4 and 5. Step Screw (quantity) Color Torque M2 × 3 mm, Phillips head, nylok-coated (1) Black 1.85+/-0.15 kgf/cm...

  • Page 39: 1020 Base Cover

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST 1020 Base cover For access, remove this FRU: • “1010 Optical drive” on page 34 Figure 2. Removal steps of base cover V110-15ISK Remove the screws 1. Step Screw (quantity) Color Torque M2 × 6 mm, Phillips head, nylok-coated (12) Black 1.85+/-0.15 kgf/cm LOW TO UPPER Remove the base cover in the directions shown by arrows 2 and 3.
  • Page 40 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Figure 2. Removal steps of base cover (continued) V110-14AST Remove the screws 1 from the bottom. Step Screw (quantity) Color Torque M2 × 6 mm, Phillips head, nylok-coated (10) Black 1.85+/-0.15 kgf/cm LOW TO UPPER...
  • Page 41 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Note: Applying labels to the base cover The new base cover FRU is shipped with a kit containing labels of several kinds. When you replace the base cover, you need to apply the following label: The following labels need to be peeled off from the old base cover, and need to be put on the new base cover. Rating label(69.5x34.5 mm) BIS label for India Rating label(43x24 mm) Wlan/BT label for Isarel GML label Wlan/BT label for Brazil COA label W lan label for South Africa Wlan/BT label for US/CA/TW C NC label for Argentina KCC label for korea...

  • Page 42: 1030 Battery Pack

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual 1030 Battery pack For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 DANGER Only use the battery specified in the parts list for your computer. Any other battery could ignite or explode. Figure 3. Removal steps of battery pack Detach the battery pack connector in the direction shown by arrow 1, remove the screws 2.
  • Page 43 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Figure 3. Removal steps of battery pack (continued) Remove the battery pack in the direction shown by arrow 3. When installing: Make sure the battery pack connector is attached firmly.

  • Page 44: 1040 Hard Disk Drive

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual 1040 Hard disk drive For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 Attention: • Do not drop the hard disk drive or apply any physical shock to it. The hard disk drive is sensitive to physical shock. Improper handling can cause damages and permanent loss of data. • Before removing the drive, suggest the customer to backup all the information on it if possible.
  • Page 45 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Figure 4. Removal steps of hard disk drive (continued) Lift the IO board cable in the direction shown by arrow 3. Remove the screw Step Screw (quantity) Color Torque M2 × 3 mm, Phillips head, nylok-coated (1) Black 1.85+/-0.15 kgf/cm HDD BRK TO UPPER When installing: Make sure that the cable connector is attached firmly. Detach the HDD connector in the direction shown by arrow 5. Remove the hard disk drive from the slot in the direction shown by arrow 6. When installing: Make sure that the HDD connector is attached firmly.
  • Page 46 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Figure 4. Removal steps of hard disk drive (continued) Remove the screws 7, then take out the metal frame. Step Screw (quantity) Color Torque M3 × 4 mm, Phillips head, nylok-coated (4) HDD BRK TO HDD Black 3.0+/-0.3 kgf/cm (V110-15ISK/V110-15IAP/V110-15AST) M3 × 4 mm, Phillips head, nylok-coated (4) Black 4.0+/-0.3 kgf/cm HDD BRK TO HDD (V110-14AST/V110-14IAP)

  • Page 47: 1050 Speaker

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST 1050 Speaker For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 40 Figure 5. Removal steps of speaker Unplug the speaker connector in the direction shown by arrow 1. V110-15ISK V110-14AST...
  • Page 48 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Figure 5. Removal steps of speaker (continued) Remove the speaker 2. V110-15ISK V110-14AST When installing: Make sure that the speaker connector is attached firmly.

  • Page 49: 1060 Io Board

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST 1060 IO board For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 40 • “1050 Speaker” on page 43 Figure 6. Removal steps of IO board Remove the screw 1. Step Screw (quantity) Color Torque M2 × 3 mm, Phillips head, nylok-coated (1) Black 1.85+/-0.15 kgf/cm IO BOARD TO UPPER Remove the IO board in the direction shown by arrow 2. When installing: Make sure that the connector is attached firmly.

  • Page 50: 1070 Pci Express Mini Card For Wireless Lan

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual 1070 PCI Express Mini Card for wireless LAN For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 40 • “1050 Speaker” on page 43 • “1060 IO board” on page 45 Important: The preinstalled WLAN module may only be replaced with a Lenovo approved module in order to comply with FCC and IC regulations. Refer to Table 4. "Parts list—Overall" on page 68 for Lenovo part numbers for the approved modules.
  • Page 51 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Figure 7. Removal steps of PCI Express Mini Card for wireless LAN (continued) In step 1, unplug the jacks by using the removal tool antenna RF connector (P/N: 08K7159), or pick up the connectors with your fingers and gently unplug them in the direction shown by the arrows. Notes: The wireless LAN card has 2 cables in step 1. The wireless LAN card in some models might have 3 cables in step 1. Step Screw (quantity) Color Torque M2 × 3 mm, Phillips head, nylok-coated (1) Black 1.85+/-0.15 kgf/cm WLAN CARD TO MB Remove the card in the direction shown by arrow 3. When installing: • In models with a wireless LAN card that has two antenna connectors, plug the black cable (1st) (MAIN) into the jack labeled MAIN, and the white cable (2nd) (AUX) into the jack labeled AUX on the card. • In models with a wireless LAN card that has three antenna connectors, plug the black cable (1st) (MAIN) into the jack labeled 1, the grey cable (3rd) into the jack labeled 3, and the white cable (2nd) (AUX) into the jack labeled 2 on...

  • Page 52: 1080 Odd Board (V110-15Isk)

    • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 40 • “1050 Speaker” on page 43 • “1060 IO board” on page 45 • “1070 PCI Express Mini Card for wireless LAN” on page 46 Figure 8. Removal steps of ODD board (V110-15ISK) Detach the FPC connector in the directions shown by arrows 1 and 2. Remove the screw 3. Step Screw (quantity) Color Torque M2 × 3, Phillips head, nylok-coated (1)

  • Page 53: 1090 Dimm

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST 1090 DIMM For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 40 • “1050 Speaker” on page 43 • “1060 IO board” on page 45 • “1070 PCI Express Mini Card for wireless LAN” on page 46 • “1080 ODD board (V110-15ISK)” on page 48 Figure 9. Removal steps of DIMM Release the two latches on both edges of the socket at the same time in the direction shown by arrows 1, and then unplug the DIMM in the direction shown by arrow 2. When installing: Insert the notched end of the DIMM into the socket. Push the DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly fixed in the slot and difficult to move.

  • Page 54: 1100 Fan Assembly And Heat Sink Assembly

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual 1100 Fan assembly and Heat Sink assembly For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 40 • “1050 Speaker” on page 43 • “1060 IO board” on page 45 • “1070 PCI Express Mini Card for wireless LAN” on page 46 • “1080 ODD board (V110-15ISK)” on page 48 • “1090 DIMM” on page 49 Figure 10. Removal steps of fan assembly and heat sink assembly Unplug the fan connector in the direction shown by arrow 1 , and then remove the screws 2.
  • Page 55 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Figure 10. Removal steps of fan assembly and heat sink assembly (continued) Remove the fan assembly and heat sink assembly in the direction shown by arrow 3. Be careful not to damage the connector. When installing: Before you attach the fan assembly to the computer, apply thermal grease, at an amount of 0.2 grams, to the part shown in the figure above. Either too much or too little grease application can cause a thermal problem due to imperfect contact with a component.

  • Page 56: 1110 System Board

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual 1110 System board Important notices for handling the system board: When handling the system board, bear the following in mind. • Be careful not to drop the system board on a bench top that has a hard surface, such as metal, wood, or composite.
  • Page 57 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Figure 11. Removal steps of system board (continued) Remove the system board in the direction shown by arrow I.

  • Page 58: 1120 Upper Case

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual 1120 Upper case For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 40 • “1050 Speaker” on page 43 • “1060 IO board” on page 45 • “1070 PCI Express Mini Card for wireless LAN” on page 46 • “1080 ODD board (V110-15ISK)” on page 48 • “1090 DIMM” on page 49 • “1100 Fan assembly and Heat Sink assembly” on page 50 • “1110 System board” on page 52 Figure 12. Removal steps of upper case Remove the screws 1.
  • Page 59 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Figure 12. Removal steps of upper case (continued) V110-14AST Step Screw (quantity) Color Torque M2 × 3, Phillips head, nylok-coated (6) Black 1.85+/-0.15 kgf/cm HINGE BRK TO UPPER (V110-14AST/V110-14IAP) M2 × 4, Phillips head, nylok-coated (5) Black 1.85+/-0.15 kgf/cm HINGE BRK TO UPPER (V110-15ISK/V110-15AST/V110-15IAP) Open the hinges in the direction shown by arrows 2.
  • Page 60 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Figure 12. Removal steps of upper case (continued) Remove the DC in cable in the direction shown by arrow 3. Remove the screw 4. Then remove the power board in the direction shown by arrow 5. Step Screw (quantity) Color Torque M2 × 3, Phillips head, nylok-coated (1) Black 1.85+/-0.15 kgf/cm POWER BOARD TO UPPER...
  • Page 61 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Figure 12. Removal steps of upper case (continued) Release the antenna cables from the cable guides in the direction shown by arrows 6. Remove the upper case from the LCD module in the direction shown by arrow...

  • Page 62: 1130 Lcd Unit

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual 1130 LCD unit For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 40 • “1050 Speaker” on page 43 • “1060 IO board” on page 45 • “1070 PCI Express Mini Card for wireless LAN” on page 46 • “1080 ODD board (V110-15ISK)” on page 48 • “1090 DIMM” on page 49 • “1100 Fan assembly and Heat Sink assembly” on page 50 • “1110 System board” on page 52 • “1120 Upper case” on page 54 Figure 13. Removal steps of LCD unit...
  • Page 63 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Figure 13. Removal steps of LCD unit (continued) Remove the screws 2. Lift the LCD module slightly 3. Disconnect the connector in the direction shown by arrow 4. Then remove the LCD module. Step Screw (quantity) Color Torque M2 × 3, Phillips head, nylok-coated (4) Black 1.85+/-0.15 kgf/cm HINGE BRK TO LCD PANEL...

  • Page 64: 1140 Lcd Hinges

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual 1140 LCD hinges For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 40 • “1050 Speaker” on page 43 • “1060 IO board” on page 45 • “1070 PCI Express Mini Card for wireless LAN” on page 46 • “1080 ODD board (V110-15ISK)” on page 48 • “1090 DIMM” on page 49 • “1100 Fan assembly and Heat Sink assembly” on page 50 • “1110 System board” on page 52 • “1120 Upper case” on page 54 • “1130 LCD unit” on page 58 Figure 14. Removal steps of LCD hinges Remove the screws 1. Then release the two hinges in the direction shown by...

  • Page 65: 1150 Integrated Camera, Lcd Cable And Antenna Assembly

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST 1150 Integrated camera, LCD cable and antenna assembly For access, remove these FRUs in order: • “1010 Optical drive” on page 34 • “1020 Base cover” on page 35 • “1030 Battery pack” on page 38 • “1040 Hard disk drive” on page 40 • “1050 Speaker” on page 43 • “1060 IO board” on page 45 • “1070 PCI Express Mini Card for wireless LAN” on page 46 • “1080 ODD board (V110-15ISK)” on page 48 • “1090 DIMM” on page 49 • “1100 Fan assembly and Heat Sink assembly” on page 50 • “1110 System board” on page 52 • “1120 Upper case” on page 54 • “1130 LCD unit” on page 58 • “1140 LCD hinges” on page 60 Figure 15. Removal steps of integrated camera, LCD cable and antenna assembly Note: The integrated camera is stuck on the top center of the LCD cover.
  • Page 66 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Figure 15. Removal steps of integrated camera, LCD cable and antenna assembly (continued) Remove the LCD cable in the direction shown by arrows 2. Remove the antenna assembly in the direction shown by arrows 3.
  • Page 67 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Figure 15. Removal steps of integrated camera, LCD cable and antenna assembly (continued) Remove the camera in the direction shown by arrow 4. When installing: Stick the integrated camera to the top center of the LCD cover and adjust the placement of it to make sure the connector is attached firmly.

  • Page 68: Locations

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Locations Front view and right-side view 1 Integrated camera 2 Built-in microphone 3 Wireless LAN antennas 4 Computer display 5 Power button 6 Touchpad G Memory card slot H System status indicators Note: For the description of each indicator, see “Status indicators” on page 29. I Novo button J Combo audio jack K Optical disc drive L Kensington Mini Security slot V110-15ISK/V110-15IAP/V110-15AST...
  • Page 69 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST V110-14IAP/V110-14AST...

  • Page 70: Bottom And Left-Side View

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Bottom and Left-side view 1 Speakers 2 Ventilation slots 3 USB port 4 HDMI port 5 RJ-45 port 6 Ventilation slots 7 AC power adapter jack V110-15ISK/V110-15IAP/V110-15AST V110-14IAP/V110-14AST...

  • Page 71: Parts List

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Parts list This section presents the following service parts: • “Overall” on page 68 • “LCD FRUs” on page 75 • “Miscellaneous parts” on page 77 • “AC adapters” on page 78 • “Screws” on page 78 • “Power cords” on page 79 Note: Each FRU is available for all types or models, unless specific types or models are specified. Attention: Do not attempt to replace an FRU on your own. If an FRU is damaged, contact a Lenovo authorized servicer or a marketing representative for replacement or repair. Only qualified technicians can inspect or repair this product.

  • Page 72: Overall

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Overall V110-15ISK： V110-14AST：...
  • Page 73 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Table 4. Parts list—Overall V110- V110- V110- V110- V110- No. FRU FRU no. 14IAP 14AST 15ISK 15IAP 15AST See “Miscellaneous parts” on page 77. LCD unit (see “LCD FRUs” on page 75.) ThermalModule W 80TD DIS W/Fan 5H40L80170 ● ● ThermalModule W 80TL UMA W/Fan 5H40L78366 ● ThermalModule W 80TL DIS W/Fan 5H40L78381 ● ThermalModule W 80TD UMA W/Fan 5H40L80176 ● HDD (7mm & 9.5mm), 250G 5400rpm, 5H20J35763 WD2500LPCX-24VHAT0 7mm 5400rpm ● ●...
  • Page 74 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Table 4. Parts list—Overall (continued) V110- V110- V110- V110- V110- No. FRU FRU no. 14IAP 14AST 15ISK 15IAP 15AST eMMC, 64GB (design reserve), Sandisk SE10K90792 ● ● SDINADF4-64G-1001 eMMC, 64GB (design reserve), Samsung 5E10H00335 ● ● KLMCG8GEND 64GB UpperCase W 80TC W/KB/TP/Cable US 5CB0L80502 ● UpperCase W 80TC W/KB/TP/Cable UK 5CB0L80535 ●...
  • Page 75 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Table 4. Parts list—Overall (continued) V110- V110- V110- V110- V110- No. FRU FRU no. 14IAP 14AST 15ISK 15IAP 15AST UpperCase W 80TL W/KB/TP/Cable IT 5CB0L78317 ● ● UpperCase W 80TL W/KB/TP/Cable SP 5CB0L78380 ● ● UpperCase W 80TL W/KB/TP/Cable TR 5CB0L78344 ● ● UpperCase W 80TL W/KB/TP/Cable PO 5CB0L78319 ● ● UpperCase W 80TL W/KB/TP/Cable LA 5CB0L78352 ●...
  • Page 76 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Table 4. Parts list—Overall (continued) V110- V110- V110- V110- V110- No. FRU FRU no. 14IAP 14AST 15ISK 15IAP 15AST DDR3L Memory, DDR3L SoDIMM 4G, 4GB 5M30L20980 ● ● D3L S RMT3170MP68F9F-1600 DDR3L Memory, DDR3L SoDIMM 8G, 5M30G18424 ● ● M471B1G73EB0-YK0 1600 8GB DDR3L Memory, DDR3L SoDIMM 8G, 8GB 5M30K59783 ● ● D3L S HMT41GS6DFR8A-PB...
  • Page 77 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Table 4. Parts list—Overall (continued) V110- V110- V110- V110- V110- No. FRU FRU no. 14IAP 14AST 15ISK 15IAP 15AST MB W 80TD NOK A99410 DIS NFP 5B20L81950 ● MB W 80TD NOK A99410 UMA 4GNFP 5B20L81949 ● MB W 80TD NOK A99410 UMA NFP 5B20L81955 ● MB W 80TD NOK E29010 DIS 4GNFP 5B20L81962 ● MB W 80TD NOK E29010 DIS NFP 5B20L81948 ● MB W 80TD NOK E29010 UMA 4GNFP 5B20L81952 ● MB W 80TD NOK E29010 UMA NFP 5B20L81961 ●...
  • Page 78 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Table 4. Parts list—Overall (continued) V110- V110- V110- V110- V110- No. FRU FRU no. 14IAP 14AST 15ISK 15IAP 15AST MB W 80TL NOK I56200U UMA 4GNF 5B20L78314 ● MB W 80TL WIN I56200U UMA 4GNF 5B20L78390 ● MB W 80TL NOK I56200U UMA NFP 5B20L78385 ● MB W 80TL WIN I56200U UMA NFP 5B20L78324 ● MB W 80TL NOK I56267U DIS 4GNF 5B20L78322 ●...

  • Page 79: Lcd Frus

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST LCD FRUs In Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST, there are following types of LCDs. • “14.0-in. HD LED” • “15.6-in. HD LED”...
  • Page 80 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Table 5. Parts list—LCD FRUs V110- V110- V110- V110- V110- No. FRU FRU no. 14IAP 14AST 15ISK 15IAP 15AST LCD Bezel W 80TL W/O Camera 5B30L81939 ● ● LCD Bezel W 80TC 5B30L80531 ● LCD Bezel W 80TC W/O Camera 5B30L81943 ● LCD Bezel W 80TL 5B30L78388 ● ● Panel, INX N156BGA-EA2 HDT AG S NB, 5D10K81086 ●...

  • Page 81: Miscellaneous Parts

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Miscellaneous parts Table 6. Parts list—Miscellaneous parts V110- V110- V110- V110- V110- FRU no. 14IAP 14AST 15ISK 15IAP 15AST System miscellaneous parts: • ( a ) HDD Bracket W 80TL 5B40L78313 ● ● ● • ( b ) ODD Bracket W 80TL 5B40L78379 ● ● ● • ( c ) ODD Bezel W 80TC 5B30L80515 ●...

  • Page 82: Ac Adapters

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual AC adapters Table 7. Parts list—3-pin AC adapters V110-15ISK/ V110-14IAP/ FRU no. V110-15IAP/ V110-14AST V110-15AST Adapter, Delta ADLX45NDC3A 20V2.25A adap 5A10H03911 ● ● DOE, 45W (3pin) Adapter, Liteon ADLX45DLC3A 20V2.25A adap 5A10H03910 ● ● DOE, 45W (3pin) Adapter, Chicony ADLX45NCC3A 20V2.25A adap 5A10H03912 ● ● DOE, 45W (3pin) Adapter, Acbel ADLX45NAC3A 20V2.25A adap, 5A10K02213 ● ●...

  • Page 83: Power Cords

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Power cords A Lenovo power cord for a specific country or region is usually available only in that country or region: Table 9. Parts list—3-pin power cords V110-15ISK/ V110-14IAP/ Region V110-15IAP/ V110-14AST V110-15AST CCC 3PIN 145000600 ● ● • LINETEK PC323+RVV300/300+LS15 1m Argentina 3PIN 145000599 ● ● • LINETEK LS15+H03VV-F+LP39 1m Danmark 3PIN 145000598 ● ● • LINETEK LS15+H03VV-F+LP-38 1m Switzerland 3PIN 145000597 ● ● • LINETEK LS15+H03VV-F+LP-37 1m...
  • Page 84 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Table 9. Parts list—3-pin power cords (continued) V110-15ISK/ V110-14IAP/ Region V110-15IAP/ V110-14AST V110-15AST Israel 3PIN 145000563 ● ● • Longwell LP-41+H03VV-F+LS-18 1m UL 3PIN 145000562 ● ● • Longwell LP-30B+SPT-2 18AWG+LS-18 1m UK 3PIN 145000561 ● ● • Longwell LP-61L+H03VV-F+LS-18 1m Indian 3PIN 145000560 ●...
  • Page 85 Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/V110-15AST Table 9. Parts list—3-pin power cords (continued) V110-15ISK/ V110-14IAP/ Region V110-15IAP/ V110-14AST V110-15AST Argentina 3PIN 145000528 ● ● • VOLEX VA2073+H03VV-F+VAC5S 1m Brazil 3PIN 145000527 ● ● • VOLEX CH10S3+H03VV-F+VAC5S 1m Israel 3PIN 145000526 ● ● • VOLEX SI16S3+H03VV-F+VAC5S 1m CE 3PIN 145000525 ● ● • VOLEX M2511+HO3VV-F+VAC5S 1m 145500000 ●...

  • Page 86: Notices

    Lenovo V110-14IAP/V110-14AST/V110-15ISK/V110-15IAP/ V110-15AST Hardware Maintenance Manual Notices Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead. However, it is the...

  • Page 87: Trademarks

    Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment. Trademarks The following terms are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. Lenovo OneKey Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both. Other company, products, or service names may be trademarks or service...

This manual is also suitable for:
