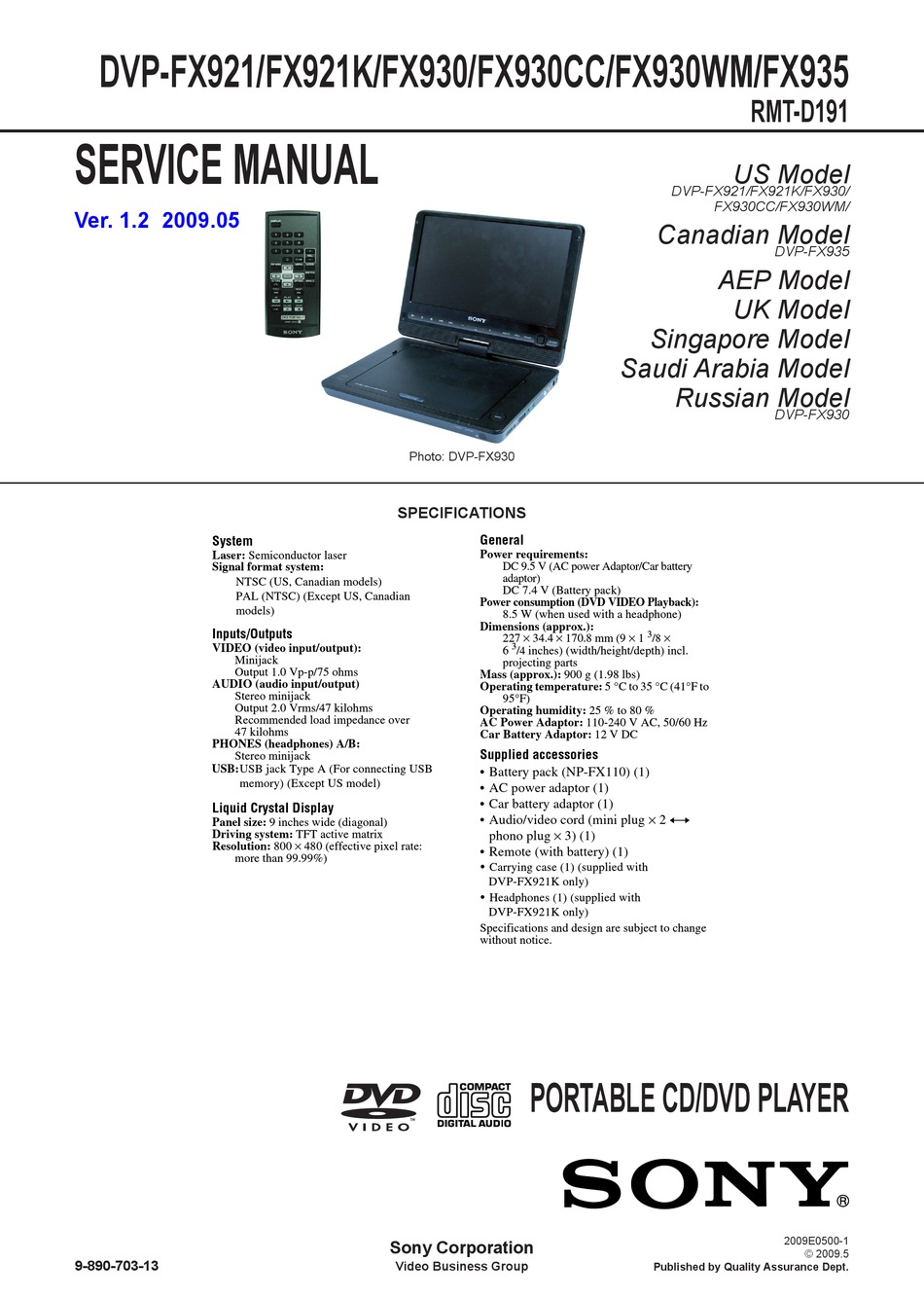

DVP-FX921/FX921K/FX930/FX930CC/FX930WM/FX935
SERVICE MANUAL
Ver. 1.2 2009.05
System
Laser: Semiconductor laser
Signal format system:
NTSC (US, Canadian models)
PAL (NTSC) (Except US, Canadian
models)
Inputs/Outputs
VIDEO (video input/output):
Minijack
Output 1.0 Vp-p/75 ohms
AUDIO (audio input/output)
Stereo minijack
Output 2.0 Vrms/47 kilohms
Recommended load impedance over
47 kilohms
PHONES (headphones) A/B:
Stereo minijack
USB: USB jack Type A (For connecting USB
memory) (Except US model)
Liquid Crystal Display
Panel size: 9 inches wide (diagonal)
Driving system: TFT active matrix
Resolution: 800 × 480 (effective pixel rate:
more than 99.99%)
9-890-703-13

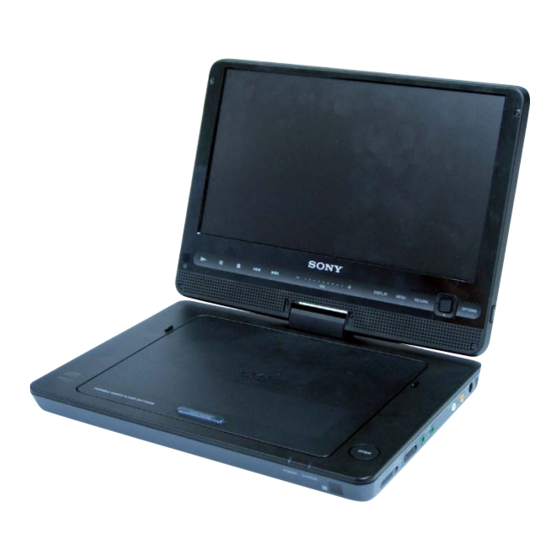

Photo: DVP-FX930
SPECIFICATIONS
General
Power requirements:
DC 9.5 V (AC power Adaptor/Car battery
adaptor)
DC 7.4 V (Battery pack)
Power consumption (DVD VIDEO Playback):
8.5 W (when used with a headphone)
Dimensions (approx.):
227 × 34.4 × 170.8 mm (9 × 1
3
6
/
inches) (width/height/depth) incl.
4
projecting parts
Mass (approx.): 900 g (1.98 lbs)
Operating temperature: 5 °C to 35 °C (41°F to
95°F)
Operating humidity: 25 % to 80 %
AC Power Adaptor: 110-240 V AC, 50/60 Hz
Car Battery Adaptor: 12 V DC
Supplied accessories
• Battery pack (NP-FX110) (1)
• AC power adaptor (1)
• Car battery adaptor (1)
• Audio/video cord (mini plug × 2 y
phono plug × 3) (1)
• Remote (with battery) (1)
•
Carrying case (1) (supplied with
DVP-FX921K only)
•
Headphones (1) (supplied with
DVP-FX921K only)
Specifications and design are subject to change
without notice.
PORTABLE CD/DVD PLAYER
Sony Corporation
Video Business Group
RMT-D191
US Model
DVP-FX921/FX921K/FX930/
FX930CC/FX930WM/
Canadian Model
DVP-FX935
AEP Model
UK Model
Singapore Model
Saudi Arabia Model
Russian Model
DVP-FX930
3
×
/
8
2009E0500-1
Published by Quality Assurance Dept.
© 2009.5
