Summary of Contents for Smeg SE284ID

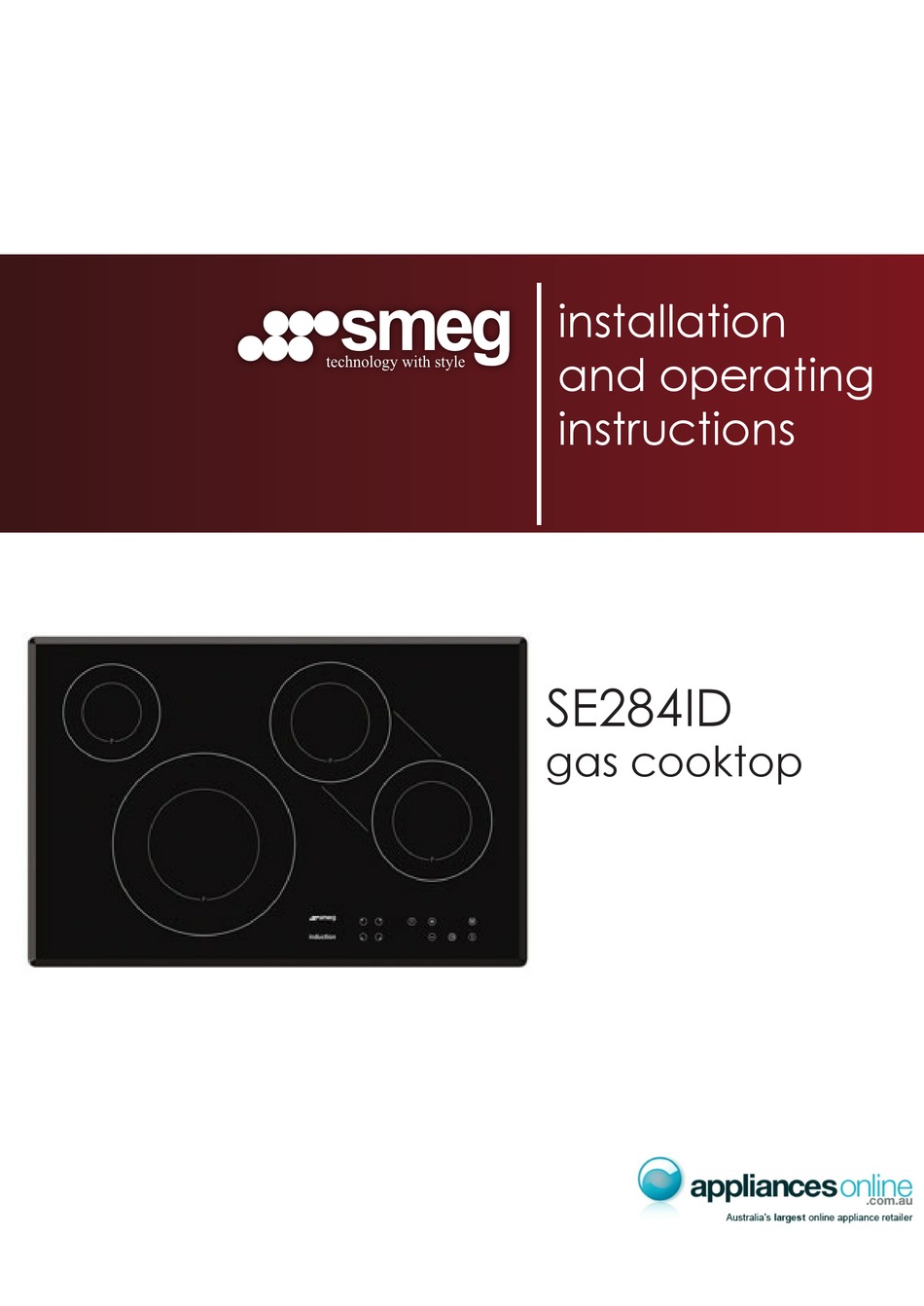

- Page 1 � � � � � � and operating technology with style instructions SE284ID gas cooktop...
-
Page 2: Table Of Contents
You now own an induction glass ceramic hob with sensor keys. Chapters 2 and 3 of these Operating Instructions contain information on how you can make sure that your hob gives many years of service. These Operating Instructions are for use with several types of hobs. The rating label on the front of these Instructions will show you which type you have bought. -
Page 3: Operations
1. Operations 1.1 Your new hob This manual covers the models: SE 2642 ID, SE 2742 ID, SE 2842 ID. 1.2 Touch-Control panel After the supply voltage has been applied (mains connection), a rapid self-test of the control unit (calibration adjustment) is then carried out. - Page 4 Induction cooking zones with Pan Recognition An advantage of the induction heating method is the pan recognition. If there is no pan or a too small pan placed on the hotplates, no energy ist transmitted. If the cooking zone is switched on, the pan symbol “u” flashes in the "...
-
Page 5: Things To Watch Out For
Safety switch-off The maximum operating time for each individual cooking zone Table of times is limited, and details are shown in the enclosed table of times. maximum operating time, When the safety switch-off has switched off the touch control in hours "... -
Page 6: General
2.1.3 General The best transmission is obtained when the pans and the cooking zone are of equal dimension. For the minimum or maximum pan bottom diameter for the cooking zone, please see the following table. The minimum pot bottom diameter depends on the quality of the cookware. Cooking zones Pan bottom diameter Diameter... -
Page 7: Cleaning And Maintenance
3. Cleaning and maintenance Always clean the glass surface after it has cooled down. Even the slightest amount of dirt will burn into the surface the next time you switch it on. Use only recommended cleaners. Steel wool, sponges and powdered cleaning agents must not be used since they may scratch the surface. -
Page 8: Fitting By Trained Personnel
4. Fitting by trained personnel 4.1 Worktop cut-out Carry out all cutting out of furniture units and worktops before fitting the appliance, and remove all sawdust and chips. The dimensions of the worktop recess can be seen in the dimension drawing (figs. -
Page 9: Electrical Connection
4.3 Electrical connections (connected loads) (Connected loads and model designation: see front of the operating instructions) This appliance may only be connected to the electricity supply by an approved electrician who must ensure that installation complies with statutory safety regulations, norms and instructions valid in your country. The electrician- must ensure that these regulations and those laid down by the local electricity supply company are observed. - Page 10 Types: SE 2642 ID, SE 2742 ID, SE 2842 ID Type: SE 2642 ID Fig. 1 Fig. 2 Type: SE 2742 ID Fig. 1 Fig. 2 Type: SE 2842 ID Fig. 1 Fig. 2 Minimum distances to adjacent walls Cut-out dimension Outside dimensions of recess Cable routing in rear wall 224244...
- Page 11 Types: SE 2642 ID, SE 2742 ID, SE 2842 ID Fig. 3 Fig. 4 224244...
