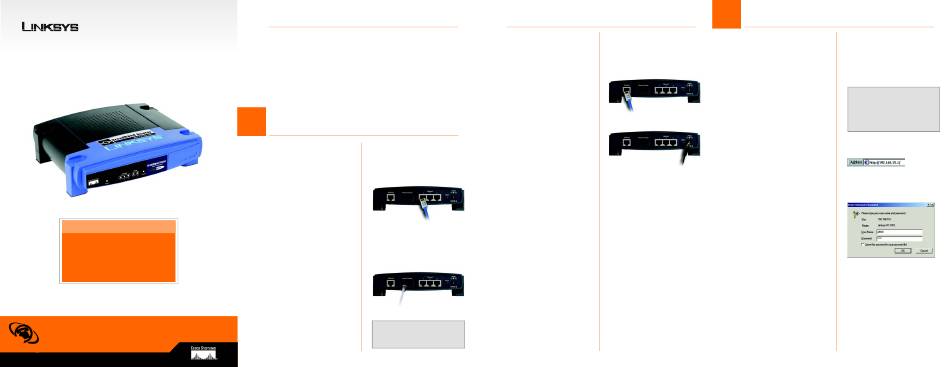

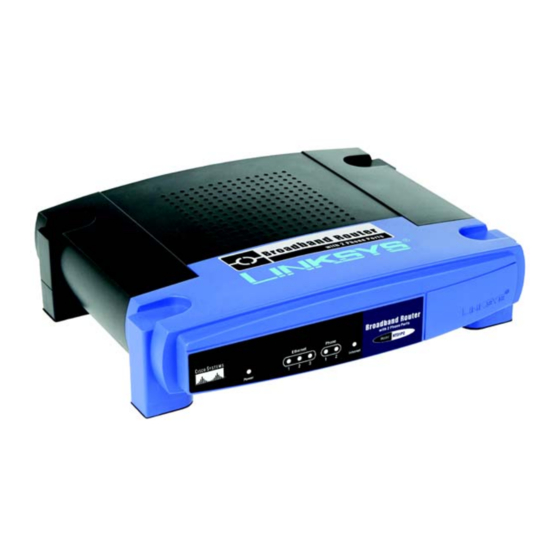

Linksys RT31P2-VU Quick Installation

®
A Division of Cisco Systems, Inc.

Package Contents

• Broadband Router with 2 Phone Ports
• Power Adapter
• Setup Wizard CD-ROM with Norton Internet Security
• Installation and Troubleshooting Guide
• Network Cable
• Telephone Jack Adapter
• Quick Installation
Broadband Router
with 2 Phone Ports
Quick Installation
VoIP VoIP
Model No. RT31P2-VU
Model No.
There are two ways to configure the Router. Choose one of the following:
• Run the Setup CD-ROM - It is strongly recommended that you use the
Setup CD-ROM. Insert the Setup CD-ROM into the CD-ROM drive, and
follow the on-screen instructions.
•Use this Quick Installation guide - If you wish, you can use the Router's
Web-based Utility. Proceed to Step 1 of this Quick Installation.
1

Connect the Router

A
Make sure that all of your
hardware is powered off,
including the Router, PCs, and
cable or DSL modem.
B
Connect one end of an
Ethernet network cable to one
of the numbered ports on the
back of the Router. Connect
the other end to an Ethernet
port on a network device, e.g.,
B
a PC, print server, or switch.
Repeat this step to connect
more PCs or other network
devices to the Router.
C
If necessary, disconnect the
telephone cable from the
telephone wall jack and
connect that end to the
telephone jack adapter. Then
connect the adapter to the
C
Router's PHONE 1 port.
NOTE: Make sure your telephone
is set to its tone setting (not
pulse).
D
If you have a second phone
line, repeat step C to connect
a telephone or fax machine to
the Router's PHONE 2 port.
E
Connect your cable or DSL
modem's Ethernet cable to
the Router's Internet port. (If
your modem only provides a
USB output, then you will need
E
to upgrade your modem.)
F
Power on the cable or DSL
modem.
G
Connect the included power
adapter to the Router's Power
port, and then plug the power G
adapter into an electrical
outlet.
The Power LED on the front
panel will light up as soon as
the power adapter is
connected properly.
H
Power on the PC you wish to
use to configure the Router.
2

Configure the Router

In Step 2, you will need the setup
instructions provided by your Internet
Service Provider (ISP). If you do not
have this information, then contact
your ISP before proceeding.
The instructions from your ISP tell you
NOTE: Make sure your PC's
how to set up your PC for Internet
Ethernet adapter is set to obtain
access. Because you are now using
the Router to share Internet access an IP address automatically. For
among several computers, you will
more information, refer to
use the setup information to
Windows Help.
configure the Router instead of
your PC.
A
Open your PC's web browser.
Enter http://192.168.15.1 (the
Router's default local IP
A
address) in the web browser's
Address field. Then press the
Enter key.
B
A screen will appear and ask
you for a User Name and
Password. Enter admin (the
default) in the User Name and
Password fields. (Later you
should set a new password
using the Administration tab's
Management screen. This will
B
help secure access to the
Web-based Utility.)
Then click the OK button.
