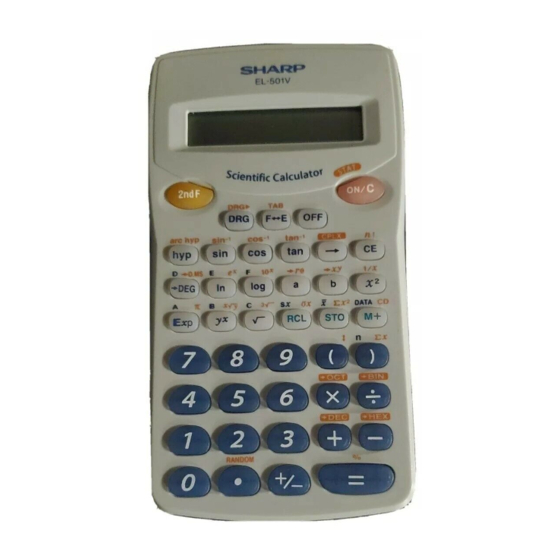

Sharp EL-501V Operation Manual

ENGLISH
SCIENTIFIC CALCULATOR
MODEL
EL-501V
OPERATION MANUAL
PRINTED IN CHINA / IMPRIMÉ EN CHINE
00KUP (TINSK0416THZZ)
INTRODUCTION
About operation examples, please refer to the attached
sheet.
Refer to the number on the right of each title for use.
After reading this manual, store it in a convenient location for
future reference.
Operational Notes
To ensure trouble-free operation, please observe the follow-
ing points:
1. Do not carry the calculator in the back pocket of slacks or
trousers.
2. Do not subject the calculator to extreme temperatures.
3. Do not drop it or apply excessive force.
4. Clean only with a soft, dry cloth.
5. Do not use or store the calculator where fluids can splash
onto it.
If service should be required on this calculator, use only a
SHARP servicing dealer, SHARP approved service facility, or
SHARP repair service where available.
Hard Case
DISPLAY
• Floating point system
←Symbol
• Scientific notation system
Mantissa
Exponent
(During actual use not all symbols are displayed at the same
time.)
If the value of mantissa does not fit within the range
±0.000000001 – ±9999999999, the display changes to scien-
tific notation. The display mode can be changed according to
the purpose of the calculation.
: Appears when @ is pressed, indicating that the
2ndF
functions shown in orange are enabled.
: Indicates that h has been pressed and the hy-
HYP
perbolic functions are enabled. If @ H are
pressed, the symbols "2ndF HYP" appear, indicat-
ing that inverse hyperbolic functions are enabled.
DEG/RAD/GRAD: Indicates angular units and changes each
time G is pressed. The default setting is DEG.
( ) : Appears when a calculation with parentheses is per-
formed by pressing (.
: Indicates that @ ê has been pressed.
BIN
Binary system mode is selected.
: Indicates that @ î has been pressed.
OCT
Octal system mode is selected.
: Indicates that @ ì has been pressed.
HEX
Hexadecimal system mode is selected.
CPLX : Indicates that @ π has been pressed.
Complex number mode is selected.
STAT : Indicates that @ Æ has been pressed.
Statistics mode is selected.
M : Indicates that a numerical value is stored in the
independent memory.
E : Appears when an error is detected.
BEFORE USING THE CALCULATOR
Key Notation Used in this Manual
In this manual, key operations are described as follows:
To specify A (HEX) : A
π
A : @ V
To specify π
Exp
: E
To specify Exp
Functions that are printed in orange above the key require
@ to be pressed first before the key. Numbers are not
shown as keys, but as ordinary numbers.
Power On and Off
Press ª to turn the calculator on, and F to turn it off.
Clearing Methods
• Press ª to clear the entries except for a numerical
value in the independent memory and statistical data.
• Press æ to clear the number entered prior to use of
function key.
• In case of one digit correction of the entered number, press
ø (right shift key).
Priority Levels in Calculation
This calculator performs operations according to the following
1
priority:
2
Functions such as sin, x 2 , and %
¿y
3
y x , x
×, ÷
4
5
+, –
=, M+ and other calculation ending instruction
• Calculations which are given the same priority level are
executed in sequence.
• If parentheses are used, parenthesized calculations have
precedence over any other calculations.
• Parentheses can be continuously used up to 15 times un-
less pending calculations exceed 4.
INITIAL SETUP
Mode Selection
Normal mode: ª
Used to perform arithmetic operations and function calcula-
tions. BIN, OCT, HEX, CPLX and STAT are not displayed.
Binary, Octal, Decimal, or Hexadecimal system mode:
@ê, @î, @í or @ì
Complex number mode: @π
Used to perform arithmetic operations with complex numbers.
To clear this mode, press @π.
Statistics mode: @Æ
Used to perform statistical calculations. To clear this mode,
press @Æ.
When executing mode selection, statistical data will be cleared
even when reselecting the same mode.
• By press F or Automatic power off function, the mode is
cleared and returned to the normal mode.
Selecting the Display Notation and Decimal Places
• When calculation result is displayed in the floating point
system, pressing ∞ displays the result in the scientific
notation system.
Pressing ∞ once more displays the result again in the
floating point system.
• Pressing @i and any value between 0 and 9 speci-
fies the number of decimal places in the calculation result.
To clear the setting of decimal places, press @ i
..
100000÷3=
ª100000/3=
[Floating point]
@i 2
[TAB set to 2]
∞
→[Scientific notation]
∞@i.
→[Floating point]
• If the value for floating point system does not fit in the
following range, the calculator will display the result using
scientific notation system:
0.000000001 ≤ | x | ≤ 9999999999
Determination of the Angular Unit
In this calculator, the following three angular units can be
specified.
DEG (°)
Press G
(Radians)
GRAD (g) RAD
SCIENTIFIC CALCULATIONS
• Calculate in the normal mode.
• In each example, press ª to clear the display.
Arithmetic Operations
• The closing parenthesis ) just before = or ;
may be omitted.
• When entering only a decimal place, it is not necessary to
press 0 before ..
Constant Calculations
• In the constant calculations, the addend becomes a con-
stant. Subtraction and division are performed in the same
manner. For multiplication, the multiplicand becomes a con-
stant.
Functions
• Refer to operation examples of each function.
• For most calculations using functions, enter numerical val-
ues before pressing the function key.
• The results of inverse trigonometric functions are displayed
within the following range:
θ = sin x , θ = tan θ = cos
–1 –1
x
–90 ≤ θ ≤ 90 0 ≤ θ ≤ 180
DEG
π π
– — ≤ θ ≤ — 0 ≤ θ ≤ π
RAD
2 2
–100 ≤ θ ≤ 100 0 ≤ θ ≤ 200
GRAD
Random Numbers
A pseudo-random number with three significant digits can be
generated by pressing @ `. Random number genera-
tion is not possible when binary/octal/hexadecimal system
mode is set.
Angular Unit Conversions
Each time @ g are pressed, the angular unit changes
in sequence.
Memory Calculations
This calculator has one independent memory. It is available in
the normal mode and binary, octal, hexadecimal system mode.
• The independent memory is indicated by the three keys:
O, R, ;.
Before starting a calculation, clear the memory by pressing
ª and O.
• A value can be added to or subtracted from an existing
memory value. When subtracting a number from the
memory, press ± and ;.
• The contents of the memory are retained even when the
calculator is turned off. A value stored in memory will thus
remain until it is changed or until the batteries run out.
Chain Calculations
This calculator allows the previous calculation result to be
used in the following calculation.
The previous calculation result will not be recalled after enter-
ing multiple instructions.
Time, Decimal and Sexagesimal Calculations
This calculator performs decimal-to-sexagesimal conversion
and sexagesimal-to-decimal conversion. In addition, the four
basic arithmetic operations and memory calculations can be
carried out using the sexagesimal system.
Notation for sexagesimal is as follows:
123.404080
degree second
minute
Note: When the calculation or conversion result is converted,
a residual may occur.
Coordinate Conversions
• Before performing a calculation, select the angular unit.
Y Y
P (r, θ )
P (x,y )
↔ r
y
θ
X X
0 0
x
Polar coord.
Rectangular coord.
BINARY, OCTAL, DECIMAL, AND
HEXADECIMAL OPERATIONS (N-BASE)
This calculator can perform the four basic arithmetic opera-
tions, calculations with parentheses and memory calculations
using binary, octal, decimal, and hexadecimal numbers.
When performing calculations in each system, first set the
calculator in the desired mode before entering numbers.
It can also perform conversions between numbers expressed
in binary, octal, decimal and hexadecimal systems.
Conversion to each system is performed by the following
keys:
Ï ê : Converts to the binary system. "BIN" appears.
Ï î : Converts to the octal system. "OCT" appears.
Ï ì : Converts to the hexadecimal system. "HEX"
appears.
Ï í : Converts to the decimal system. "BIN", "OCT",
and "HEX" disappear from the display.
Conversion is performed on the displayed value when these
keys are pressed.
Note: In this calculator, the hexadecimal numbers A – F are
entered by pressing E, Ñ, ⁄, ´, I, A B
and l, and displayed as follows: F
A → å, B → ∫, C → ç, D → ∂, E → é, F → ƒ
In the binary, octal, and hexadecimal systems, fractional parts
cannot be entered. When a decimal number having a frac-
tional part is converted into a binary, octal, or hexadecimal
number, the fractional part will be truncated. Likewise, when
the result of a binary, octal, or hexadecimal calculation in-
33333.33333
cludes a fractional part, the fractional part will be truncated. In
33333.33
the binary, octal, and hexadecimal systems, negative num-
3.33 04
bers are displayed as a complement.
33333.33333
COMPLEX NUMBER CALCULATIONS
To carry out addition, subtraction, multiplication, and division
using complex numbers, press @π to select the com-
plex number mode.
• A complex number is represented in the a + bi format. The
"a" is the real part while the "bi" is the imaginary part. When
inputting the real part, after inputting the number press
a. When inputting the imaginary part, after inputting the
number press b. To obtain the result press =.
• Immediately after completing calculation, you can recall the
value of the real part with a, and the value of the
imaginary part with b.
• If the complex numbers are represented as polar coordi-
nates, press @} after they are input with a and
b.
STATISTICAL CALCULATIONS
Press @ Æ to select statistics mode.
(1)
The following statistics can be obtained:
x Mean of samples (x data)
Sample standard deviation (x data)
sx
σ x
Population standard deviation (x data)
n Number of samples
(2) Σ x
Sum of samples (x data)
Σ x
2 Sum of squares of samples (x data)
Entered data are kept in memory until @ Æ or F
are pressed. Before entering new data, clear the memory
contents.
(3)
[Data Entry]
Data k
Data * frequency k (To enter multiples of the
same data)
[Data Correction]
Correction prior to pressing k:
Delete incorrect data with ª.
–1 x
Correction after pressing k:
Press @ J to delete the latest entry.
Statistical Calculation Formulas
x = Σx n
Σx
σx =
Σx
Σx = x
2 – nx 2 + x
1
sx =
Σx
2 = x 2
n – 1 1
(4)
In the statistical calculation formulas, an error will occur when:
• the absolute value of the intermediate result or calculation
result is equal to or greater than 1 × 10
• the denominator is zero.
(5)
• an attempt is made to take the square root of a negative
number.
ERROR AND CALCULATION RANGES
Errors
An error will occur if an operation exceeds the calculation
ranges, or if a mathematically illegal operation is attempted.
In the case of an error, the display will show "E".
An error can be cleared by pressing ª.
Calculation Ranges
• Within the ranges specified below, this calculator is accu-
(6)
rate to ±1 in the least significant digit of the mantissa. When
performing continuous calculations (including chain calcu-
lations), errors accumulate leading to reduced accuracy.
• Calculation ranges
±10 -99 ~ ±9.999999999×10 99 and 0.
If the absolute value of an entry or a final or intermediate
(7)
result of a calculation is less than 10
ered to be 0 in calculations and in the display.
Function Dynamic range
| x | ≤ 4.499999999 × 10
DEG:
(tan x : | x | ≠ 90 (2n–1))*
| x | ≤ 785398163.3
sin x, RAD:
(tan x : | x | ≠ – (2n–1))*
tan x
| x | ≤ 4.999999999 × 10
GRAD:
(tan x : | x | ≠ 100 (2n–1))*
l x l ≤ 4.500000008 × 10
DEG:
l x l ≤ 785398164.9
cos x RAD:
l x l ≤ 5.000000009 × 10
GRAD:
| x | ≤ 1
sin –1 x , cos –1 x
¿x
(8)
tan –1 3 | x | < 10 100
x,
≤ x < 10
In x , log x 10 –99 100
e x < x ≤ 230.2585092
100
–10
10 x
–10 100 < x < 100
sinh x,
| x | ≤ 230.2585092
cosh x
tanh x l x l < 10 100
| x | < 5 × 10
sinh –1 x 99
Function
1 ≤ x < 5 × 10
(9) –1
cosh x
tanh –1 | x | < 1
x
x 2 | x | < 10
¿x
0 ≤ x < 10
1 | x | < 10
/x
0 ≤ n ≤ 69*
n!
→D.MS
| x | < 1 × 10
→DEG
x, y → r, θ
| x |, | y | < 10
0 ≤ r < 10
DEG:
r, θ → x, y
RAD:
GRAD :
DEG→RAD, GRAD→DEG: | x | < 10
DRG |
RAD→GRAD: | x | < – × 10
• y > 0:
• y = 0:
y x
• y < 0:
C D E
• y > 0:
x ¿y
• y = 0:
• y < 0:
(A+Bi)+(C+Di) | A ± C | < 10
(A+Bi)–(C+Di) | B ± D | < 10
(A+Bi)×(C+Di) (AC – BD) < 10
(AD + BC) < 10
AC + BD
C
(A+Bi)÷(C+Di) BC – AD
C
(10)
C 2
→DEC
DEC
→BIN
BIN
→OCT
→HEX
OCT
HEX
* (n: integer)
BATTERY REPLACEMENT
Notes on Battery Replacement
Improper handling of batteries can cause electrolyte leakage
or explosion. Be sure to observe the following handling rules:
(11)
• Replace both batteries at the same time.
• Do not mix new and old batteries.
• Make sure the new batteries are the correct type (LR44).
• When installing, orient each battery properly as indicated in
the calculator.
• Batteries are factory-installed before shipment, and may be
exhausted before they reach the service life stated in the
specifications.
When to Replace the Batteries
If the display has poor contrast, the batteries require replace-
ment.
Caution
• Keep batteries out of the reach of children.
• Exhausted batteries left in the calculator may leak and
damage the calculator.
• Explosion risk may be caused by incorrect handling.
• Batteries must be replaced only with others of the same
type.
• Do not throw batteries into a fire as they may explode.
Replacement Procedure
1. Turn the power off by pressing F.
2. Loosen both screws and remove the battery cover. (Fig. 1)
Fig. 1
2 – nx 2
n
+ ··· + x
2 n
+ x 2 + ··· + x 2
2 n
3. Remove the used batteries then replace with two fresh
(n: Number of samples)
batteries with the positive sides (+) facing up. (Fig. 2)
4. Replace the battery cover and screws.
5. Press ª.
• Make sure that the display appears as shown below. If the
display does not appear as shown, reinstall the batteries
100 .
and check the display once again.
Automatic Power Off Function
This calculator will turn itself off to save battery power if no
key is pressed for approximately 8 minutes.
SPECIFICATIONS
Calculations:
Internal calculations:
Pending operations:
Power source:
Power consumption:
Operating time:
–99 , the value is consid-
10
Operating temperature: 0°C – 40°C (32°F – 104°F)
External dimensions:
π
2
10 Weight:
Accessories:
10
10
FOR MORE INFORMATION ABOUT THIS
CALCULATOR
Visit our Web site.
http://sharp-world.com/calculator/
Dynamic range
99
50
100
(x ≠ 0)
100
100
y
50 l – l, x 2 + y 2 < 10 100
x
100
| θ | < 4.5 × 10
10
| θ | ≤ 785398163.3
| θ | < 5 × 10
10
100
π
98
2
< x lny ≤ 230.2585092
–10 100
0 < x < 10 100
x = n
1
(0 < l x l < 1: – = 2n–1, x ≠ 0)*,
x
< x |n l y | ≤ 230.2585092
–10 100
< – lny ≤ 230.2585092 (x ≠ 0) 1
–10 100
x
0 < x < 10 100
x = 2n–1
1
(0 < | x | < 1 : – = n, x ≠ 0)*,
x
1
< – ln | y | ≤ 230.2585092
–10 100
x
100
100
100
100
< 10 100
2 2
+ D
< 10 100
2 + D 2
≠ 0
+ D 2
| x | ≤ 9999999999
:
1000000000 ≤ x ≤ 1111111111
:
0 ≤ x ≤ 111111111
4000000000 ≤ x ≤ 7777777777
:
0 ≤ x ≤ 3777777777
FDABF41C01 ≤ x ≤ FFFFFFFFFF
:
0 ≤ x ≤ 2540BE3FF
Fig. 2
Scientific calculations, binary/octal/
hexadecimal number calculations,
complex number calculations, statisti-
cal calculations, etc.
Mantissas of up to 10 digits
4 calculations
3V ¶ (DC):
Alkaline batteries (LR44) × 2
0.0005 W
Approx. 3000 hours
when continuously displaying 55555.
at 25°C (77°F).
Varies according to use and other
factors.
78.6 mm (W) × 144 mm (D) × 10.5
mm (H)
3-3/32" (W) × 5-21/32" (D) × 13/32" (H)
Approx. 68 g 0.150 lb
(Including batteries)
Batteries × 2 (installed), operation
manual, operation examples sheet,
quick reference card and hard case
