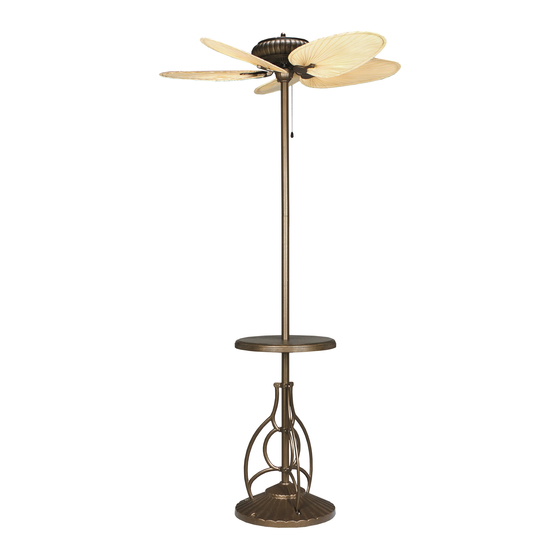

The Torrento
®
Pedestal Fan
Wet Location Model
Net Weight 75 lbs.
Model No. FP920
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Torrento FP920 and is the answer not in the manual?

Questions and answers

Related Manuals for Fanimation Torrento FP920

Summary of Contents for Fanimation Torrento FP920

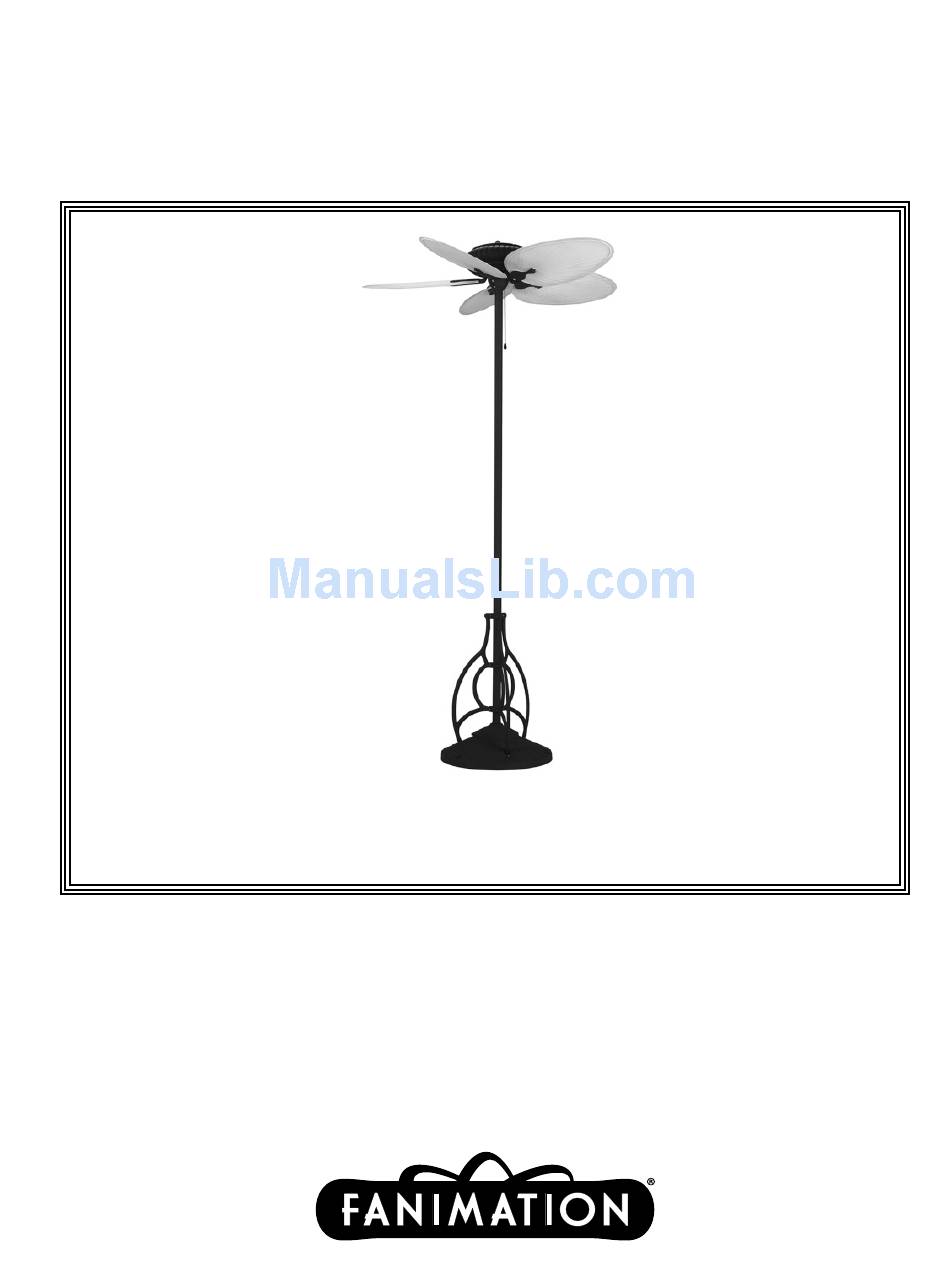

  • Page 1 The Torrento ® Pedestal Fan Wet Location Model Net Weight 75 lbs. Model No. FP920 OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS...

  • Page 2: Table Of Contents

    Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must accompany authorized returns and must be sent freight prepaid to Fanimation.

  • Page 3: Tools Needed For Assembly

    Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts.

  • Page 4: Electrical Requirements

    3. Route the cord attached to (Base Assembly) wire through the bottom part of the Support Shaft. (Figure 2) Pull cord through Shaft until wires are completely through the Shaft. FP920 – TORRENTO ® Electrical Requirements To reduce the risk of personal injury, this product must be SECURED as described on page 8.
  • Page 5 Shaft holes (3) to insure proper mounting with set-screws provided. Do NOT over-tighten! NOTE: Periodically check Control Housing Support Assembly hardware and re-secure if necessary. (see Maintenance, page 8) FP920 – TORRENTO ® Base Assembly Support Shaft Filigree (3) Cover Base...
  • Page 6 10. Securely attach the Fan Motor Unit to the Control Housing Support Assembly using the screws supplied with the fan. (Figure 8) NOTE: Periodically check Fan Motor Unit hardware and re-secure if necessary. (See Maintenance, page 8) FP920 – TORRENTO ® 4-Pin Connector (to Fan Motor) Screw (4)

  • Page 7: Mounting The Fan Blades

    Blade Holders to the Fan Motor Hub are tight and that the Blade Holders are properly seated. (Figure 3) NOTE: Periodically check Blade Holder hardware and re- secure if necessary. (See Maintenance, page 8) FP920 – TORRENTO ® Mounting the Fan Blades Blade Holder Cover...

  • Page 8: Mounting Fan Base To Floor

    1. Make hole pattern using base assembly and pre-drill pilot holes using ¼˝ drill bit. 2. Attach base to deck using supplied ⅜˝ lag bolts and flat washers. FP920 – TORRENTO ® Mounting Fan Base to Floor Concrete Surface; Pre-drill ⅝˝ pilot holes (3 places) Concrete Deck or Porch NOTE: Minimum concrete thickness to be 5 inches thick.

  • Page 9: Operating Instructions - Pull Chain

    Plastic blades may be wiped down with a wet cloth or sponge and household cleaner. Periodic light dusting of the Woven Bamboo blades is recommended. FP920 – TORRENTO ® To reduce the risk of electric shock, connect ONLY to an outlet provided with a Ground Fault Circuit Interrupter device.

  • Page 10: Parts List

    Before discarding packaging materials, be certain all parts have been removed How To Order Parts Contact your retail store for repair parts. When ordering repair parts, always give the following information. FP920 – TORRENTO ® Parts List Model #FP920 Description –24 x 12 mm (11)

  • Page 11: Exploded-View Illustration

    FP920 – TORRENTO ® The Torrento FP920 ® Exploded-View Figure 1 NOTE: The illustration shown is not to scale or its actual confi guration may vary. Wires partially removed for clarity. Blades are not included with this fan.

  • Page 12: Trouble Shooting

    2. Screws holding the filigree to the support shaft are loose. 3. Screws securing fan blade holders to fan motor hub are loose. 4. Blade holders not seated properly. FP920 – TORRENTO ® Trouble Shooting ▲WARNING Probable Cause 1. Check main and branch circuit fuses or circuit breakers.
  • Page 13 FP920 – TORRENTO ®...
  • Page 14 FP920 – TORRENTO ® 10983 Bennett Parkway Zionsville, IN 46077 (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website @ www.fanimation.com Copyright 2007 Fanimation, Inc. 2007/10...
