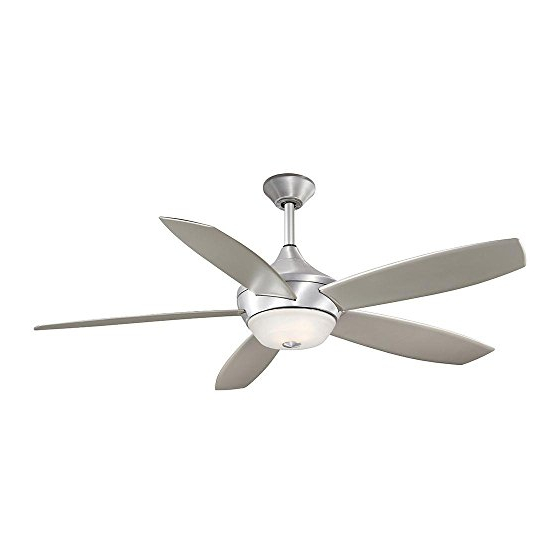

- Page 1 Spring Haven READ AND SAVE ALL INSTRUCTIONS INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws. 1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267...
-
Page 3: Table Of Contents
WARRANTY The Aire warranty is for one (1) year from the date of purchase from an authorized Aire dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. -
Page 4: Safety Rules
SAFETY RULES 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. -
Page 5: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blades (5) 13. Receiver with 6 wire nuts 14. Transmitter+holder+2 mounting screws 2. Blade support plates (5 ) 15. 12V MN21/A23 battery 3. Hanger bracket A. -
Page 6: Installing The Fan
Note: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling. Longer downrods are available from your Aire dealer. To hang your fan where there is an existing fixture but no ceiling joist, you may need to install a hanger bar as shown in Fig. -
Page 7: Hanging The Fan
The use of other parts, hardware or components not supplied by Aire with the fan will void the Aire Warranty. REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Step 1. -
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock be sure electricity is turned off at the main fuse or breaker box before wiring. NOTE: This remote control unit is equipped with 16 code combinations to prevent possible interference from or to other remote units. -
Page 9: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 10: Attaching The Fan Blades
ATTACHING THE FAN BLADES Insert one fan blade into the blade slot on the motor housing and secure with the blade support plates and screws. Securely tighten screws. Repeat process with other blades. (Fig. 15) FAN BLADE SLOT BLADE SUPPORT PLATES SCREWS FIG. -
Page 11: Installing The Light Kit
INSTALLING THE LIGHT KIT 1. Remove 1 of 3 screws from the light mounting plate and loosen the other 2 screws. (do not remove) 2. Raise and hold the light kit close to the light mounting plate and proceed to do the wire connections. Connect the white wire connectors from the light kit and fan, follow the same procedure with the black wire connector from the fan and the black wire connector from the light kit. -
Page 12: Installing The Light Bulb & Glass Shade
INSTALLING THE LIGHT BULBS & GLASS SHADE WARNING: Shut off the power supply before removing or replacing lamp. In handling of halogen bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint-free, cotton cloth. -
Page 13: Operating The Remote Control
OPERATING THE REMOTE CONTROL Remote Control only: Install a A23 12 volt battery (included). (Fig. 19) To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. HI, MED, LOW buttons: Sets the fan speed. OFF button: Turns the fan off. -
Page 14: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 1. Because of the fan's natural movement some connections may become loose. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from the ceiling). -
Page 15: Troubleshooting
TROUBLESHOOTING SYMPTOM SOLUTION Fan will not start Check to make sure the wall switch is turned on. Check circuit fuses or breakers. Caution! Make sure the power is turned off before performing the following steps. Remove canopy and check wire connections. Check wall control transmitter connections (if applicable). -
Page 16: Specifications
High These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the light(s). For any additional information about your Aire Ceiling fan, please write to: 1151 W. Bradford Court, Corona, CA 92882...
