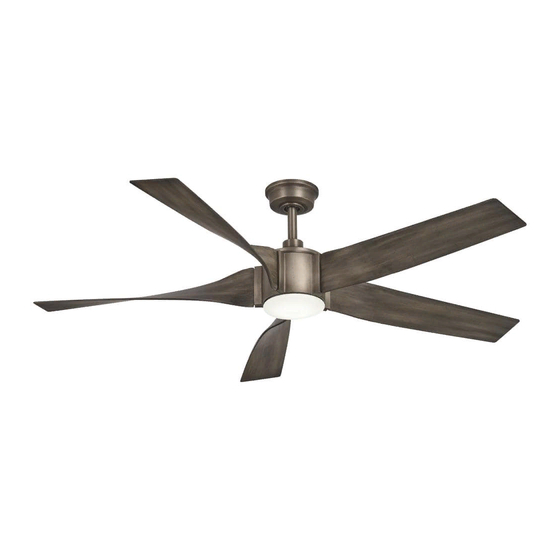

Aire Sky Parlor Instruction Manual
  1. Manuals
  2. Brands
  3. Aire Manuals
  4. Fan
  5. Sky Parlor
  6. Instruction manual

Aire Sky Parlor Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Sky Parlor
READ AND SAVE ALL INSTRUCTIONS
INSTRUCTION MANUAL WARRANTY CERTIFICATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sky Parlor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aire Sky Parlor

Summary of Contents for Aire Sky Parlor

  • Page 1 Sky Parlor READ AND SAVE ALL INSTRUCTIONS INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws. 1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267...

  • Page 3: Table Of Contents

    WARRANTY The Aire warranty is for one (1) year from the date of purchase from an authorized Aire dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year.

  • Page 4: Safety Rules

    SAFETY RULES 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.

  • Page 5: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blades (5) 13. 12V MN21/A23 battery 14. Balancing kit 2. Blade holders (5 ) 3. Hanger bracket Mounting hardware: 4. Canopy #10 x 1.5" Wood screws (2 PCs.) 5.

  • Page 6: Installing The Fan

    Note: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling. Longer downrods are available from your Aire dealer. To hang your fan where there is an existing fixture but no ceiling joist, you may need to install a hanger bar as shown in Fig.

  • Page 7: Hanging The Fan

    The use of other parts, hardware or components not supplied by Aire with the fan will void the Aire Warranty. REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Step 1.

  • Page 8: Electrical Connections

    Transmitter units have been preset at the factory. (Fig. 11) No frequency change is necessary, should you desire to install another Minka Aire DC motor fan within the same home or area with a separate frequency code please see the "frequency interference"...

  • Page 9: Finishing The Installation

    FINISHING THE INSTALLATION Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes.

  • Page 10: Attaching The Fan Blades

    ATTACHING THE FAN BLADES Step 1. Attach the fan blades to the blade holders using the screws and fiber washers provided, tighten screws and fiber washers securely. Repeat process with other blades. (Fig. 14) Step 2. Align motor holes to blade holders and secure with screws and lock washers provided, tighten screws securely. Repeat process with other blades.

  • Page 11: Installing The Light Kit

    INSTALLING THE LED LIGHT KIT NOTE: Before starting installation, make sure power is turned off at the circuit breaker. CAUTION: The light source is designed for this specific application and can overheat if serviced by untrained personnel. If any servicing is required, the product should be returned to an authorized service facility for examination or repair.

  • Page 12: Installing The Glass Shade

    INSTALLING THE GLASS SHADE Raise glass shade up against mounting plate and secure it to the fan by turning the glass shade clockwise until snug. DO NOT OVERTIGHTEN. (Fig. 18) GLASS SHADE FIG. 18...

  • Page 13: Operating The Remote Control

    OPERATING THE REMOTE CONTROL Remote Control only: Install an A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. IMPORTANT: THIS REMOTE CONTROL & DC FAN MOTOR ARE DESIGNED TO PERFORM A ONE TIME SELF CALIBRATION TEST.
  • Page 14 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. The reverse switch is located on the top of the motor housing. Slide the switch to the left for warm weather operation. Slide the switch to the right for cool weather operation.

  • Page 15: Care Of Your Fan

    CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 1. Because of the fan's natural movement some connections may become loose. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from the ceiling).

  • Page 16: Troubleshooting

    TROUBLESHOOTING SYMPTOM SOLUTION Fan will not start Check to make sure the wall switch is turned on. Check circuit fuses or breakers. Caution! Make sure the power is turned off before performing the following steps. Remove canopy and check wire connections. Check wall control transmitter connections (if applicable).

  • Page 17: Specifications

    Airflow Shown Is a Weighted Average of High and Low Cubic Feet per Minute Based on Downrod For any additional information about your Aire Ceiling fan, please write to: 1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267...
