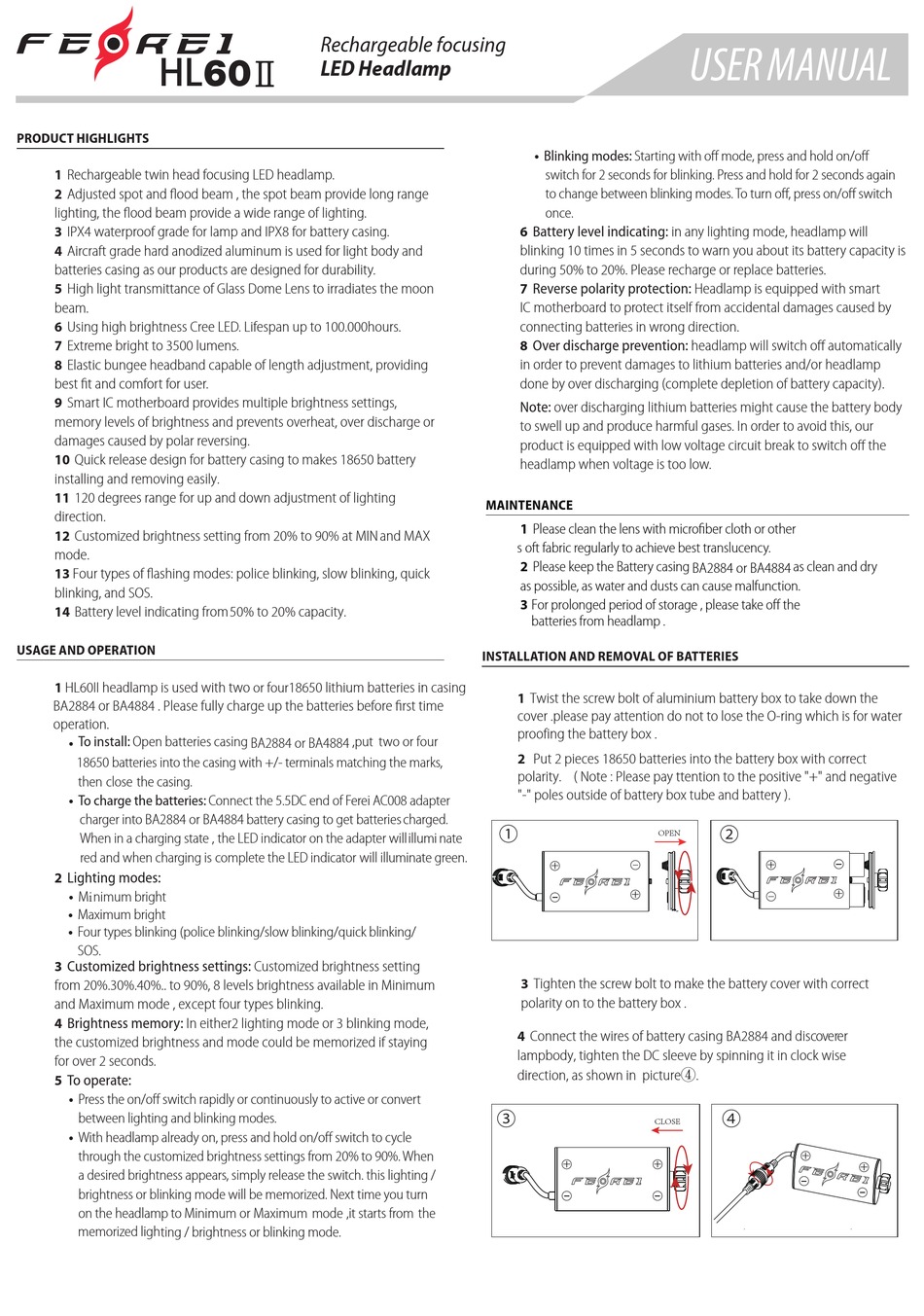

Ferei HL60II User Manual

HL60
PRODUCT HIGHLIGHTS
1 Rechargeable twin head focusing LED headlamp.
2
Adjusted spot and flood beam , the spot beam provide long range
lighting, the flood beam provide a wide range of lighting.
3
IPX4 waterproof grade for lamp and IPX8 for battery casing.
4 Aircraft grade hard anodized aluminum is used for light body and
batteries casing as our products are designed for durability.
5 High light transmittance of Glass Dome Lens to irradiates the moon
beam.
6 Using high brightness Cree LED. Lifespan up to 100.000hours.
7
Extreme bright to 3500 lumens.
8 Elastic bungee headband capable of length adjustment, providing
best fit and comfort for user.
9
Smart IC motherboard provides multiple brightness settings,
memory levels of brightness and prevents overheat, over discharge or
damages caused by polar reversing.
10 Quick release design for battery casing to makes 18650 battery
installing and removing easily.
11 120 degrees range for up and down adjustment of lighting
direction.
12 Customized brightness setting from 20% to 90% at MIN and MAX
mode.
13 Four types of flashing modes: police blinking, slow blinking, quick
blinking, and SOS.
14
Battery level indicating from 50% to 20% capacity.
USAGE AND OPERATION
1 HL60II headlamp is used with two or four 18650 lithium batteries in casing
BA2884 or BA4884 . Please fully charge up the batteries before first time
operation.
To install: Open batteries casing BA2884 or BA4884 ,put two or four
•
18650 batteries into the casing with +/- terminals matching the marks,
then close the casing.
•
To charge the batteries: Connect the 5.5DC end of Ferei AC008 adapter
charger into BA2884 or BA4884 battery casing to get batteries charged.
When in a charging state , the LED indicator on the adapter willillumi nate
red and when charging is complete the LED indicator will illuminate green.
2 Lighting modes:
•
Minimum bright
•
Maximum bright
•
Four types blinking (police blinking/slow blinking/quick blinking/
SOS.
3 Customized brightness settings: Customized brightness setting
from 20%.30%.40%.. to 90%, 8 levels brightness available in Minimum
and Maximum mode , except four types blinking.
4
Brightness memory: In either2 lighting mode or 3 blinking mode,
the customized brightness and mode could be memorized if staying
for over 2 seconds.
5 To operate:
•
Press the on/off switch rapidly or continuously to active or convert
between lighting and blinking modes.
•
With headlamp already on, press and hold on/off switch to cycle
through the customized brightness settings from 20% to 90%. When
a desired brightness appears, simply release the switch. this lighting /
brightness or blinking mode will be memorized. Next time you turn
on the headlamp to Minimum or Maximum mode ,it starts from the
memorized lighting / brightness or blinking mode.
Rechargeable focusing
Ⅱ
LED Headlamp
•
Blinking modes: Starting with off mode, press and hold on/off
switch for 2 seconds for blinking. Press and hold for 2 seconds again
to change between blinking modes. To turn off, press on/off switch
once.
6 Battery level indicating: in any lighting mode, headlamp will
blinking 10 times in 5 seconds to warn you about its battery capacity is
during 50% to 20%. Please recharge or replace batteries.
7 Reverse polarity protection: Headlamp is equipped with smart
IC motherboard to protect itself from accidental damages caused by
connecting batteries in wrong direction.
8
Over discharge prevention: headlamp will switch off automatically
in order to prevent damages to lithium batteries and/or headlamp
done by over discharging (complete depletion of battery capacity).
Note: over discharging lithium batteries might cause the battery body
to swell up and produce harmful gases. In order to avoid this, our
product is equipped with low voltage circuit break to switch off the
headlamp when voltage is too low.
MAINTENANCE
1
Please clean the lens with microfiber cloth or other
s oft fabric regularly to achieve best translucency.
2
Please keep the Battery casing BA2884 or BA4884 as clean and dry
as possible, as water and dusts can cause malfunction.
3 For prolonged period of storage , please take off the
batteries from headlamp .
INSTALLATION AND REMOVAL OF BATTERIES
1 Twist the screw bolt of aluminium battery box to take down the
cover .please pay attention do not to lose the O-ring which is for water
proofing the battery box .
2
Put 2 pieces 18650 batteries into the battery box with correct
polarity. ( Note : Please pay ttention to the positive "+" and negative
"-" poles outside of battery box tube and battery ).
3 Tighten the screw bolt to make the battery cover with correct
polarity on to the battery box .
4 Connect the wires of battery casing BA2884 and disc o v er er
lampbody, tighten the DC sleeve by spinning it in clock wise
direction, as shown in picture④.
CLOSE
USER MANUAL
OPEN
