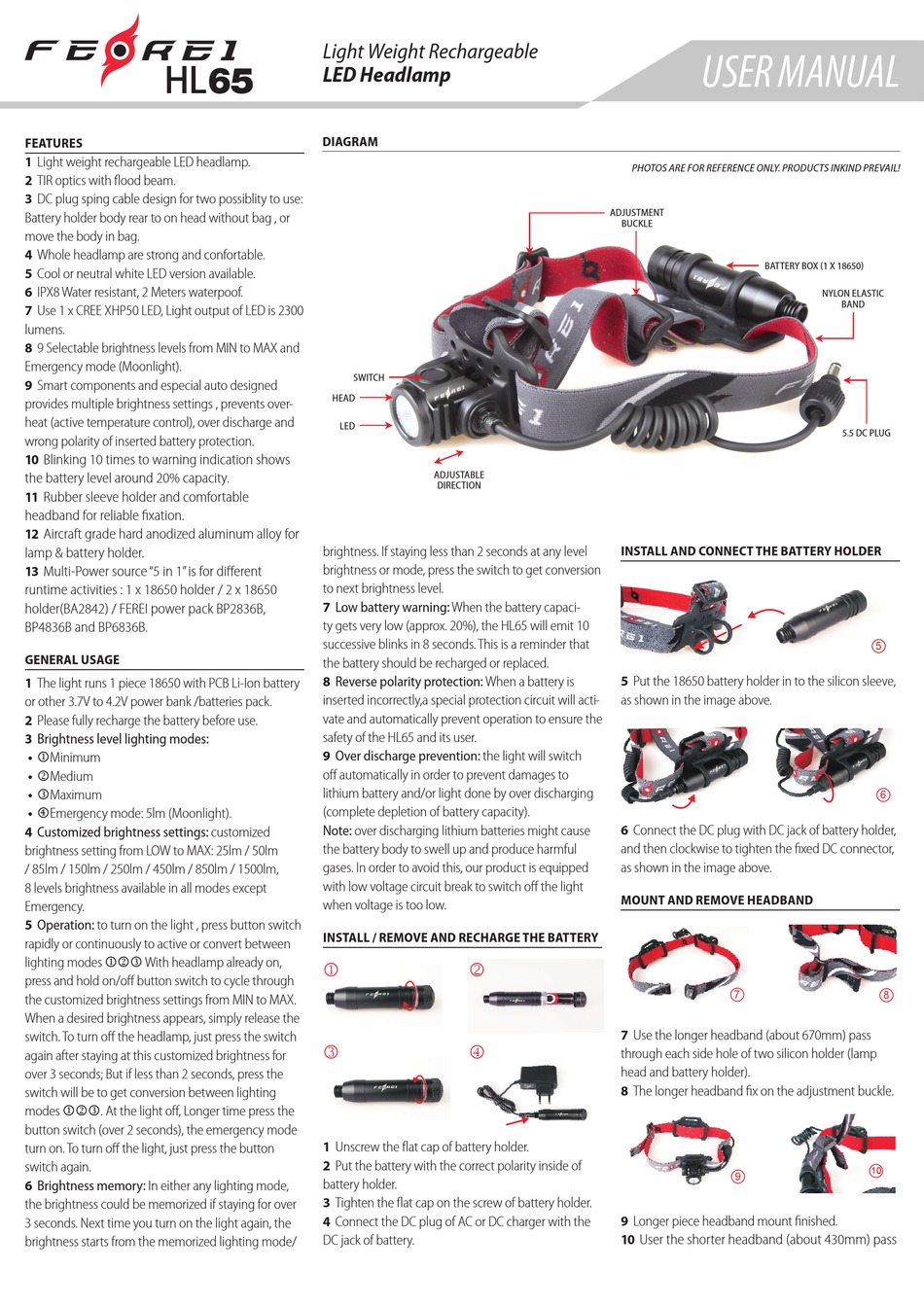

Ferei HL65 User Manual

HL65
FEATURES
1 Light weight rechargeable LED headlamp.
2 TIR optics with flood beam.
DC plug sping cable design for two possiblity to use:
3
Battery holder body rear to on head without bag , or
move the body in bag.
4 Whole headlamp are strong and confortable.
5 Cool or neutral white LED version available.
6 IPX8 Water resistant, 2 Meters waterpoof.
Use 1 x CREE XHP50 LED, Light output of LED is 2300
7
lumens.
9 Selectable brightness levels from MIN to MAX and
8
Emergency mode (Moonlight).
9 Smart components and especial auto designed
provides multiple brightness settings , prevents over-
heat (active temperature control), over discharge and
wrong polarity of inserted battery protection.
Blinking 10 times to warning indication shows
10
the battery level around 20% capacity.
Rubber sleeve holder and comfortable
11
headband for reliable fixation.
12 Aircraft grade hard anodized aluminum alloy for
lamp & battery holder.
Multi-Power source "5 in 1" is for different
13
runtime activities : 1 x 18650 holder / 2 x 18650
holder(BA2842) / FEREI power pack BP2836B,
BP4836B and BP6836B.
GENERAL USAGE
The light runs 1 piece 18650 with PCB Li-Ion battery
1
or other 3.7V to 4.2V power bank /batteries pack.
Please fully recharge the battery before use.
2
3 Brightness level lighting modes:
• Minimum
• Medium
•
Maximum
Emergency mode: 5lm (Moonlight).
•
Customized brightness settings: customized
4
brightness setting from LOW to MAX: 25lm / 50lm
/ 85lm / 150lm / 250lm / 450lm / 850lm / 1500lm,
8 levels brightness available in all modes except
Emergency.
Operation: to turn on the light , press button switch
5
rapidly or continuously to active or convert between
lighting modes  With headlamp already on,
press and hold on/off button switch to cycle through
the customized brightness settings from MIN to MAX.
When a desired brightness appears, simply release the
switch. To turn off the headlamp, just press the switch
again after staying at this customized brightness for
over 3 seconds; But if less than 2 seconds, press the
switch will be to get conversion between lighting
modes . At the light off, Longer time press the
button switch (over 2 seconds), the emergency mode
turn on. To turn off the light, just press the button
switch again.
Brightness memory: In either any lighting mode,
6
the brightness could be memorized if staying for over
3 seconds. Next time you turn on the light again, the
brightness starts from the memorized lighting mode/
Light Weight Rechargeable
LED Headlamp
DIAGRAM
SWITCH
HEAD
LED
ADJUSTABLE
DIRECTION
brightness. If staying less than 2 seconds at any level
brightness or mode, press the switch to get conversion
to next brightness level.
7 Low battery warning: When the battery capaci-
ty gets very low (approx. 20%), the HL65 will emit 10
successive blinks in 8 seconds. This is a reminder that
the battery should be recharged or replaced.
8 Reverse polarity protection: When a battery is
inserted incorrectly,a special protection circuit will acti-
vate and automatically prevent operation to ensure the
safety of the HL65 and its user.
Over discharge prevention: the light will switch
9
off automatically in order to prevent damages to
lithium battery and/or light done by over discharging
(complete depletion of battery capacity).
Note: over discharging lithium batteries might cause
the battery body to swell up and produce harmful
gases. In order to avoid this, our product is equipped
with low voltage circuit break to switch off the light
when voltage is too low.
INSTALL / REMOVE AND RECHARGE THE BATTERY
 
 
Unscrew the flat cap of battery holder.
1
2 Put the battery with the correct polarity inside of
battery holder.
3 Tighten the flat cap on the screw of battery holder.
4 Connect the DC plug of AC or DC charger with the
DC jack of battery.
USER MANUAL
PHOTOS ARE FOR REFERENCE ONLY. PRODUCTS INKIND PREVAIL!
ADJUSTMENT
BUCKLE
BATTERY BOX 1 X 18650
INSTALL AND CONNECT THE BATTERY HOLDER
Put the 18650 battery holder in to the silicon sleeve,
5
as shown in the image above.
6 Connect the DC plug with DC jack of battery holder,
and then clockwise to tighten the fixed DC connector,
as shown in the image above.
MOUNT AND REMOVE HEADBAND
7
Use the longer headband (about 670mm) pass
7
through each side hole of two silicon holder (lamp
head and battery holder).
8 The longer headband fix on the adjustment buckle.
9
9 Longer piece headband mount finished.
10 User the shorter headband (about 430mm) pass
NYLON ELASTIC
BAND
5.5 DC PLUG
5
6
8
10
