Summary of Contents for Rosslare AY-S55

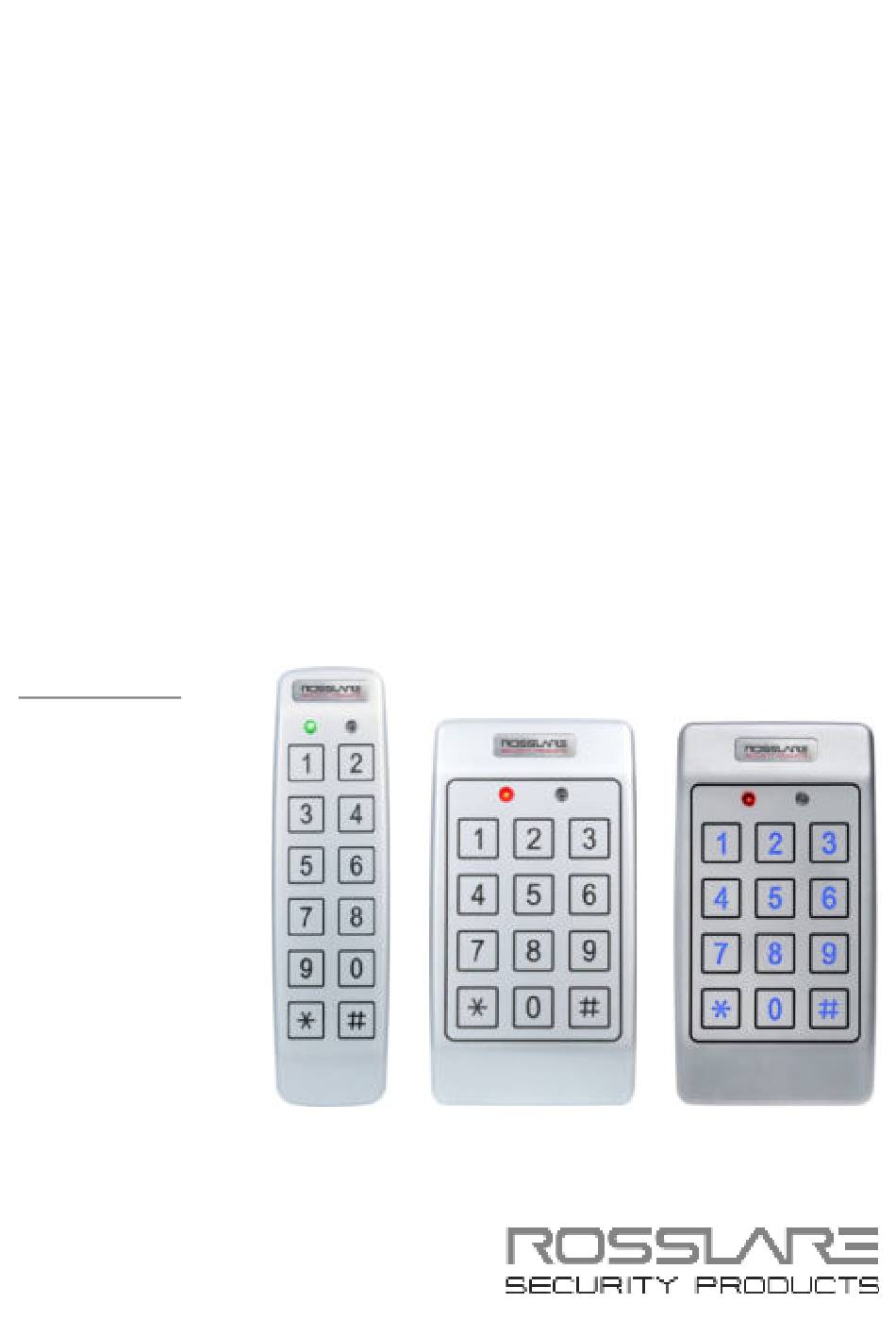

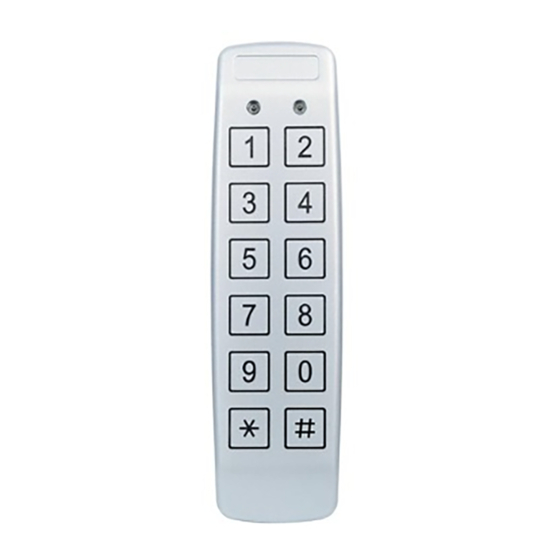

- Page 1 AY-x55 Anti-Vandal Piezoelectric PIN Reader Installation and Programming Manual Models: AY-S55 AY-T55 AY-T55B AY-S55 AY-T55 AY-T55B...
- Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction ..............7 Key Features ................7 Box Content ................7 Ancillary Equipment ..............8 Technical Specifications ..........9 Installation ..............10 Mounting Instructions ............10 Wiring Instructions ..............11 Functionality ............. 12 Transmit Mode ..............12 Programming the AY-x55 ............ - Page 4 List of Figures List of Figures Figure 1: Drilling Mounting Holes ..............10 AY-x55 Family Installation and Programming Manual...
- Page 5 List of Tables List of Tables Table 1: Wiring Colors ..................11 Table 2: Reader Programming Menus .............. 13 Table 3: Keypad Transmission Format Option Number ........15 AY-x55 Family Installation and Programming Manual...
- Page 6 ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...
-
Page 7: Introduction
Introduction Introduction The AY-x55 Family is a series is a vandal resistant programmable piezoelectric reader family that includes the AY-S55, AY-T55 and AY- T55B models. The AY-x55 supports multiple keypad formats providing a high level of compatibility and connectivity with host controllers. The keypad can be programmed to output eight different data formats. -
Page 8: Ancillary Equipment
Ancillary Equipment The following equipment is required to complete your installation: Compatible host controller Power supply – 5 to 16 VDC (from a regulated power supply) Rosslare accessories can be found on www.rosslaresecurity.com. AY-x55 Family Installation and Programming Manual... -
Page 9: Technical Specifications
Technical Specifications Technical Specifications Electrical Characteristics AY-S55 AY-T55 AY-T55B Power Supply Linear type (recommended) 5 to 16 VDC Voltage Range Standby: 30 mA Standby: 30 mA Standby: 90 mA Input Current Max: 120 mA Max: 120 mA Max: 180 mA Open collector, active low, max. -
Page 10: Installation
This is the tamper lens. AY-T55 AY-S55 2. Route the interface cable from the reader to the controller (see Section 3.2). A linear type power supply is recommended. 3. Screw the AY-x55 back cover to its mounting location. -
Page 11: Wiring Instructions
Installation 5. Secure the front cover by using the supplied security screw in the installation kit. An L-shaped tool is provided for use when tightening the security screw. Wiring Instructions The reader is supplied with a 41-cm (16”) pigtail, having a 6- conductor cable. -
Page 12: Functionality
Functionality Functionality This chapter explains how the functionality of the reader. Transmit Mode When the AY-x55 is in Transmit mode, it is ready to receive data from a presented proximity card or from an entered PIN code. When the reader is in Transmit mode, Mode/Transmit Door/Program the Transmit LED is red and the... -
Page 13: Entering Programming Mode
Table 2: Reader Programming Menus Menu Description Default Selecting Keypad Transmission Format Single Key, Wiegand 6-Bit (Rosslare Format) Single Key, Wiegand 6-Bit with Nibble + Parity Bits Single Key, Wiegand 8-Bit, Nibbles Complemented 4 Keys Binary + Facility Code, Wiegand 26-Bit... -
Page 14: Exiting Programming Mode
Functionality If the Programming code is valid, the Transmit Program door LED turns green and the unit Green enters Programming mode. • The factory 4-digit Programming code is 1234. • If a Programming code is not entered within 30 seconds, the unit returns to Transmit mode 4.2.2 Exiting Programming Mode... - Page 15 Table 3: Keypad Transmission Format Option Number Keypad Transmission Format Option Number Single Key, Wiegand 6-Bit (Rosslare Format) Single Key, Wiegand 6-Bit with Nibble + Parity Bits Single Key, Wiegand 8-Bit, Nibbles Complemented 4 Keys Binary + Facility Code, Wiegand 26-Bit...
-
Page 16: Single Key, Wiegand 6-Bit (Rosslare Format)
More information on each of the different keypad transmission formats is available on the following pages. Option 1: Single Key, Wiegand 6-Bit (Rosslare Format) Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. -
Page 17: Keys Binary + Facility Code, Wiegand 26-Bit
Functionality 0 = 11110000 6 = 10010110 1 = 11100001 7 = 10000111 2 = 11010010 8 = 01111000 3 = 11000011 9 = 01101001 = 01011010 = "A" in Hexadecimal 4 = 10110100 5 = 10100101 # = 01001011 = "B" in Hexadecimal Option 4: 4 Keys Binary + Facility Code, Wiegand 26-Bit This option buffers 4 keys and outputs keypad data with a 3-digit Facility code like a standard 26-Bit card output. -
Page 18: Keys Bcd And Parity Bits, Wiegand 26-Bit
Functionality The Facility code is set in Programming Menu number four and can be in the range 000 to 255. The factory default setting for the Facility code is 000 (see Section 4.2.5). The keypad PIN code can be one to five digits in length and can range between 1 and 65,535. -
Page 19: Single Key, 3X4 Matrix Keypad
Functionality buffer, generates a medium length beep and is ready to receive a new 6-digit keypad PIN code. (EP) AAAA BBBB CCCC DDDD EEEE FFFF (OP) Where: EP = Even parity for first 12 bits OP = Odd parity for last 12 bits A = The first key entered D = Fourth key entered B = Second key entered... -
Page 20: Changing The Programming Code
Functionality Option 8: 1 to 8 Keys BCD, Clock & Data Buffers up to 8 keys and outputs keypad data without a Facility code like standard Clock and Data card output. The keypad PIN code can be one to eight digits in length. The PIN code length is selected while programming the reader for Option 8. -
Page 21: Changing The Facility Code
Functionality • The Programming code cannot be erased, meaning the code 0000 is invalid and does not erase the Programming code. • The factory default 4-digit Programming code is 1234. 4.2.5 Changing the Facility Code 1. Enter Programming mode. Transmit Program Green 2. -
Page 22: Return To Factory Default Settings
Functionality 0 for always off 1 for always on 2 for 10 sec. backlight after a key is pressed otherwise off 3 for 10 sec. backlight after a key is pressed otherwise dimmed The system returns to Transmit mode. ... -
Page 23: Replacing A Lost Programming Code
Functionality Replacing a Lost Programming Code In the event that the Programming code is forgotten, the AY-x55 can be reprogrammed in the field using the following instructions: 1. Remove power from the reader. 2. Activate tamper by removing the reader from the wall or removing the reader's case. -
Page 24: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AY-x55 Family Installation and Programming Manual... - Page 25 Canada Fax: +86 755 8610 6101 Rosslare Security Products, Inc. support.cn@rosslaresecurity.com Southlake, TX, USA Toll Free: +1-866-632-1101 India Local: +1-817-305-0006 Rosslare Electronics India Pvt Ltd. Fax: +1-817-305-0069 Tel/Fax: +91 20 40147830 support.na@rosslaresecurity.com Mobile: +91 9975768824 sales.in@rosslaresecurity.com Europe Rosslare Israel Ltd.
