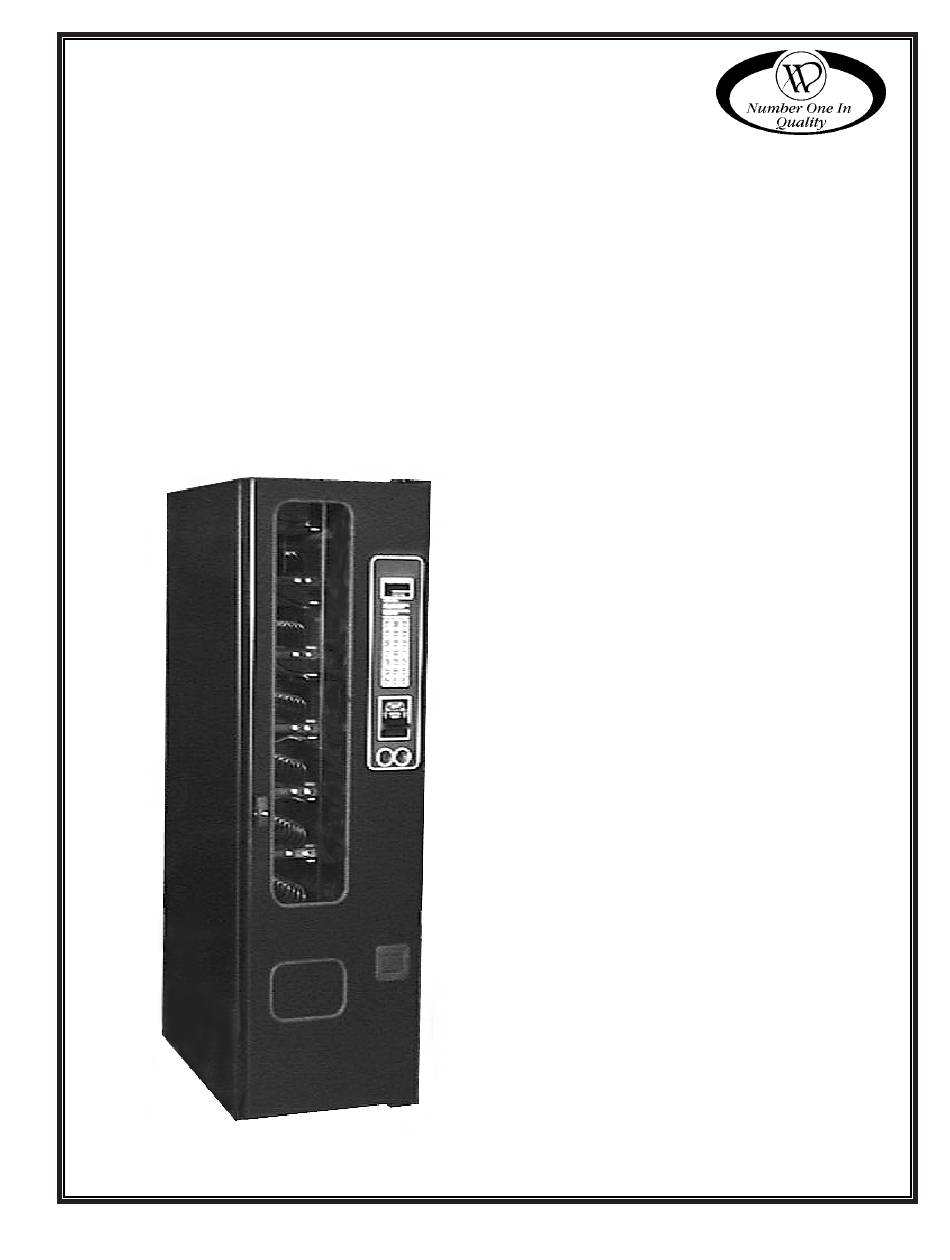

- Page 1 GLASS FRONT MERCHANDISER Covers Models: 3120 – GF12 II 3120A – EC14 3132 – GF19 II 3141 – GF35 II SERVICE MANUAL A10487 December 1998 P/N 4209514 Rev. C...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Displayed Errors ........7 INTRODUCTION .......... 1 Programming the Controller ....8 SPECIFICATIONS........2 COIN MECHANISM ........11 Cabinet Inches Metric....... 2 Option Switch Setting.......11 Glass ............2 Electrical............ 2 DOLLAR BILL VALIDATOR.......12 Capacity ............ 2 Removing Accepted Bills ......13 Pricing ............ -
Page 3: Introduction
The vending sequence is "first-in, first-out" for VendNet™ each selection, eliminating the need for stock P. O. Box 488 165 North 10th Street rotation to maintain fresh products in the vend Waukee, IA 50263-0488 area. -
Page 4: Specifications
SPECIFICATIONS UNPACKING & INSTALLATION To minimize installation time and to avoid Cabinet Inches Metric service problems due to improper installation, follow the instructions outlined in this manual. Height 173 cm This machine has been thoroughly inspected Depth GF12 II 33 1/2 87 cm before leaving the factory. -
Page 5: Grounding & Electrical
Figure 1B. Testing 115V Outlet LOADING PRODUCTS To load products, lift the tray slightly and pull forward until the tray stops. The upper-most Figure 1. Removing the Knock-A-Way Skid Boards trays of the GF19 II and the GF35 II tilt for ease of loading. -
Page 6: Changing Tray Configuration And Retiming
5. Lift up on the rear of the tray and remove it CHANGING TRAY from the vendor. CONFIGURATION AND To replace a tray in the vendor: RETIMING 6. GF19 II and GF35 II: Place the back of the tray on the rails by placing its rear rollers on Removing and Replacing Trays the left and right rails and lifting up on the To remove a tray from the vendor:... -
Page 7: Retiming Gf12 Ii
Retiming GF12 II 1. Remove the tray from the vendor. GF12 II can be retimed. 2. Pull hair pin clip holding auger to motor hub. 1. Remove the tray from the vendor as 3. Rotate auger 180º. previously described. 4. Replace hair pin clip through the auger and 2. -
Page 8: Controller Functions
3. Slide the rail forward (for a snack tray) or CONTROLLER FUNCTIONS back (for a candy tray). Sales Mode The Sales Mode is the normal operating mode of the vendor. At the start of a sales cycle, 0.00 displays. If the coin tube level of the mechanism’s lowest denomination is below the lowest sensor, the “USE EXACT CHANGE”... -
Page 9: Service Mode
If credit is less than the selection price, the price flashes for three seconds or until a new selection key is pressed. If the motor is flagged as faulty, the selection number “MAKE ANOTHER SELECTION” LED flash for three seconds or until a new selection key is pressed. -
Page 10: Programming The Controller
For instance, if during a vend the controller Programming the Controller detected a motor switch failure, that selection To access the programming, enter the Service would be flagged as faulty and would be Mode, then choose from the following modes. disabled. - Page 11 Motor Count Mode Price Setting Mode The Motor Count Mode displays the total A vend price must be set for each selection. The number of functional motors configured within price programmed must match the desired item the machine. This number should equal the total and price scroll.
- Page 12 Test Vend Single Motor Mode Test Vend All Motors Mode All selections can be tested to verify that they are CAUTION: functioning properly. The controller will check Because this vendor utilizes DC motors, do the motor circuits and run each selection, starting not attempt to turn the helix manually or with the first motor in the first row.
-
Page 13: Coin Mechanism
Table 4. Vend Options Mode PRESS DISPLAYS TOGGLE DESCRIPTION PRESS Force Vend Option: Purchase necessary to receive change from a paper bill, overriding Fcry = On the "coin return" command. [ A ] [ A ] Fcrn = Off A purchase is not necessary to receive change for a bill insertion. Bill Escrow Option: Returns the bill to the customer when no vend is made and the coin Escy = On return button is pushed. -
Page 14: Dollar Bill Validator
Figure 9. Option Switches and Power Light Locate the coin mechanism option dip switches Figure 8. Coin Tube Location in Coin Mech. and select from the following settings: NOTE Table 6. Coin Mech Option Switches The bill validator operation of this vendor requires the “LO 25¢”... -
Page 15: Removing Accepted Bills
Table 7. Validator Option Switches SWITCH Standard High Security Acceptance Accepts bills in one Accepts bills in direction only (face both directions up, green seal first) (face up) Serial or Parallel Pulse interface Interface Accept $20 Reject $20 Accept $10 Reject $10 Accept $5 Reject $5... -
Page 16: Troubleshooting
CAUTION: Troubleshooting Do not use any petroleum based cleaning solvents, scouring pads or stiff brushes To troubleshoot, read the flashes or blinks of for cleaning. light from the red LED located on the side of the logic board cover. These flashes can be seen through the grey smoked cover. -
Page 17: Parts Ordering
If you have any questions, check out our Website http:\\www.vendnetusa.com NOTE NOTE NOTE NOTE or please call VendNet. When “Right” and “Left” are used with a Ask for the Parts Department. part name, it is taken to mean that the E-Mail: VendNet@vendnetusa.net person is facing the machine with the door closed. -
Page 18: Schematic - Gf12 Ii
SCHEMATIC – GF12 II P/N 4209903... -
Page 19: Schematic - Gf19 Ii
SCHEMATIC – GF19 II P/N 4209904... -
Page 20: Schematic - Gf35 Ii
SCHEMATIC – GF35 II P/N 4209617...
