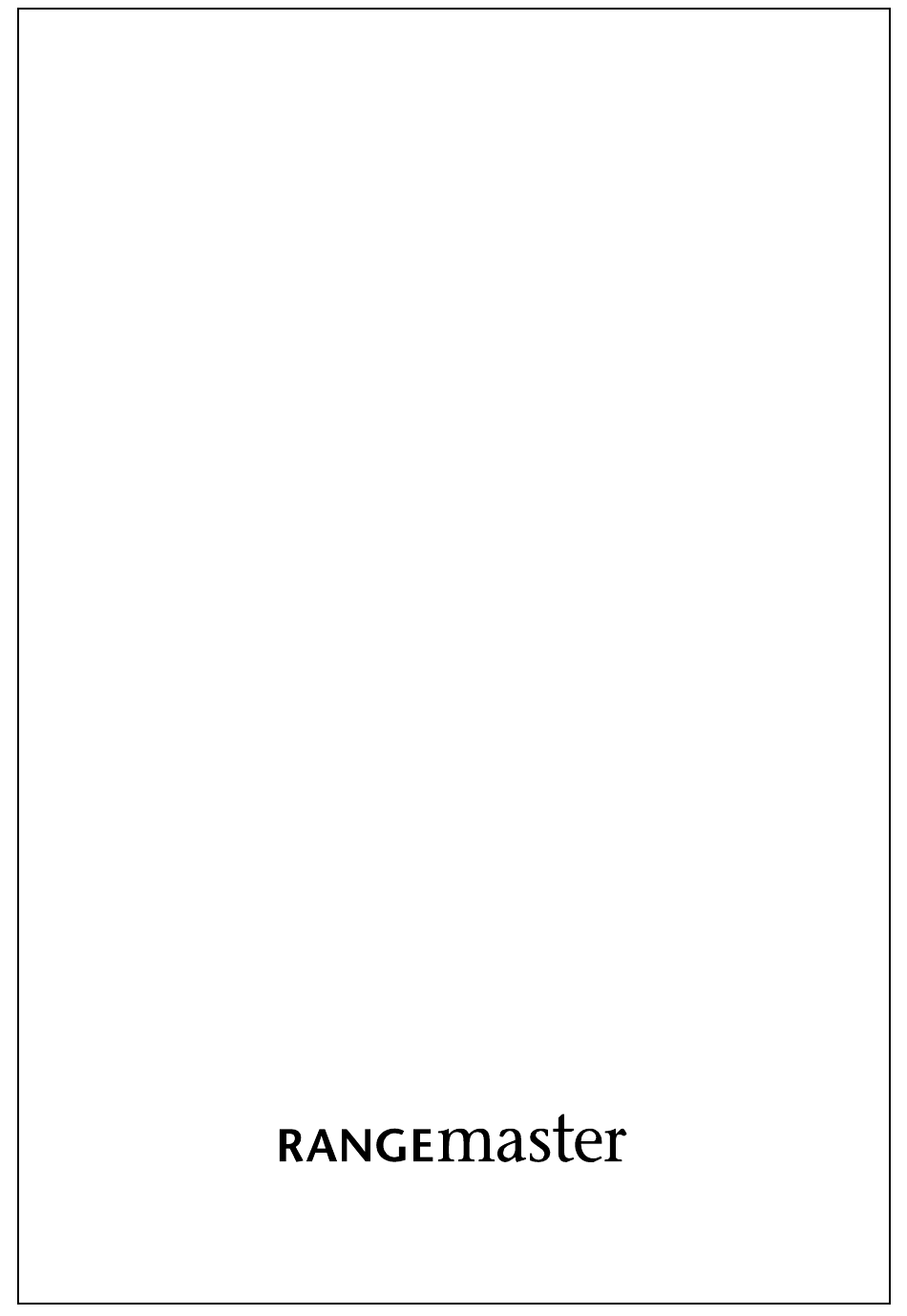

- Page 1 Fridge/Freezer RDXD21 User Guide & Installation & Service Instructions Due to our policy of continual improvement, we reserve the right to change specifications without prior notice. U111342 - 03A...
-
Page 3: Table Of Contents
Contents Before You Start Safety Electrical Safety UKCA / CE Declaration of conformity Disposal of your old appliance Packaging and the Environment About Your Refrigerator About the Fresh Food Compartment General Features of Your Appliance Using the appliance Shelves Accessories Ionizer / Range Fresh About the Freezer Compartment Using the Control Panel... -
Page 5: Before You Start
Before You Start Before you plug the appliance into the • Icon Type Meaning mains, clean the inside of the appliance WARNING Serious injury or death risk using warm water and bicarbonate of soda, RISK OF ELECTRIC then dry thoroughly. Dangerous voltage risk SHOCK Check that no parts of the appliance are... - Page 6 gas, but it is explosive. In the event Only use implements, which are fit for this of a leak due to damage of the cooler purpose (such as plastic scrapers) and use elements, move your appliance away carefully to avoid damaging the lining of from open flames or heat sources and the appliance.
-
Page 7: Electrical Safety
While carrying and positioning the appliance, Electrical Safety DO NOT damage the cooler gas circuit. WARNING: When positioning the appliance, ensure the supply cord is not DO NOT store explosive substances such as trapped or damaged. aerosol cans with a flammable propellant in this appliance. -
Page 8: Ukca / Ce Declaration Of Conformity
Avoid damage to the electric cable when Notes: • moving the appliance. Please read the instruction manual • carefully before installing and using your UKCA / CE Declaration of conformity appliance. We are not responsible for the We declare that our products meet the •... - Page 9 To avoid contamination of food, please During Usage respect the following instructions: Do not connect your fridge freezer to the • Opening the door for long periods mains electricity supply using an extension • can cause a significant increase of the lead.
-
Page 10: About Your Refrigerator
About Your Refrigerator Fig. 2.1 ArtNo.600-0004 - Refrigerator layout The refrigerator is shown in Fig. 2.1 and has the following Features include: features: • Touch Screen Electronic Display Fridge compartment • Even-circ™ Egg holder • Superior Internal Illumination (soft glow) Fridge compartment shelves •... -
Page 11: About The Fresh Food Compartment
About the Fresh Food Fig. 2.2 Compartment It is recommended to leave storage space between the foods for good cold air circulation. The temperatures in the refrigerator are slightly warmer near the top and colder near the base. Suggestions for storage (Fig. 2.2): Eggs, butter, cheese, etc. -
Page 12: Using The Appliance
11. The chiller door includes a self-closing function to avoid Fig. 2.4 slamming or being left open. 12. Anti-finger inox doors never leave finger prints thanks to a special sheet layer coated over the stainless door sheet. ArtNo.600-0001 - Dairy bin Using the appliance Information about New Generation Cooling Technology (Fig. -
Page 13: Accessories
Accessories Fig. 2.5 Chiller Breakfast Vegetable Bowl and Chiller (Breakfast) (Fig. 2.5) This compartment can be used as a chiller compartment, where food can be kept at 0°C. Frozen food can be kept in this compartment to defrost. Meat and/or clean fish (in plastic bags or packets), which will be consumed within 1 to 2 days, Crisper can also be stored here. -
Page 14: About The Freezer Compartment
About the Freezer Compartment Fig. 2.9 Ice trays (Fig. 2.9) Fill 3/4 the icebox with water and replace it. Ice will be ready after approximately 2 hours. Please note: When replacing the icebox after filling it with water, make sure it is positioned horizontally. If it is tilted, water inside the ice tray may spill onto the basket. -
Page 15: Using The Control Panel
Using the Control Panel Fig. 3.1 LCD Display LCD Display °c °c mode q drink s.saver sensor freezer cooler User Controls User controls Using the Control Panel Fridge compartment temperature indicator Freezer compartment temperature indicator qDrink alarm timer Economy mode Holiday mode qDrink light Night sensor indicator... -
Page 16: Operating Your Fridge Freezer
Operating Your Fridge Freezer NOTE: Disable screen safe mode. Step 1. Press the q drink to activate the mode. Touch Display Prevention (Safe Mode) The touch display is protected from accidental touch. To Flashes 4x Flashes 4x activate a feature, press any of the user controls for more than 2 seconds this will deactiviate the protection. - Page 17 Cancel qDrink mode Fig. 3.2, Fig. 3.3 Fig. 3.2 If you accidently pressed the q drink wait for the wine glass symbol to flash 4x. Press the q drink whilst the timer digits flashes. °c °c The timer digits and wine symbol will flash and then disappear.
- Page 18 Economy (eco) Fig. 3.6 Fig. 3.6 During periods of less frequent use (door opening) or absence from home, such as a weekend holiday, eco program can provide optimum temperature whilst saving power. °c °c In order to activate eco mode, press the [mode] button until mode q drink s.saver...
- Page 19 Child lock Child lock Fig. 3.8 Child lock can be activated to prevent any accidental or unintentional changes being made to the appliance settings. To activate (Fig. 3.8) the child lock, press and hold the cooler °c °c and freezer buttons simultaneously for 3 seconds. mode q drink s.saver...
- Page 20 Turn on Night sensor Fig. 3.11, Fig. 3.12 Fig. 3.11 Step 1. Press and hold the sensor for 3 seconds. This night sensor function saves energy by switching the lights inside the refrigerator off if there is sufficient illumination in the room. To activate follow the procedure below.
- Page 21 Food Storage • DO NOT put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods Refrigerator Compartment increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food. For normal operating conditions, set the temperature of the cooler compartment to +4 or +6 oC.
- Page 22 Freezer Compartment For normal operating conditions, set the temperature of the freezer compartment to -18 or -20 oC. • The freezer is used for storing frozen food, freezing fresh food, and making ice cubes. • For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn’t leak.
-
Page 23: Food Storage Table
Food Storage Table DocNo.031-0004 - Cooking table - electric & fan single cavity All storage times given in the table below are intended to be The storage time of food is dependent on the type of oil used as a guide only. Storage times of fruits and vegetables used. - Page 24 Maximum storage time Thawing time at room Thawing time in oven (minutes) (months) temperature (hours) Bread 4 - 6 2 - 3 4-5 (220-225 °C) Biscuits 3 - 6 1 - 1.5 5-8 (190-200 °C) Pastry 1 - 3 2 - 3 5-10 (200-225 °C) 1 - 1.5 3 - 4...
-
Page 25: Cleaning And Maintenance Defrosting
Cleaning and Maintenance Defrosting Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase Defrosting is done automatically so there is no need to productivity. manually defrost this appliance. Cleaning the evaporation bowl: DO NOT use mechanical devices to accelerate the defrosting process. -
Page 26: Troubleshooting
Troubleshooting Before calling for service, please first read the following table: this could save you time and money. Error type Meaning What to do “Failure” Warning There is/are some part(s) out of order or there Call a service agent for assistance as soon as is a failure in the cooling process. -
Page 27: Tips For Saving Energy
Drinks or other liquides should be covered when inside The doors are not opening or closing properly the appliance. If left uncovered, the humidity inside the Check if: appliance will increase, therefore the appliance uses • There is food or packaging preventing the door from more energy. -
Page 28: Installation
Installation During Usage Installation warnings • Do not connect your fridge freezer to the mains Before using your fridge freezer for the first time, please pay electricity supply using an extension lead. attention to the following points: • Do not use damaged, torn or old plugs. •... - Page 29 Disposal of your old appliance • The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
-
Page 30: Positioning Your Appliance
Positioning Your Appliance 100 mm Fig. 7.1 The refrigerator must be carried by at least 4 people. ArtNo.600-0034 - Clearances The original packaging and foam may be kept for re- 50 mm transportation (optional). Fasten your fridge with thick packaging, bands or strong cords and follow the instructions for transportation given on the package. -
Page 31: Electrical Supply Connection
Electrical Supply Connection Fig. 7.3 Connect the appliance to the electrical supply (220-240 V ~ 50 Hz) with the plug and lead, which are fitted. Connections to the mains supply should be in accordance with local regulations. DO NOT use plug adapter. The appliance must be plugged into an earthed socket. -
Page 32: Circuit Diagram
Circuit diagram ArtNo.095-0003 - Circuit diagram - 90 induction KAPI KOLU LEDI DOOR HANDLE LED SOGUTUCU LED1-4 REFRIGERATOR LED-4 DEFROST SENSOR DOOR SWITCH 4 DOOR SWITCH 3 DOOR SWITCH 2 COOLER SENSOR SOL KAPI ICI LEDI LEFT INDOOR LED DOOR SWITCH 1 COOLER EVAP SENSOR SAG KAPI ICI LEDI RIGHT INDOOR LED... -
Page 33: Technical Data
Technical Data INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Left-hand side of the refrigerator compartment. COUNTRY OF DESTINATION: GB, IE. Dimensions Depth with open door 1146 817.2 Depth including handles ArtNo.600-0044 - DxD dimensions 1850 1064 1156.4 140°... - Page 34 EN - PRODUCT INFORMATION SHEET Supplier’s name or trade mark: RANGEMASTER Aga Rangemaster Supplier’s address: Clarence St, Leamington Spa, Warwickshire CV31 2AD England Model identifier: RDXD21SS/C Type of refrigerating appliance: Low-noise appliance: Design type: Freestanding Wine storage appliance: Other refrigerating appliance:...
- Page 35 EN - PRODUCT INFORMATION SHEET Supplier’s name or trade mark: RANGEMASTER Aga Rangemaster Supplier’s address: Clarence St, Leamington Spa, Warwickshire CV31 2AD England Model identifier: RDXD21IV/C Type of refrigerating appliance: Low-noise appliance: Design type: Freestanding Wine storage appliance: Other refrigerating appliance:...
- Page 36 EN - PRODUCT INFORMATION SHEET Supplier’s name or trade mark: RANGEMASTER Aga Rangemaster Supplier’s address: Clarence St, Leamington Spa, Warwickshire CV31 2AD England Model identifier: RDXD21BL/C Type of refrigerating appliance: Low-noise appliance: Design type: Freestanding Wine storage appliance: Other refrigerating appliance:...
- Page 37 EN - PRODUCT INFORMATION SHEET Supplier’s name or trade mark: RANGEMASTER Aga Rangemaster Supplier’s address: Clarence St, Leamington Spa, Warwickshire CV31 2AD England RDXD21DI/C Model identifier: Type of refrigerating appliance: Low-noise appliance: Design type: Freestanding Wine storage appliance: Other refrigerating appliance:...
-
Page 38: 10. Warranty/After Sales Service
Any cosmetic damage to the appliance must be reported within 30 days of delivery. Please note that AGA Rangemaster Limited have appointed Pacifica to administer in warranty repairs on our behalf. If you make a request for an in warranty repair, your details will be... - Page 40 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England.
